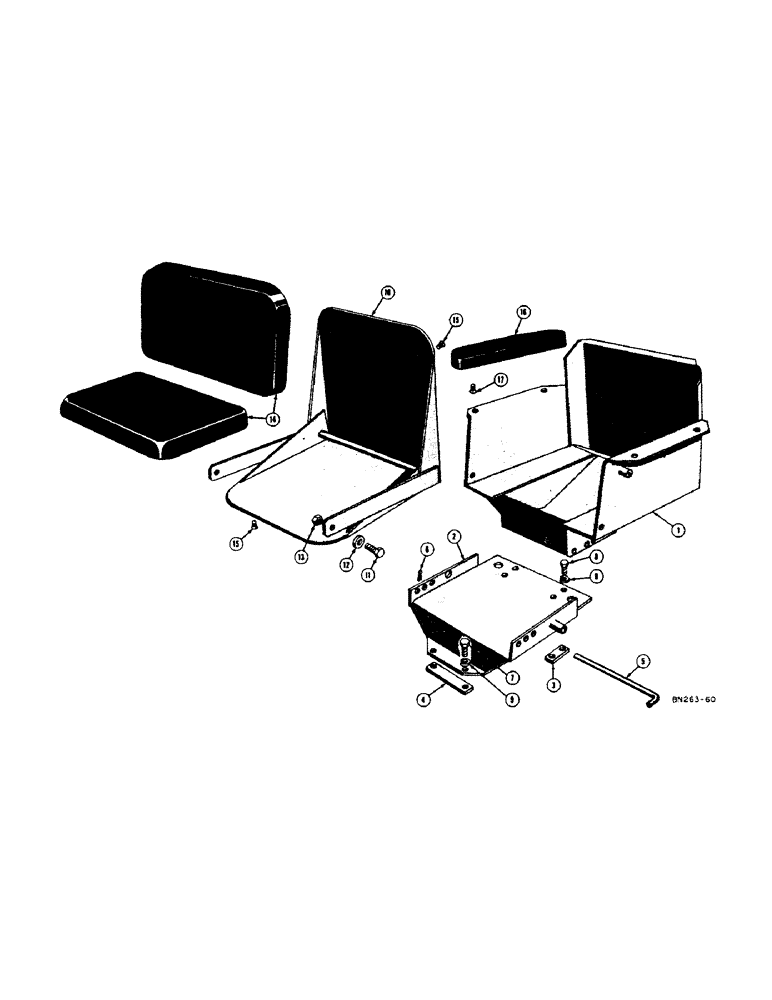

Запчасти Case 320 (08) - SEAT (WHEEL TRACTOR) (00) - COMPLETE MACHINE

1

36061

SEAT - tractor

1шт.

2

D21911

BRACKET - mounting, seat (Includes lock)

1шт.

3

D20072

SPACER - mounting bracket, rear (If used)

2шт.

4

D20080

SPACER - mounting bracket, front (If used)

1шт.

5

36047

PIN - adjusting, seat

1шт.

6

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(If used) Hex, 3/8"-16 x 1 3/4", G5

2шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4-6шт.

9

92-6

LOCK WASHER,3/8"

6шт.

10

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

FRAME - seat

1шт.

11

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2-20 NF x 1-1/4

2шт.

12

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.

13

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock, hex. (1/2-20 NF)

2шт.

14

36112

CUSHION - seat

2шт.

15

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

FHMS - 1/4-20 NC x 3/4

8шт.

16

D20853

CUSHION - arm rest

2шт.

17

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

FHMS - 1/4-20 NC x 3/4

4шт.
