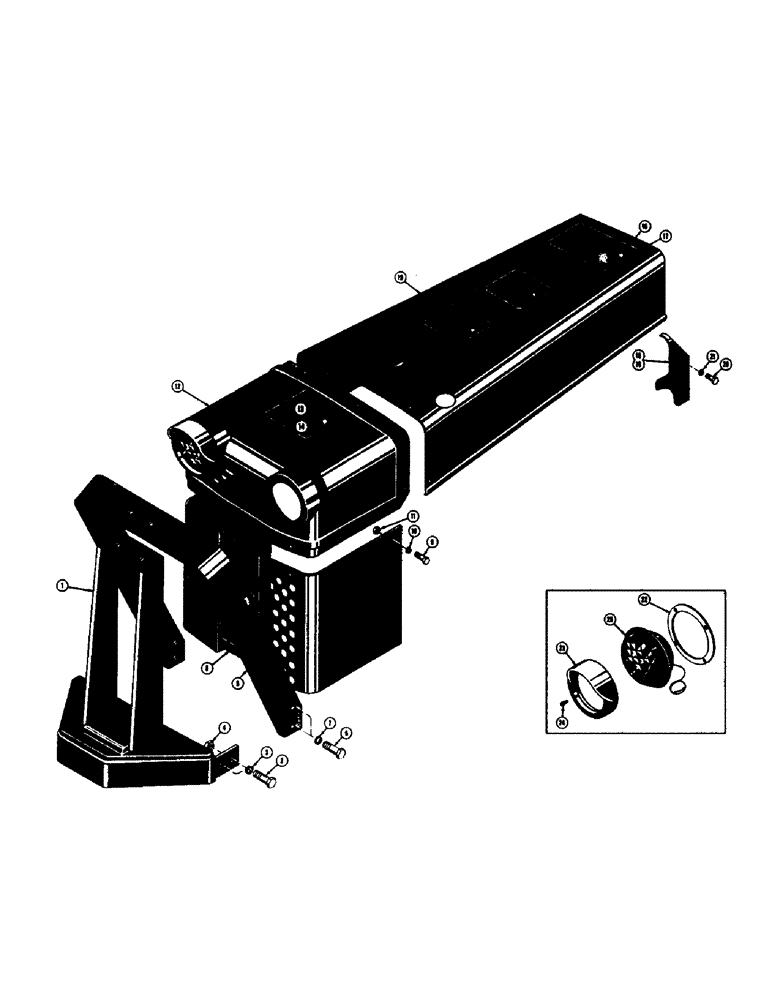

Запчасти Case 320 (04) - RADIATOR GUARD AND ENGINE HOOD (WHEEL TRACTOR) (00) - COMPLETE MACHINE

1

36247

PIN

BUMPER - front

1шт.

2

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

HHCS - 5/8-18 NF x 1-1/2

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8-18 NF)

4шт.

5

36476

PLATE - rub, radiator guard

1шт.

6

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

36453

HOOK

GRILLE - radiator

1шт.

9

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

4шт.

12

36500

STEERING AXLE

SHROUD - front (Gas model only)

1шт.

14

36459

SPARE PART

WASHER - shroud screw

2шт.

12

D20084

SHROUD - front (Diesel model only)

1шт.

14

36459

SPARE PART

WASHER - shroud screw

2шт.

15

36489

HOOD - engine (6 volt gas models only) Use 37492

1шт.

*

37492

HOOD - engine (Original equipment on 12 volt gas models)

1шт.

*

D20073

HOOD - engine (Diesel models only)

1шт.

17

36459

SPARE PART

WASHER - doors

3шт.

18

36436

SPACER

PLATE - filler, R.H.

1шт.

19

36437

PLATE - filler, L.H.

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

NLS

NO LONGER SERVICED

GASKET - mounting, head lamp

2шт.

23

R16791

RING - mounting, head lamp

2шт.

24

73-424

BOLT (MACHINE)

FHMS - 1/4-20 NC x 1-1/2

8шт.

25

36516

X

LAMP - head, R.H. and L.H. (6 volt)

2шт.

See model 320 Wheel Tractor Parts Catalog no. A1000, Figure 50, for breakdown.

1шт.

*

37819

LAMP - head, R.H. and L.H. (12 volt)

2шт.

See model 320 Wheel Tractor Parts Catalog no. A1000, Figure 50, for breakdown.

1шт.
