Запчасти Case 320 (86) - 900 LB. REAR COUNTER WEIGHT (00) - COMPLETE MACHINE

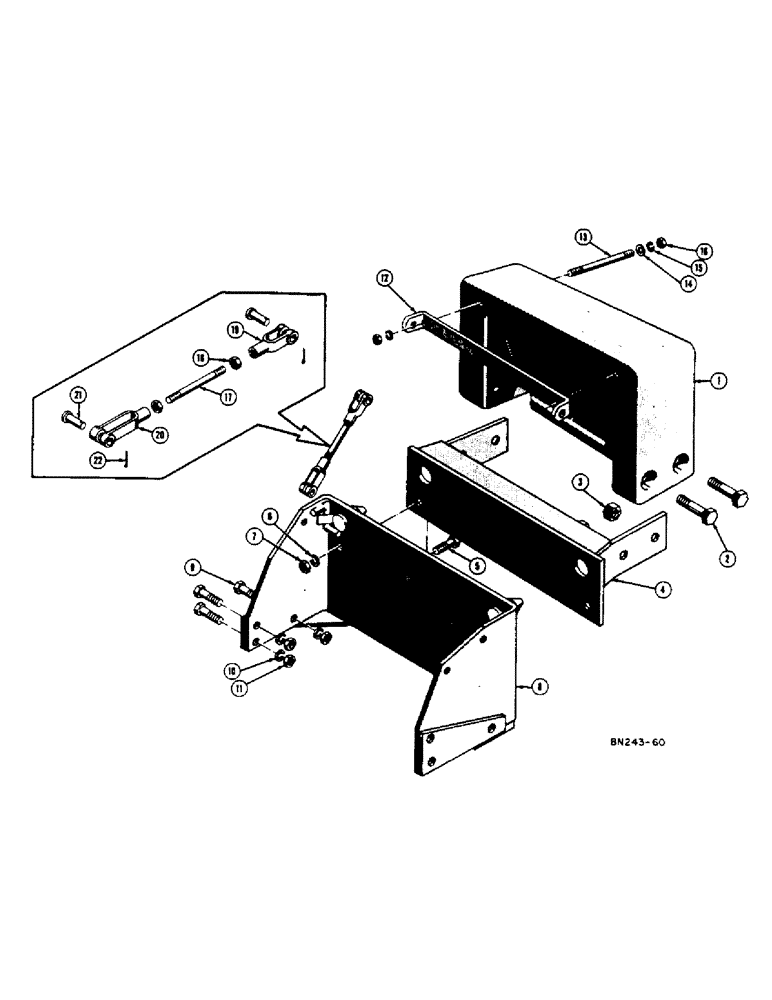

Схема запчастей Case 320 - (86) - 900 LB. REAR COUNTER WEIGHT (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

32105

WEIGHT - counter (900 lb.)

1шт.

2

14-1680

CAPSCREW,Hex, 1" - 14 x 5", Gr 5

HCS - 1 - 14 NF x 5

4шт.

3

131-370

LOCK NUT

NUT - lock, hex. (1 - 14 NF)

4шт.

4

36218

BRACKET - mounting

1шт.

5

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/2

2шт.

6

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

7

25-1116

NUT,1"-14, G5

- hex. (1 - 14 NF)

2шт.

8

36169

PLATE - mounting

1шт.

9

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

HHCS - 3/4 - 16 NF x 3-1/2

6шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

11

25-1112

NUT,3/4"-16, G5

hex. (3/4 - 16 NF)

6шт.

12

36171

BRACKET - mounting, yoke

1шт.

13

32169

GEAR

BOLT - mounting bracket

2шт.

14

195-33

WASHER,1/2"

- wrot, S. A. E. (1/2)

2шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

17

35937

HUB

ROD - stabilizer

2шт.

18

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

19

02701AB

YOKE - stabilizer rod, upper

2шт.

20

213-50

ADJUSTABLE CLEVIS,1/2"-20 x 4 3/16"

YOKE - stabilizer rod, lower

2шт.

21

02499AB1

PIN - yoke

4шт.

22

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

51

Set of decals for model "320" wheel tractor (Gas and diesel) with loader and backhoe, TRANSFERS

1шт.

D20209

KIT

Set of decals for model "320" crawler tractor with loader and backhoe, TRANSFERS

1шт.

Выбрано товаров: 24
