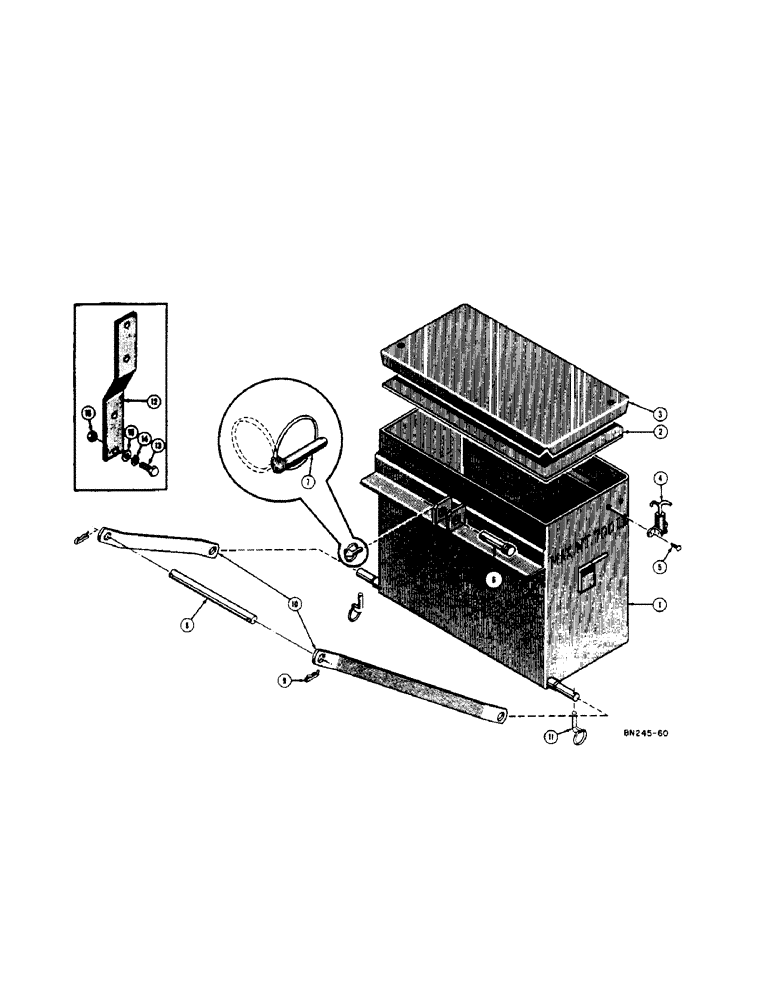

Запчасти Case 320 (84) - 700 LB. REAR WEIGHT BOX (WITH EAGLE HITCH) (00) - COMPLETE MACHINE

1

DR10591

BOX - weight (700 lb.)

1шт.

2

DR10587

SHELF - tool box

1шт.

3

DR10589

LID - weight box

1шт.

4

03771AB

CATCH - lid

1шт.

5

45-35

RIVET - button head (3/16 x 5/16)

4шт.

6

V14209

X

PIN - mast

1шт.

7

SV2433

X

KLIK PIN - retaining, mast pin

1шт.

8

DR10603

SHAFT - turnbuckle pivot

1шт.

9

CT1864S

X

COTTER - hair pin, pivot shaft retaining

2шт.

10

DR10595

STRAP - support

2шт.

11

SV2433

X

KLIK PIN - retaining, support strap

2шт.

12

D20640

BRACKET - extension, tail light

1шт.

13

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

195-21

WASHER,5/16"

- plain, (11/32" I.D. x 11/16" O.D.) 5/16"

1шт.

16

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.
