Запчасти Case 320 (84[1]) - 900 LB. WEIGHT BOX (TRACTOR WITH BACKHOE REMOVED) (00) - COMPLETE MACHINE

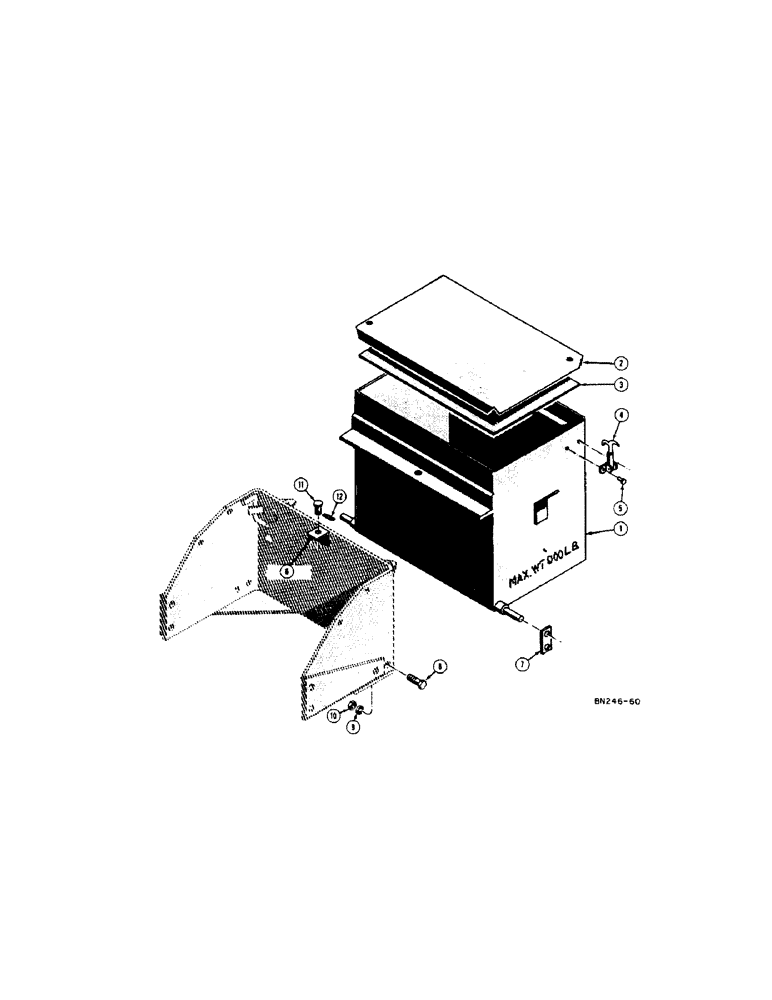

Схема запчастей Case 320 - (84[1]) - 900 LB. WEIGHT BOX (TRACTOR WITH BACKHOE REMOVED) (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

D10270

BOX - weight (900 lb.)

1шт.

2

D21182

LID - weight box

1шт.

3

D21183

SHELF - weight box

1шт.

4

03771AB

CATCH - lid

2шт.

5

45-35

RIVET - button head (3/16" x 5/16")

4шт.

6

DR10593

BRACKET - upper (Welded to mounting plate)

1шт.

7

DR10594

STRAP - support, lower

2шт.

8

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

HHCS - 3/4 - 16 NF x 1-1/2

2шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

2шт.

11

VT2969

X

PIN - upper bracket

1шт.

12

VC1419

X

PIN - hair

1шт.

Выбрано товаров: 12
