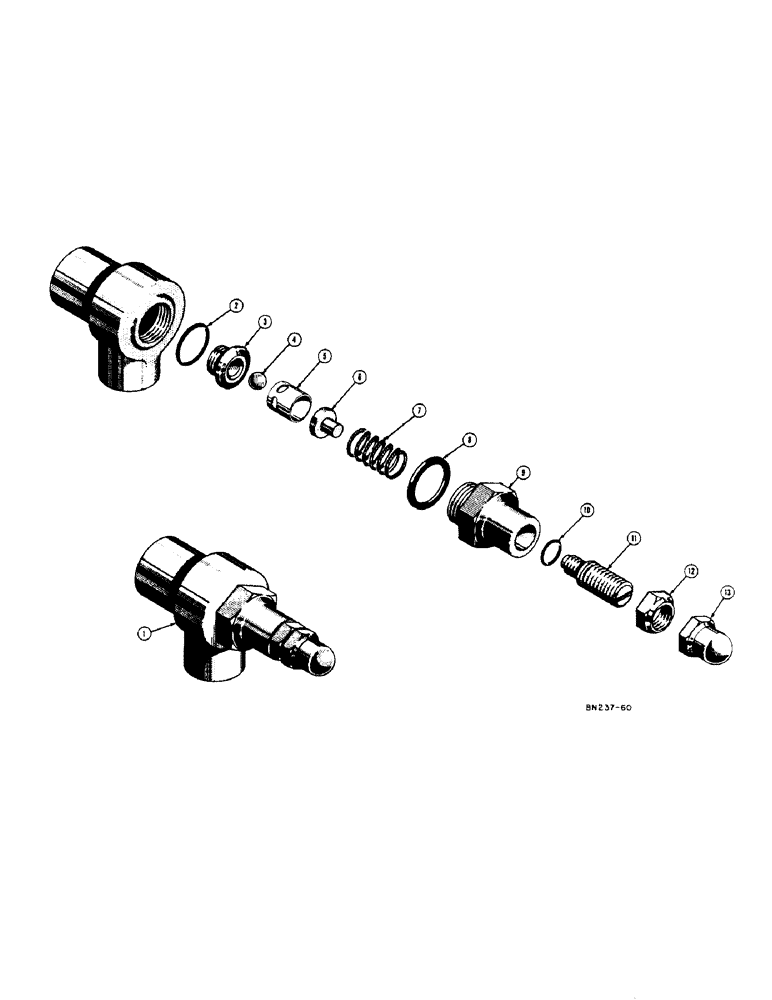

Запчасти Case 320 (80) - 33959 SPECIAL RELIEF VALVE, D24452 SPECIAL RELIEF VALVE (00) - COMPLETE MACHINE

1

NLS

NO LONGER SERVICED

VALVE - relief, boom down pressure (Has #985 on body) (Use D24452)

1шт.

2

08416AB

SEAL - "o" ring, valve seat

1шт.

3

34119

SEAT, VALVE

SEAT - valve

1шт.

4

07210AB

BALL - relief valve

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPACER - relief valve

1шт.

8

34115

GASKET

- body cap

1шт.

9

34113

BODY

CAP - body

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

SEAL - "o" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - cap, hex.

1шт.
