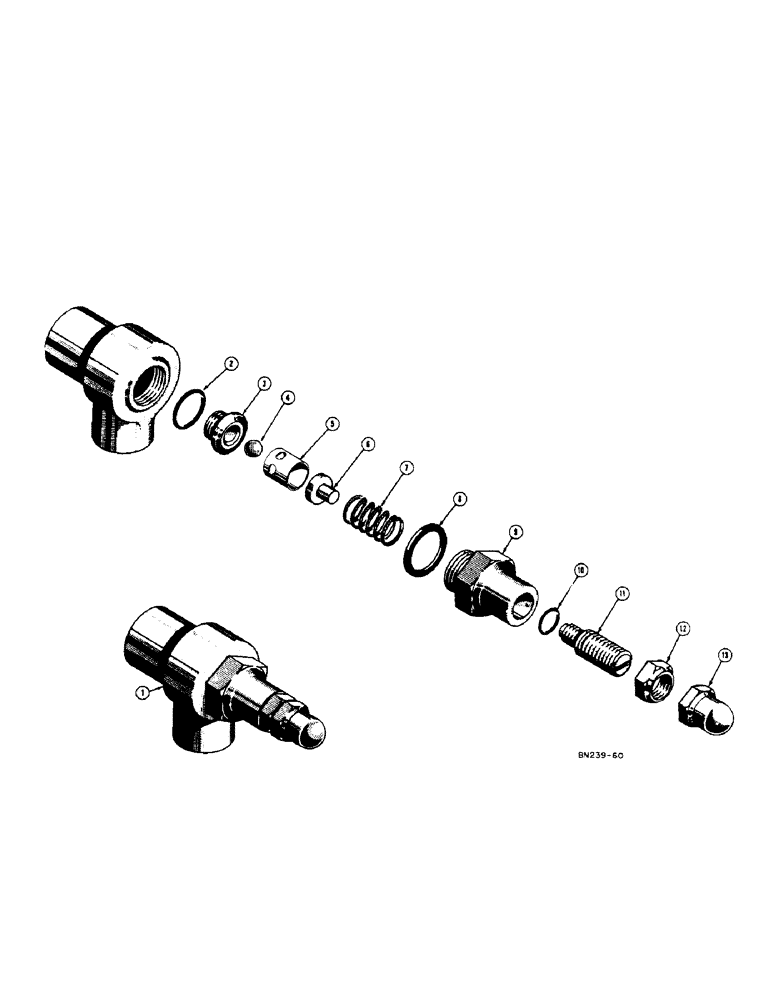

Запчасти Case 320 (80[1]) - D24452 SPECIAL RELIEF VALVE (LOADER) (00) - COMPLETE MACHINE

1

D24452

VALVE

- relief, boom down pressure (Has #2716 on body)

1шт.

2

D23928

O-RING

SEAL - "o" ring, valve seat

1шт.

3

D24406

SEAT

- valve

1шт.

4

07210AB

BALL - relief valve

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- body cap

1шт.

9

34113

BODY

CAP - body

1шт.

10

34112

CLIP

SEAL - "o" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - cap, hex.

1шт.
