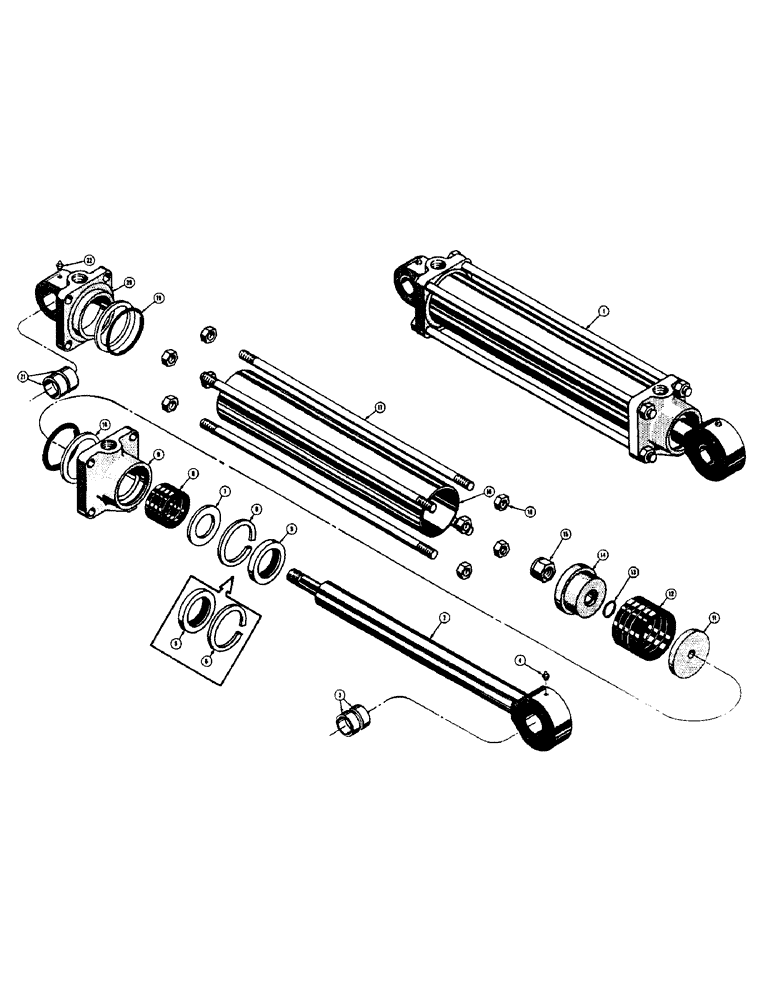

Запчасти Case 320 (72) - 36770 HYDRAULIC BACKHOE CROWD CYLINDER (00) - COMPLETE MACHINE

1

36770

CYLINDER - crowd, hydraulic

1шт.

2

D20042

ROD - piston

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod, yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (Lincoln #5000)

1шт.

5

31525

WIPER SEAL

- wiper, piston rod

1шт.

6

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

7

31539

WASHER

- piston rod packing (1/8" thick)

1шт.

D25044

WASHER

- piston rod packing (1/4" thick)

1шт.

8

17598

PACKING

- piston rod

1шт.

9

100-21275

SNAP RING,2.75", Int, #275

CAP - cylinder end (When replacing cap using 31539 washer - 1/8" thick, also order 1 - D25044 washer - 1/4" thick)

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide "o" ring groove.

1шт.

10

D24988

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "o" ring groove)

2шт.

D25496

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "o" ring groove)

2шт.

11

R19906

WASHER - packing, piston

1шт.

12

31526

PACKING

- piston

1шт.

13

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "o" ring, piston rod (Used with D23737 piston only)

1шт.

14

31520

PISTON - cylinder (No "o" ring) (Use D23737, D23688, and A7623)

1шт.

D23737

PISTON - cylinder (With "o" ring) (When replacing 31520 piston without "o" ring, also order 1 - A7623 "o" ring and 1 - D23688 nut)

1шт.

15

131-19

LOCK NUT,1"-14, GB

NUT - lock, hex. (31520 piston only) (1 - 14 NF)

1шт.

D23688

X

NUT - lock, hex. (D23737 piston only) (1 - 14 NF)

1шт.

16

36771

TUBE - cylinder

1шт.

17

36778

FORK

ROD - tie

4шт.

18

131-154

LOCK NUT,5/8"-18, GA

NUT - lock, hex. (5/8 - 18 NF)

8шт.

19

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "o" ring, cylinder tube

2шт.

20

D20037

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide "o" ring groove.

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (Lincoln #5000)

1шт.
