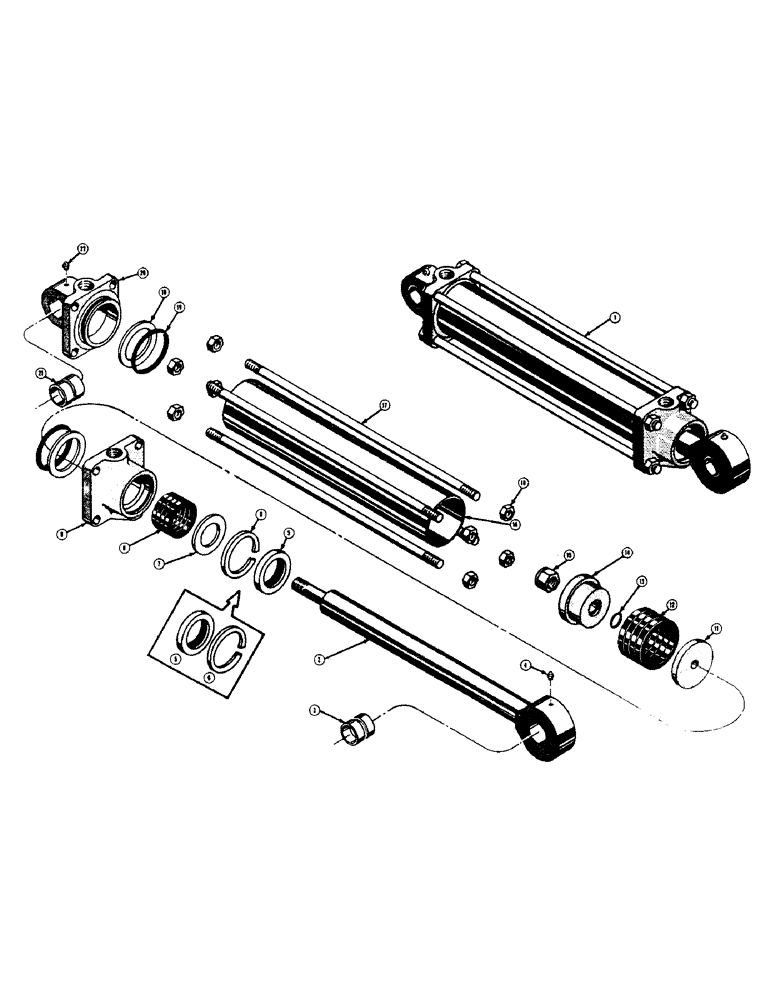

Запчасти Case 320 (70) - 36070 HYDRAULIC BACKHOE BOOM CYLINDER (00) - COMPLETE MACHINE

1

36070

TOY

CYLINDER - boom, hydraulic

1шт.

2

D20039

ROD - piston

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (Lincoln #5000)

1шт.

5

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

6

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

7

70741

X

WASHER - packing, piston rod (Used with 30567 cylinder end cap only)

1шт.

D25043

WASHER

- packing, piston rod (Used with D25596 cylinder end cap only)

1шт.

8

30568

PACKING

- piston rod

1шт.

9

30567

FLANGE

CAP - end, cylinder (Has no. 30567 on casting) (Use D25596 and D25043)

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24987 backup ring, as replacement end or cap will have .210" wide "o" ring groove.

1шт.

D25596

CAP - end, cylinder (Has no. D25596 on casting) (When replacing 30567 end cap, also order 1 - D25043 washer)

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24987 backup ring, as replacement end or cap will have .210" wide "o" ring groove.

1шт.

10

D24987

RING

- leather backup (Used only with cylinder end or cap which has .210" wide "o" ring groove)

2шт.

D25495

RING

- plastic backup (Used only with cylinder end or cap which has .185" wide "o" ring groove)

2шт.

11

NLS

NO LONGER SERVICED

WASHER - packing, piston

1шт.

12

17578

PACKING

- piston

1шт.

13

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "o" ring (Used with D23736 piston only)

1шт.

14

30571

PISTON - cylinder (No "o" ring) (Use D23736, A7623, and D23688)

1шт.

D23736

PISTON - cylinder (With "o" ring) (When replacing 30571 piston without "o" ring, also order 1 - A7623 "o" ring and 1 - D23688 lock nut)

1шт.

15

131-19

LOCK NUT,1"-14, GB

NUT - lock, hex. (30571 piston only) (1" - 14 NF)

1шт.

D23688

X

NUT - lock, hex. (D23736 piston only) (1" - 14 NF)

1шт.

16

36063

LUBE NIPPLE

TUBE - cylinder

1шт.

17

36069

TOY

ROD - tie

4шт.

18

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock, hex. (1/2" - 20 NF)

8шт.

19

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "o" ring, cylinder tube

2шт.

20

D20054

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24987 backup ring, as replacement end or cap will have .210" wide "o" ring groove.

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- end cap

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

1шт.
