Запчасти Case 320 (66) - HYDRAULIC BACKHOE STABILIZER CYLINDERS (00) - COMPLETE MACHINE

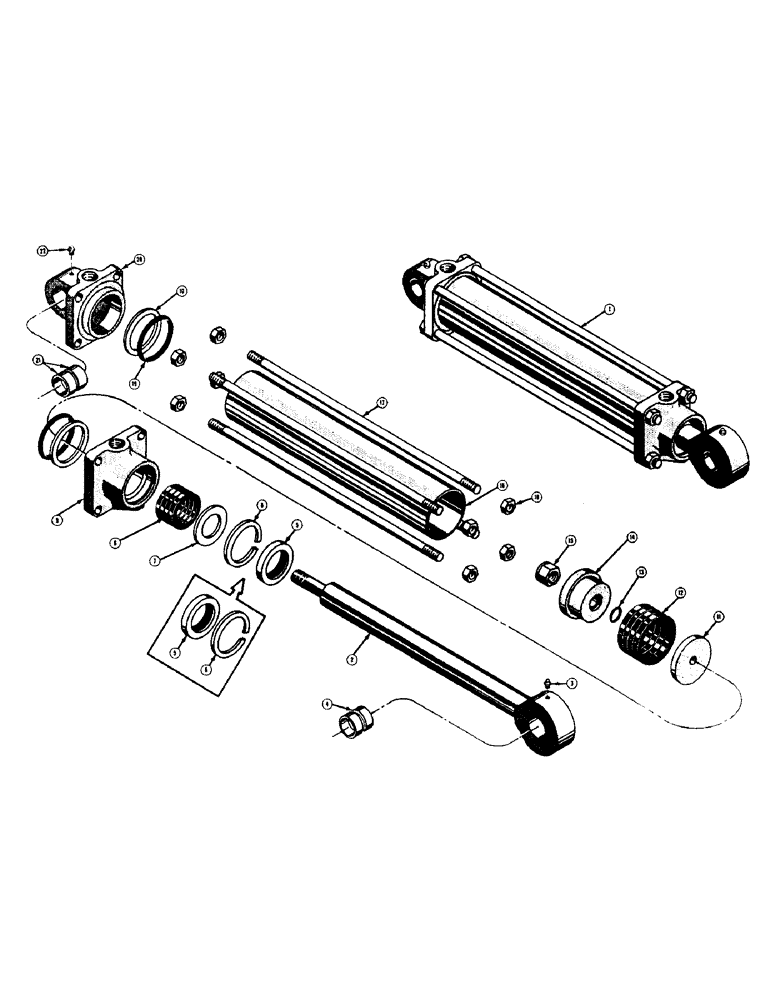

Схема запчастей Case 320 - (66) - HYDRAULIC BACKHOE STABILIZER CYLINDERS (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

34942

CYLINDER - stabilizer, hydraulic (Original equipment only, Crawler model - use 38464)

2шт.

37684

CYLINDER - stabilizer, hydraulic (Original equipment only, wheel tractor model - use 38464)

2шт.

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic (Replacement - wheel and crawler tractors)

2шт.

2

D20028

ROD - piston (38464 cylinder only) (No grease fitting hole)

1шт.

D20019

ROD - piston (37684 and 34942 cylinders only) (With grease fitting hole - use D20028)

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT) (Lincoln #5000) (If used)

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke

2шт.

5

17583

WIPER SEAL

- wiper, piston rod

1шт.

6

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

7

70740

WASHER

- packing, piston rod (Used with 32486 cylinder end cap only)

1шт.

D25042

WASHER

- packing, piston rod (Used with D25584 cylinder end cap only)

1шт.

8

17577

PACKING

- piston rod

1шт.

9

32486

RATCHET

CAP - end, cylinder (Has no. 32486 on casting) (Use D25042 and D25584)

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide "o" ring groove.

1шт.

D25584

CAP

- end, cylinder (Has no. D25584 on casting) (When replacing 32486 end cap, also order 1 - D25042 washer)

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide "o" ring groove.

1шт.

10

D24986

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "o"ring groove)

2шт.

D25494

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "o" ring groove)

2шт.

11

31661

WASHER

- packing, piston

1шт.

12

31662

PACKING

- piston

1шт.

13

03522CK

SEAL - "o" ring (Used with D23735 piston only)

1шт.

14

31663

X

PISTON - cylinder (No "o" ring) (Use D23735, D23739, and 03522CK)

1шт.

D23735

PISTON

- cylinder (With "o" ring) (When replacing 31663 piston without "o" ring, also order 1 - 03522CK "o" ring and 1 - D23739 lock nut)

1шт.

15

131-152

HARDWARE

NUT - lock, hex. (31663 piston only) (3/4 - 16 NF)

1шт.

D23739

LOCK NUT

NUT - lock, hex. (D23735 piston only) (3-4 - 16 NF)

1шт.

16

31750

TUBE - cylinder

1шт.

17

34939

ROD - tie

4шт.

18

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock, hex. (1/2 - 20 NF)

8шт.

19

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "o" ring, cylinder tube

2шт.

20

D20055

END - cylinder (Without grease fitting)

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide "o" ring groove.

1шт.

D20052

END - cylinder (With grease fitting - use D20055)

1шт.

When replacing cylinder end or cap that has .185" wide "o" ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide "o" ring groove.

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) (If used) 90º, 1/8" NPT x .84" lg

1шт.

Выбрано товаров: 35
