Запчасти Case 320 (64) - D26066 HEAVY DUTY HYDRAULIC PUMP (19 G.P.M.) (00) - COMPLETE MACHINE

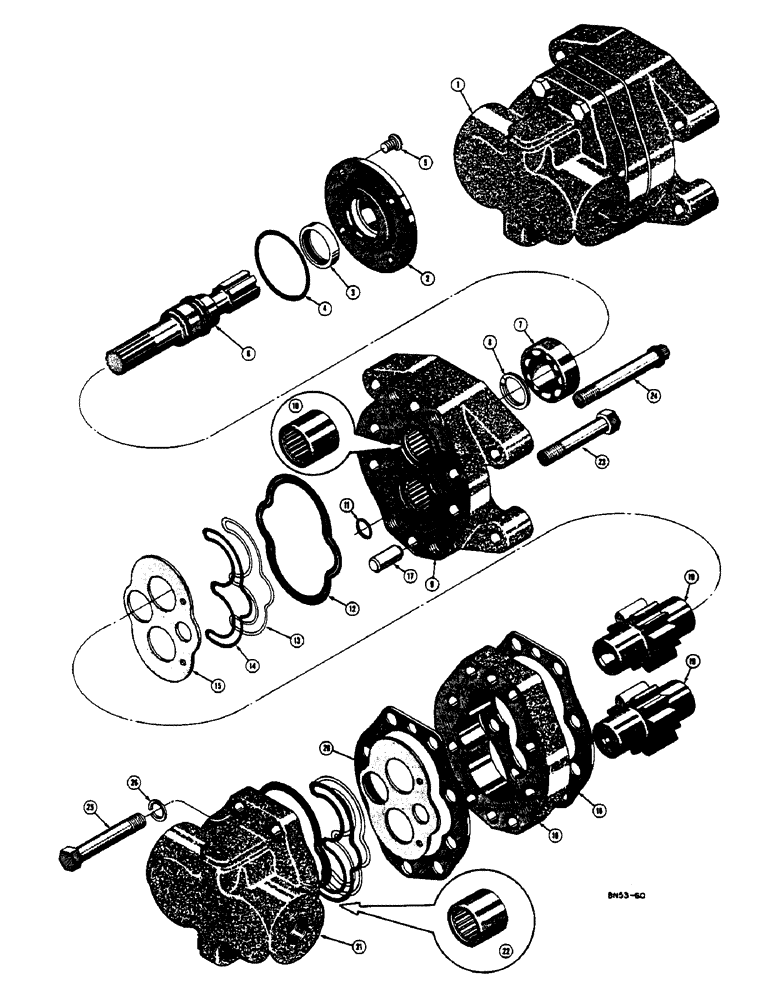

Схема запчастей Case 320 - (64) - D26066 HEAVY DUTY HYDRAULIC PUMP (19 G.P.M.) (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

D26066

PUMP - hydraulic (Webster no. 2JES 1 - L)

1шт.

2

D25864

PLATE - pilot

1шт.

3

D24047

SEAL

- oil, drive shaft (Double lip)

1шт.

4

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

SEAl - "o" ring, pilot plate to pump body

1шт.

5

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- machine, flat head (1/4 -20 NC x 1/2)

4шт.

6

D25860

SHAFT - pump drive

1шт.

7

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

- ball, drive shaft

1шт.

8

34488

RING, SNAP

SNAP RING - bearing retaining

1шт.

9

D25863

BODY - pump

1шт.

10

09694AB

BEARING - needle

4шт.

11

D25874

X

SEAL - "o" ring

2шт.

12

D25871

SEAL

- retaining plate

2шт.

13

D25873

RING - backup, plastic

2шт.

14

D25872

RING

- sealing

2шт.

15

D25869

PLATE

- wear, smooth (Next to body)

1шт.

16

D25868

PLATE

- retaining, wear plate

2шт.

17

D25866

PIN - dowel

2шт.

18

D25865

PLATE - gear

1шт.

19

D26425

GEARS - set of, drive and driven

1шт.

20

D25870

PLATE

- wear, grooved (Next to cover)

1шт.

21

D25859

COVER - pump

1шт.

22

09694AB

BEARING - needle

2шт.

23

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2 - 13 NC x 3

2шт.

24

166-95

12 PT SCREW,Flg, 1/2" - 13 x 3 1/2", Gr 8

SCREW - counterbore head (1/2 - 13 NC x 3-1/2)

2шт.

25

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

Выбрано товаров: 26
