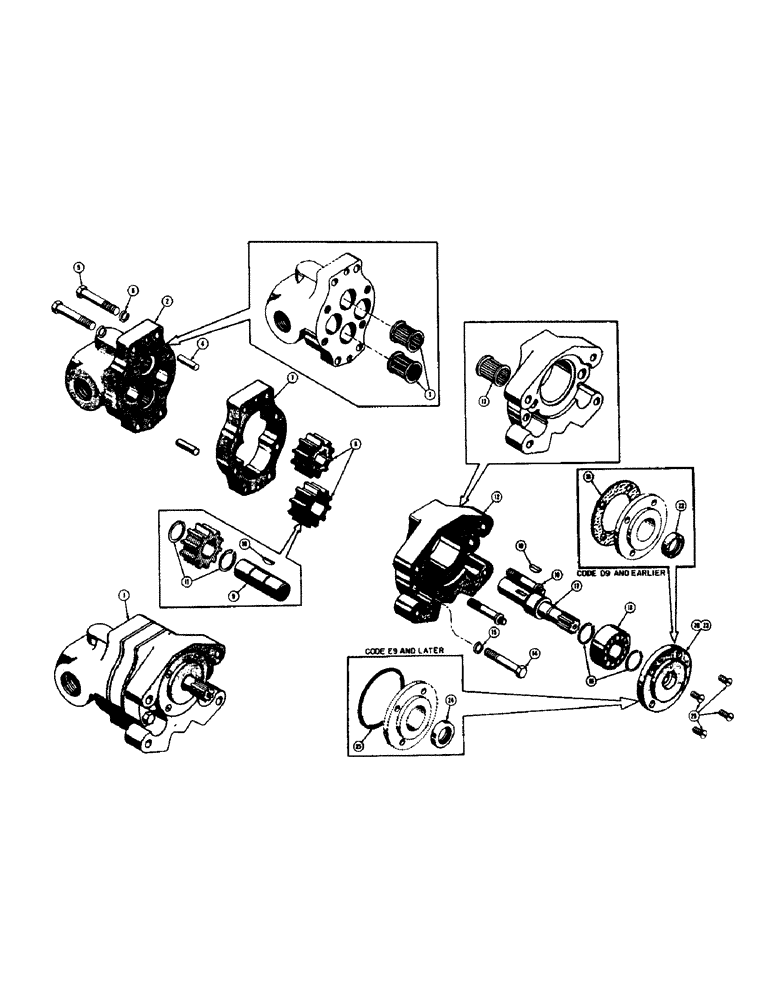

Запчасти Case 320 (60) - 31614 HYDRAULIC PUMP (19 G.P.M.) (00) - COMPLETE MACHINE

1

31614

PUMP - hydraulic (Webster #2HES1-L)

1шт.

2

34533

COVER - front

1шт.

3

F51079

NEEDLE BEARING

BEARING - needle

2шт.

4

34536

PIN - dowel, pump, Serial Range: body-cover

2шт.

5

13-838

BOLT,Hex, 1/2" - 13 x 2-3/8", Gr 5

HHCS - 1/2 - 13 NC x 2-3/8

4шт.

6

192-33

LOCK WASHER,1 1/8"

1 1/8"

4шт.

7

34534

CAM

PLATE - gear

1шт.

8

5446

GEAR-SET

GEARS - set of, drive and driven

1шт.

9

34625

GUARD

SHAFT - driven gear

1шт.

10

48777

X

KEY - Woodruff, drive and driven gears

2шт.

11

04105CH

SNAP RING - driven gear

2шт.

12

34535

X

BODY - pump (Code D9 and earlier pumps only) (Use R16373, R16375, and D24053)

1шт.

13

F51079

NEEDLE BEARING

BEARING - needle

1шт.

12

R16373

BODY - pump (Code E9 and later pumps only)

1шт.

13

F51079

NEEDLE BEARING

BEARING - needle

1шт.

14

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2 - 13 NC x 2-1/2

2шт.

15

192-33

LOCK WASHER,1 1/8"

WASHER, LOCK, 1 1/8"

2шт.

16

27857R1

SCREW,12 Pt Flg, 1/2" - 13 x 2 3/4"

- counterbore, special (1/2 - 13 NC x 2-3/4)

2шт.

17

NLS

NO LONGER SERVICED

SHAFT - pump drive

1шт.

18

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft

1шт.

19

34488

RING, SNAP

SNAP RING - bearing retaining

2шт.

20

34489

PLATE - pilot (Code D9 and earlier pumps only)

1шт.

21

34490

SPRING

GASKET - pilot plate

1шт.

22

40642

RICE TOOTH

SEAL - oil, drive shaft

1шт.

23

R16375

PLATE - pilot (Code E9 and later pumps only)

1шт.

24

R16377

X

SEAL - oil, drive shaft

1шт.

25

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

SEAL - "o" ring, pilot plate (Code E9 and later pumps only)

1шт.

26

171-211

X

SCREW - machine, flat head (1/4 - 20 NC x 1-1/2)

4шт.
