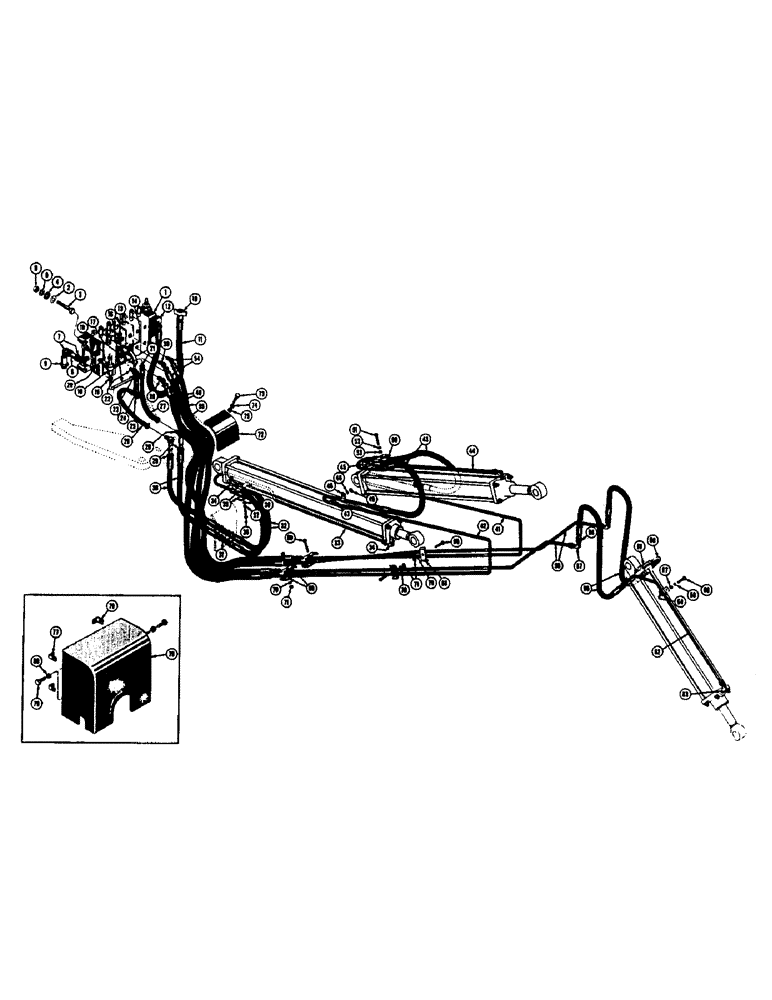

Запчасти Case 320 (44) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS (WHEEL TRACTOR) VALVE (00) - COMPLETE MACHINE

1

34642

X

VALVE - hydraulic control, backhoe (Use D23812)

1шт.

D23812

VALVE

- hydraulic control, backhoe (Note: D23812 and 34642 valves are identical insofar as field service is concerned) See Figure 76 for breakdown

1шт.

221-378

ELBOW,90 Degree, 3/4" NPT

- 3/4" NPT

1шт.

2

33496

BRAKE LINING

SHIM - valve mounting

1шт.

3

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2-20 NF x 2-1/2

3шт.

4

195-33

WASHER,1/2"

- SAE wrot (1/2)

3шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

3шт.

7

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

2шт.

8

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, 3/4" NPT x 3" long

1шт.

35146

DISCONNECT - quick

1шт.

9

36262

DISCONNECT - quick, male half

1шт.

10

36263

DISCONNECT - quick, female half

1шт.

11

36232

HOSE ASSY.

HOSE - valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 32" long)

1шт.

12

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" JIC x 3/4" NPT

1шт.

13

D21315

NIPPLE - pipe tree (1/2" NPT x 3-1/2" extra heavy pipe)

1шт.

14

D23911

FITTING

TEE - female, boom down pressure return line (1/2" NPT)

1шт.

15

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2" NPT x 5/8" JIC

1шт.

16

35154

TUBE - valve to top side of relief valve (See D20251)

1шт.

17

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2" NPT x 5/8" JIC

1шт.

16

D20251

TUBE - valve to bottom side of relief valve (See 35154)

1шт.

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" NPT x 5/8" JIC

1шт.

18

NLS

NO LONGER SERVICED

VALVE - relief, boom down pressure (Has no. "985" on casting) See Figure 80 for breakdown (Use D24452)

1шт.

D24452

VALVE

- relief, boom down pressure (Has no. "2716" on casting) See Figure 80 for breakdown

1шт.

19

D21315

NIPPLE - relief valve (1/2" NPT x 3-1/2" extra heavy pipe)

1шт.

20

221-60

TUBE

BUSHING - reducing, 3/4" NPT to 1/2" NPT

1шт.

21

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2" NPT x 5/8" JIC , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

22

D21316

NIPPLE - pipe, flow control valve to backhoe valve (1/2" NPT x 2" EH pipe) , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

23

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2" NPT , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

24

60374

VALVE

- flow control (See Figure 82 for breakdown) , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

25

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8" JIC x 1/2" NPT , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

26

36204

HOSE

TUBE - flow control valve to L.H. male elbow (Used up to backhoe serial no. 4009763) Use D21320 hose , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

D21320

HOSE - flow control valve to L.H. male elbow (1/2" I.D. x 7/8" O.D. x 15" long) (Original equipment from backhoe serial number 4009763) , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

27

36202

HOSE

TUBE - pipe tee to R.H. male elbow (Used up to backhoe serial no. 4009763) Use D21317 hose , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

D21317

HOSE - pipe tee to R.H. male elbwo (1/2" I.D. x 7/8" O.D. x 22-1/2" long) (Original equipment from backhoe serial no. 4009763) , BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

28

50878

ROLLER

ELBOW - 90 degree special, tubes to boom cylinder hoses , HYDRAULIC SYSTEM

2шт.

29

D25828

NUT - hex. jam, special (7/8-14 NF) , BOOM CYLINDER HYDRAULIC SYSTEM

2шт.

30

38462

HOSE ASSY.

HOSE - bulkhead elbow to tower (1/2" I.D. x 7/8" O.D. x 26-1/4" long) , BOOM CYLINDER HYDRAULIC SYSTEM

2шт.

31

D21698

UNION

- bulkhead, tower (Boom cylinder hoses), HYDRAULIC SYSTEM

2шт.

32

35209

HOSE ASSY.

HOSE - tower to boom cylinder (5/8" I.D. x 1" O.D. x 32" long), HYDRAULIC SYSTEM

2шт.

33

35206

TUBE - to boom cylinder rear port , HYDRAULIC SYSTEM

1шт.

34

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" NPT x 5/8" JIC , BOOM CYLINDER HYDRAULIC SYSTEM

2шт.

35

31665

COLLAR CLAMP

CLAMP - hose , BOOM CYLINDER HYDRAULIC SYSTEM

2шт.

36

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Boom cylinder hydraulic system Hex, 5/16"-24 x 1 3/4", G5

1шт.

37

92-5

LOCK WASHER,5/16"

boom cylinder hydraulic system 5/16"

1шт.

38

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), BOOM CYLINDER HYDRAULIC SYSTEM

1шт.

39

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 5/8" JIC x 1/2" NPT , CROWD CYLINDER HYDRAULIC SYSTEM

2шт.

40

NLS

NO LONGER SERVICED

HOSE - valve to crowd cylinder (1/2" I.D. x 7/8" O.D. x 65" long) , HYDRAULIC SYSTEM

2шт.

41

NLS

NO LONGER SERVICED

TUBE - upper valve port to crowd cylinder hose, HYDRAULIC SYSTEM

1шт.

42

36760

PIN

TUBE - lower valve port to crowd cylinder hose, HYDRAULIC SYSTEM

1шт.

43

D27478

HOSE ASSY.

HOSE - crowd cylinder (1/2" I.D. x 7/8" O.D. x 22" long), HYDRAULIC SYSTEM

2шт.

44

36811

ELECTRIC CABLE

TUBE - crowd cylinder rear port, HYDRAULIC SYSTEM

1шт.

45

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8" JIC x 1/2" NPT , CROWD CYLINDER HYDRAULIC SYSTEM

2шт.

46

D20043

CLAMP - crowd cylinder tubes, HYDRAULIC SYSTEM

2шт.

47

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd, Crowd cylinder hydraulic system

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crowd cylinder hydraulic system 1/4"

2шт.

49

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF) , CROWD CYLINDER HYDRAULIC SYSTEM

2шт.

50

31665

COLLAR CLAMP

CLAMP - crowd and bucket cylinder tubes, HYDRAULIC SYSTEM

2шт.

51

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Crowd cylinder hydraulic system Hex, 5/16"-24 x 1 3/4", G5

1шт.

52

92-5

LOCK WASHER,5/16"

crowd cylinder hydraulic system 5/16"

1шт.

53

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), CROWD CYLINDER HYDRAULIC SYSTEM

1шт.

54

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 5/8" JIC x 1/2" NPT, BUCKET CYLINDER HYDRAULIC SYSTEM

2шт.

55

36252

BEARING ASSY

HOSE - valve to bucket cylinder tubes (1/2" I.D. x 7/8" O.D. x 65" long), HYDRAULIC SYSTEM

2шт.

56

35195

TUBE - valve hose to bucket cylinder, HYDRAULIC SYSTEM

2шт.

57

D21699

ELBOW - 90 degree bulkhead, 5/8" JIC, BUCKET CYLINDER HYDRAULIC SYSTEM

2шт.

58

D25828

NUT - hex. jam, special (7/8-14 NC), BUCKET CYLINDER HYDRAULIC SYSTEM

2шт.

59

19178

HOSE

- bucket cylinder (1/2" I.D. x 7/8" O.D. x 33-1/2" long), HYDRAULIC SYSTEM

2шт.

60

35025

TUBE - bucket cylinder front port (Used in conjunction with male connector in cylinder port) See D20255, HYDRAULIC SYSTEM

1шт.

61

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 1/2" NPT, BUCKET CYLINDER HYDRAULIC SYSTEM

1шт.

60

D20255

TUBE - bucket cylinder front port (Used in conjunction with 90 degree male elbow in cylinder port) See 35025, HYDRAULIC SYSTEM

1шт.

61

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" NPT x 5/8" JIC, BUCKET CYLINDER HYDRAULIC SYSTEM

1шт.

62

35027

HYD TUBE

TUBE - bucket cylinder rear port, HYDRAULIC SYSTEM

1шт.

63

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8" JIC x 1/2" NPT, BUCKET CYLINDER HYDRAULIC SYSTEM

1шт.

64

31665

COLLAR CLAMP

CLAMP - 35027 tube, BUCKET CYLINDER HYDRAULIC SYSTEM

2шт.

65

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Bucket cylinder hydraulic system Hex, 5/16"-24 x 1 1/4", G5

1шт.

66

92-5

LOCK WASHER,5/16"

bucket cylinder hydraulic system 5/16"

1шт.

67

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), BUCKET CYLINDER HYDRAULIC SYSTEM

1шт.

68

31665

COLLAR CLAMP

CLAMP - tube mounting, BUCKET CYLINDER HYDRAULIC SYSTEM

6шт.

69

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Bucket cylinder hydraulic system Hex, 5/16"-24 x 1 3/4", G5

4шт.

70

92-5

LOCK WASHER,5/16"

bucket cylinder hydraulic system 5/16"

4шт.

71

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), BUCKET CYLINDER HYDRAULIC SYSTEM

4шт.

72

35192

BRACKET - hose mounting, BUCKET CYLINDER HYDRAULIC SYSTEM

1шт.

73

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8-24 NF x 1-3/4, BUCKET CYLINDER HYDRAULIC SYSTEM

4шт.

74

92-6

LOCK WASHER,3/8"

bucket cylinder hydraulic system 3/8"

4шт.

75

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF), HYDRAULIC SYSTEM

4шт.

76

D20557

SHIELD - valve, hydraulic control , IF USED

1шт.

77

D20644

BRACKET - mounting, L.H. , VALVE SHIELD, IF USED

2шт.

78

D20645

BRACKET - mounting, R.H. , VALVE SHIELD, IF USED

1шт.

79

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

HHCS - 3/8-24 NF x 5/8 , VALVE SHIELD, IF USED

4шт.

80

92-6

LOCK WASHER,3/8"

valve shield, if used 3/8"

4шт.
