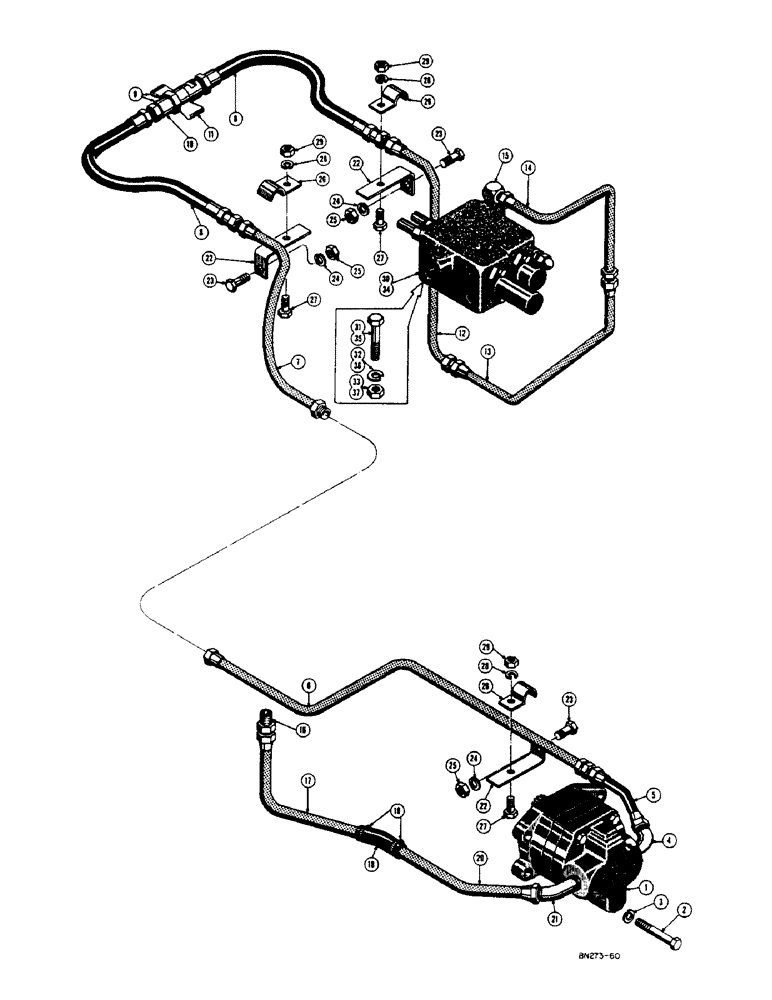

Запчасти Case 320 (30) - BASIC BACKHOE HYDRAULICS (CRAWLER TRACTOR) (00) - COMPLETE MACHINE

1

31614

PUMP - hydraulic, 19 G.P.M. (See Figure 60 for breakdown) Original equipment only - use D21319 or D26066

1шт.

D21319

PUMP - hydraulic, 19 G.P.M. (See Figure 62 for breakdown) Replacement only

1шт.

D26066

PUMP - hydraulic, 19 G.P.M. (Heavy duty) (See Figure 64 for breakdown) Replacement only

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 45 degree street, 3/4" NPT (35189 hose)

1шт.

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degrees, 3/4" NPT x 3/4" JIC (36306 tube)

1шт.

5

D23636

HOSE - pump to backhoe valve, front section (3/4" I.D. x 1-5/32" O.D. x 12" long)

1шт.

36306

TUBE

- pump to backhoe control valve, front section

1шт.

6

36308

BOLT

TUBE - pump to backhoe control valve, center section

1шт.

7

35942

TUBE - pump to backhoe control valve, rear section

1шт.

8

NLS

NO LONGER SERVICED

- backhoe control valve (Used only on models with quick disconnects) (3/4" I.D. x 1-5/32" O.D. x 25" long)

2шт.

D21788

HOSE

- backhoe control valve (Used only on models without quick disconnects) (3/4" I.D. x 1-5/32" O.D. x 31" long)

1шт.

9

35146

DISCONNECT - quick

1шт.

10

36262

DISCONNECT - quick, male half

1шт.

11

36263

DISCONNECT - quick, female half

1шт.

12

35943

TUBE - backhoe control valve to loader control valve, rear section

1шт.

13

36302

TUBE - backhoe control valve to loader control valve, center section (Used up to serial no. 3003851)

1шт.

39157

TUBE - backhoe control valve to loader control valve, center section (Used from serial no. 3003851)

1шт.

14

36300

TUBE - backhoe control valve to loader control valve, front section (Used up to serial no. 3003851)

1шт.

D20297

TUBE - backhoe control valve to loader control valve, front section (Used from serial no. 3003851)

1шт.

15

218-495

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" NPT x 3/4" JIC

1шт.

16

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight male, 3/4" NPT x 1" JIC

1шт.

17

39142

TUBE - reservoir to pump, rear section (Used up to serial no. 3003851) Use 36312

1шт.

36312

NEEDLE BEARING

TUBE - reservoir to pump, rear section (Used from serial no. 3003851)

1шт.

18

32798

HOSE

- connects front and rear sections of line from reservoir to pump (1" I.D. x 1-1/2" O.D. x 6" long)

1шт.

19

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 32798 hose

2шт.

20

36310

SEAL

TUBE - reservoir to pump, front section

1шт.

21

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree male, 1" NPT x 1" JIC

1шт.

22

33422

BRACKET - 49789 clamp

3шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

24

92-8

LOCK WASHER,1/2"

3шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2-13 NC)

3шт.

26

49789

CLAMP

- 35942, 35943, and 36208 tubes

3шт.

27

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

3шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16-24 NF x 1

3шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

92-5

LOCK WASHER,5/16"

3шт.

29

25-104

NUT,1/4"-20, G5

3шт.

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

3шт.

30

16400

VALVE - control, hydraulic (See model 320 Crawler Parts Catalog for breakdown) (Used up to serial no. 3003851)

1шт.

31

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS - 1/2-20 NF x 4

3шт.

32

92-8

LOCK WASHER,1/2"

3шт.

33

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

3шт.

34

38256

PIN

VALVE - control, hydraulic (See page 24 for breakdown) (Used from serial no. 3003851) Use D24387

1шт.

D24387

SPOOL

VALVE - control, hydraulic (See page 26 for breakdown) (Use from serial no. 3003851)

1шт.

35

14-638

HHCS - 3/8-24 NF x 2-1/4

3шт.

36

92-6

LOCK WASHER,3/8"

3шт.

37

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

3шт.

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT x 3/4" JIC, parts not shown

1шт.

41377

SPACER

CONNECTOR - 1/2" NPT male x 3/4" NPT female, parts not shown

1шт.
