Запчасти Case 320 (24) - 38256 LOADER HYDRAULIC CONTROL VALVE (00) - COMPLETE MACHINE

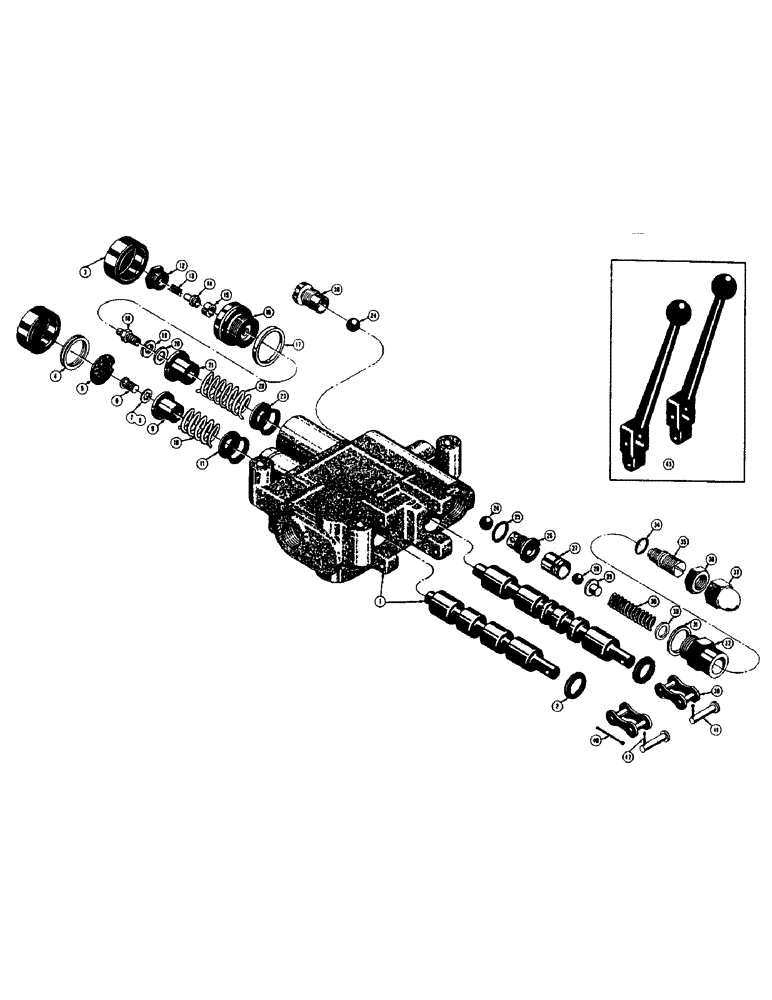

Схема запчастей Case 320 - (24) - 38256 LOADER HYDRAULIC CONTROL VALVE (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

NLS

NO LONGER SERVICED

VALVE - hydraulic, loader control

1шт.

1

5465

HOUSING AND SPOOLS - matched set (Use D24387, see Figure 26)

1шт.

2

36642

SEAL

- "O" ring, spool

4шт.

3

36645

CAP

- rubber, spool end

2шт.

4

36633

LID

SNAP RING - retaining, stop disc

1шт.

5

663023R1

CAP

- stop, spool

1шт.

6

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - centering spring

1шт.

7

36628

LOCK WASHER

- lock

2шт.

8

36644

X

WASHER - flat (Use 36628)

1шт.

9

CAS36630

COLLAR

- stop

1шт.

10

36632

SPRING

- centering

1шт.

11

36650

WASHER

- stop

1шт.

12

36656

CLIP

CAP - float detent spring

1шт.

13

36658

ROD

SPRING - float detent

1шт.

14

36654

PLUG

HOLDER - finger, float detent

1шт.

15

NLS

NO LONGER SERVICED

- float detent

3шт.

16

NLS

NO LONGER SERVICED

- float detent

1шт.

17

36666

WASHER

- float detent cap

1шт.

18

36651

NUT

ADAPTER - float detent

1шт.

19

36662

GEAR

WASHER - lock, float spool

1шт.

20

36661

SHAFT

WASHER - float spool

1шт.

21

36652

COLLAR

- float spring

1шт.

22

D32602

VALVE SPRING

- centering, 4 position spool

1шт.

23

36650

WASHER

- float stop

1шт.

24

O4896CS

BALL - check

2шт.

25

O8416AB

X

SEAL - "O" ring, valve seat

1шт.

26

36635

SHIELD

SEAT - relief valve

1шт.

27

D24392

COLLAR - jam

1шт.

28

O7210AB

X

BALL - relief valve

1шт.

29

CAS34120

BUSHING

SPACER - relief valve spring

1шт.

30

36659

SPRING

- relief valve

1шт.

31

34115

GASKET

- relief valve body

1шт.

32

34113

BODY

- relief valve

1шт.

33

36660

WASHER

- relief valve spring

1шт.

34

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

"O" RING - seal, adjusting screw

1шт.

35

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

36

34111

X

NUT - jam, relief valve adjusting screw

1шт.

37

34109

CAP - dust, relief valve

1шт.

38

36634

DISC

PLUG - check ball

1шт.

39

36640

DRAG LINK

LINK - valve lever

2шт.

40

132-13

PIN

- cotter (1/16" x 1-1/2")

2шт.

41

36627

SEAT

PIN - lever, control valve

2шт.

42

36625

X

PIN - cotter, lever pin (5/64" x 1/2")

2шт.

43

D23722

HANDLE

LEVER - valve

2шт.

Выбрано товаров: 44
