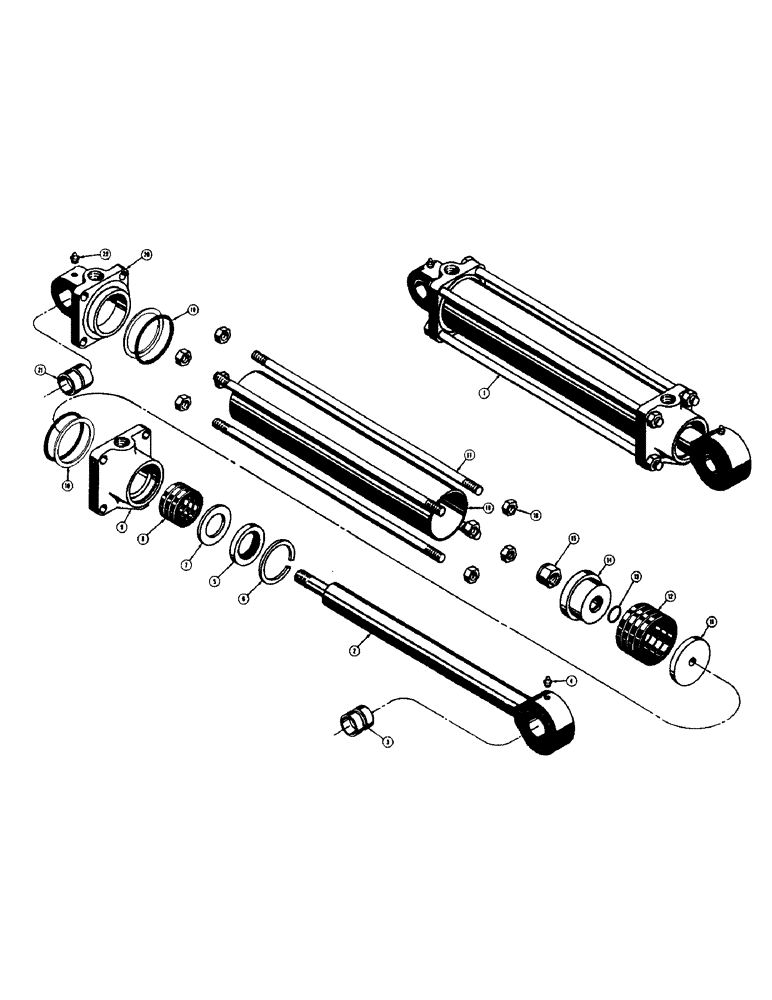

Запчасти Case 320 (18) - 35920 HYDRAULIC LOADER LIFT CYLINDERS (1-1/4" ROD) (00) - COMPLETE MACHINE

1

35920

SCREW

CYLINDER - loader lift, hydraulic (Use D20743 - see Figure (20)

2шт.

2

D20041

ROD - piston (1-1/4" dia.)

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (Lincoln #5000)

1шт.

5

17603

WIPER SEAL

- wiper, piston rod

1шт.

6

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

7

36259

WASHER

- packing, piston rod

1шт.

8

17597

PACKING

- piston rod

1шт.

9

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

30630

CARTRIDGE

WASHER - packing, piston

1шт.

12

17598

PACKING

- piston

1шт.

13

O3522CK

X

SEAL - "O" ring, piston rod (Used with D23738 piston only)

1шт.

14

30631

X

PISTON - cylinder (No "O" ring) (Use D23738, D23739, and O3522CK)

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) (When replacing 30631 piston without "O" ring, also order 1-O3522CK "O" ring and 1-D23739 lock nut)

1шт.

15

131-152

HARDWARE

NUT - lock, hex. (30631 piston only) (3/4-16 NF)

1шт.

D23739

LOCK NUT

NUT - lock, hex. (d23738 piston only) (3/4-16 NF)

1шт.

16

35927

TUBE - cylinder

1шт.

17

35929

ROD - tie

4шт.

18

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, hex. (1/2-20 NF)

8шт.

19

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

20

D20038

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (Lincoln #5000)

1шт.

D10257

KIT

- parts to convert one 35290 cylinder (1-1/4" dia. rod) To D20743 cylinder (1-1/2" dia. rod)

1шт.
