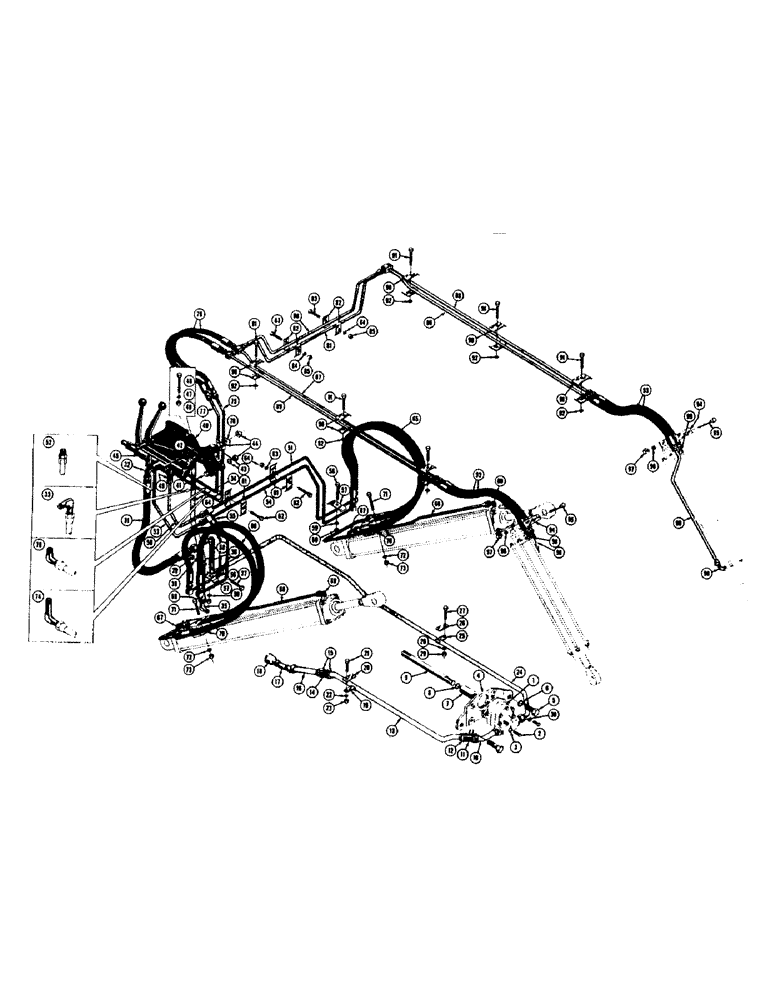

Запчасти Case 320 (14) - BASIC LOADER HYDRAULICS AND PUMP DRIVE (WHEEL TRACTOR) PUMP, CONTROL VALVE, & ASSOCIATED PARTS (00) - COMPLETE MACHINE

1

31615

CAP

PUMP - hydraulic, 15 G.P.M. (See Figure 58 for breakdown)

1шт.

2

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8-24 NF x 1-1/4

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

36283

BRACKET - pump mounting

1шт.

5

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

NLS

NO LONGER SERVICED

- hydraulic pump to drive shaft

1шт.

8

36281

X

SNAP RING - pump drive shaft coupling

1шт.

9

NLS

NO LONGER SERVICED

- drive, pump

1шт.

10

36492

HOSE

TUBE - reservoir to pump, front section

1шт.

11

36467

HOSE - connects 36492 and 36491 tubes (1" I.D. x 1-1/2" O.D. x 3" long)

1шт.

12

49766

AUGER

CLAMP - 36467 hose

2шт.

13

36491

WASHER

TUBE - reservoir to pump, center section

1шт.

14

36467

HOSE - connects 36491 and 36466 tubes (1" I.D. x 1-1/2" O.D. x 3" long)

1шт.

15

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 36467 hose

2шт.

16

36466

TUBE - reservoir to pump, rear section

1шт.

17

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree male, 1" JIC x 1" NPT

1шт.

18

221-357

COUPLING

BUSHING - reducing, 1-1/2" NPT to 1" NPT

1шт.

19

49782

CLAMP - 36491 tube

1шт.

20

36472

PLATE - mounting, 49782 clamp

1шт.

21

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

1шт.

24

36494

TUBE - pump to loader control valve

1шт.

25

49789

CLAMP

- 36494 tube

1шт.

26

36472

PLATE - mounting, 49789 clamp

1шт.

27

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

1шт.

30

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4" JIC x 3/4" NPT

1шт.

31

36502

HOSE

- pump pressure line to loader control valve (3/4" I.D. x 1-5/32" O.D. x 24-1/2" long)

1шт.

32

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" JIC x 3/4" NPT

1шт.

33

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" JIC x 3/4" NPT

1шт.

34

36470

TUBE - loader control, Serial Range: valve-reservoir

1шт.

35

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" JIC x 3/4" NPT

1шт.

36

32978

PLATE ASSY.

CLAMP - 36470 tube

2шт.

37

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2

1шт.

38

92-5

LOCK WASHER,5/16"

1шт.

39

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

40

36131

BRACKET - contorl valve mounting

1шт.

41

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2-20 NF x 1-3/4

1шт.

42

37818

HOSE

CAP SCREW - special, 1/2-20 NF x 3-1/2

2шт.

43

92-8

LOCK WASHER,1/2"

3шт.

44

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

5шт.

45

38256

PIN

VALVE - loader control, hydraulic (See Figure 24 for breakdown)

1шт.

D24387

SPOOL

VALVE - loader control, hydraulic (See Figure 26 for breakdown)

1шт.

46

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8-24 NF x 2-3/4

3шт.

47

92-6

LOCK WASHER,3/8"

3шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

3шт.

49

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, 1/2" JIC x 1/2" NPT, lift cylinder hyd.

1шт.

50

36289

CLUTCH

TUBE - to front part control valve, lift cyl. hyd.

1шт.

51

36295

CLIP

TUBE - upper manifold, lift cyl. hyd.

1шт.

52

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, 1/2" JIC x 1/2" NPT, lift cyl. hyd.

1шт.

53

36287

TUBE

- to rear part control valve, lift cyl. hyd.

1шт.

54

36297

TUBE - lower manifold, lift cyl. hyd.

1шт.

55

36291

TUBE - upper manifold to R.H. lift cylinder, hyd.

1шт.

56

36293

DRIVING SPROCKET

TUBE - lower manifold to R.H. lift cylinder, hyd.

1шт.

57

32978

PLATE ASSY.

CLAMP - 36291, 36293 tubes and 36295, 36297 tubes, lift cyl. hyd.

2шт.

58

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS- 5/16-24 NF x 1-1/2, lift cyl. hyd.

2шт.

59

92-5

LOCK WASHER,5/16"

lift cyl. hyd. 5/16"

2шт.

60

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), lift cyl. hyd.

2шт.

61

31665

COLLAR CLAMP

CLAMP - 36295 and 36297 tubes, lift cyl. hyd.

4шт.

62

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2, lift cyl. hyd.

2шт.

63

92-5

LOCK WASHER,5/16"

lift cyl. hyd. 5/16"

2шт.

64

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), lift cyl. hyd.

2шт.

65

36443

HOSE

- to rear port of lift cylinder (1/2" I.D. x 7/8" O.D. x 25" long), hyd.

2шт.

66

36445

HOSE - to front port of lift cylinder (1/2" I.D. x 7/8" O.D. x 27" long), hyd.

2шт.

67

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" JIC x 1/2" NPT, lift cyl hyd.

1шт.

D20359

TEE, lift cyl. hyd.

1шт.

221-832

X

PLUG - pipe, extended square head (1/4" NPT), lift cyl. hyd.

1шт.

68

36115

TUBE - to front port lift cylinder, hyd.

2шт.

69

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" JIC x 1/2" NPT, lift cyl. hyd.

2шт.

70

D20045

PLATE ASSY.

CLAMP - bottom of lift cylinder, hyd.

4шт.

71

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2, lift cyl. hyd.

2шт.

72

92-5

LOCK WASHER,5/16"

lift cyl. hyd. 5/16"

2шт.

73

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), lift cyl. hyd.

2шт.

74

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- long, 90 degree male, 1/2" JIC x 1/2" NPT, bucket cyl. hyd.

1шт.

75

36327

TUBE - rear port valve to dump cylinder, bucket hyd.

1шт.

76

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" JIC x 1/2" NPT, bucket cyl. hyd.

1шт.

77

36110

RING

TUBE - rear port valve to dump cylinder, bucket hyd.

1шт.

78

36801

GEAR

CLAMP - 36327 and 36110 tubes, bucket cyl. hyd.

1шт.

79

36212

HOSE

- valve to bucket cylinder, rear (1/2" I.D. x 7/8" O.D. x 23-1/2" long), hyd.

2шт.

80

36106

TYRE/TIRE

TUBE - manifold, upper, bucket cyl. hyd.

1шт.

81

36104

SEAL

TUBE - manifold, lower, bucket cyl. hyd.

1шт.

82

32978

PLATE ASSY.

CLAMP - 36106 and 36104 tubes, bucket cyl. hyd.

4шт.

83

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Bucket cylinder hyd. Hex, 5/16"-24 x 1 1/4", G5

2шт.

84

92-5

LOCK WASHER,5/16"

bucket cyl. hyd. 5/16"

2шт.

85

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), bucket cyl. hyd.

2шт.

86

36322

TUBE - to L.H. bucket cylinder (Inner), hyd.

1шт.

87

36323

TUBE - to R.H. bucket cylinder (Inner), hyd.

1шт.

88

36324

TUBE - to L.H. bucket cylinder (Outer), hyd.

1шт.

89

36325

TUBE - to R.H. bucket cylinder (Outer), hyd.

1шт.

90

32978

PLATE ASSY.

CLAMP - 36322, 36323 tubes and 36324, 36325 tubes, bucket cyl. hyd.

12шт.

91

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2, bucket cyl. hyd.

6шт.

92

92-5

LOCK WASHER,5/16"

bucket cyl. hyd. 5/16"

6шт.

93

36210

HOSE

- valve to bucket cylinder, front (1/2" I.D. x 7/8" O.D. x 21-1/2" long), hyd.

4шт.

94

31665

COLLAR CLAMP

CLAMP - 36210 hose, bucket cyl. hyd.

4шт.

95

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Bucket cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

2шт.

96

92-5

LOCK WASHER,5/16"

bucket cyl. hyd. 5/16"

2шт.

97

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), bucket cyl. hyd.

2шт.

98

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" JIC x 1/2" NPT, bucket cyl. hyd.

4шт.

99

36108

O-RING

TUBE - to bucket cylinder front port, hyd.

2шт.
