Запчасти Case 320 (12) - BULL DOZER BLADE ATTACHMENT (00) - COMPLETE MACHINE

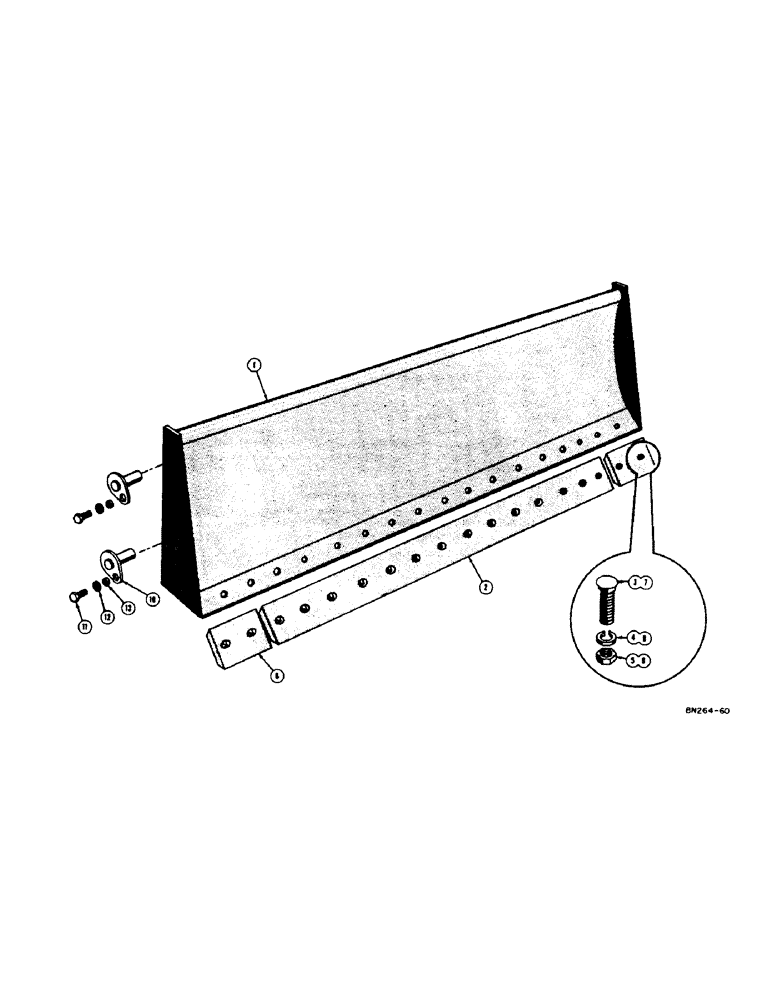

Схема запчастей Case 320 - (12) - BULL DOZER BLADE ATTACHMENT (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

D10194M

BLADE - bull dozer (Machinery item)

1шт.

1

D20567

MOLDBOARD (Use D10194M)

1шт.

2

NLS

NO LONGER SERVICED

EDGE - cutting, center

1шт.

3

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, #3 head (1/2-13 NC x 1-3/4)

14шт.

4

92-8

LOCK WASHER,1/2"

14шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2-13 NC)

14шт.

6

38150

EDGE

- cutting, end

2шт.

7

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, #3 head (1/2-13 NC x 1-3/4)

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2-13 NC)

4шт.

10

D21235

PIN - pivot, blade to lift arms and cylinders

4шт.

11

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

4шт.

12

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

13

D23740

BUSHING

SPACER - lockhead pin bolt

4шт.

Выбрано товаров: 14
