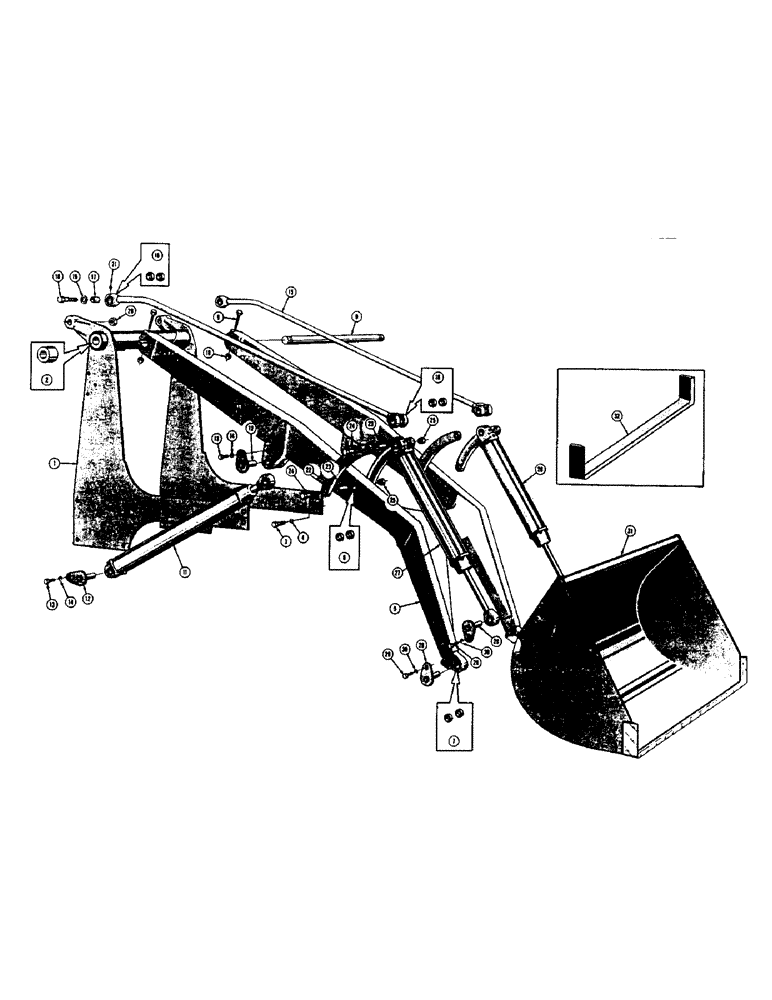

Запчасти Case 320 (10) - WHEEL LOADER FRAME, LIFT ARM, BUCKETS, AND CYLILNDERS (00) - COMPLETE MACHINE

1

36246

FRAME - loader

1шт.

2

36043

PIPE FITTING

BUSHING - pivot shaft

2шт.

3

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

36153

ARM - loader, main lift

1шт.

6

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- leveling linkage

4шт.

7

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket pivot

4шт.

8

36071

PRESSURE PIPE

SHAFT - pivot

1шт.

9

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

HHCS - 5/8-18 NF x 3-1/2

2шт.

10

131-154

LOCK NUT,5/8"-18, GA

NUT - lock, hex. (5/8-18 NF)

2шт.

11

35920

SCREW

CYLINDER - loader lift, hydraulic (1-1/4" dia. piston rod) Use D20743 (See Figure 18 for breakdown)

2шт.

D20743

CYLINDER - loader lift, hydraulic (1-1/2" dia. piston rod) (See Figure 20 for breakdown)

2шт.

12

36117

PIN - pivot, lift cylinder (Upper and lower)

4шт.

13

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

4шт.

14

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

D23740

BUSHING

- lockhead pin bolt (If used)

4шт.

15

36261

ROD - leveling

2шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- leveling rod

4шт.

17

30959

BUSHING - leveling rod, rear

2шт.

D20008

WASHER - spacer (Not shown)

1шт.

18

14-1672

BOLT,Hex, 1" - 14 x 4-1/2", Gr 5

HHCS - 1-14 NF x 4-1/2

2шт.

19

195-53

WASHER,1" x 2" x .134"

- plain, leveling rod bolt (17/32" I.D. x 1-1/16" O.D.)

2шт.

20

131-370

LOCK NUT

NUT - lock (1-14 NF)

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight (Lincoln #5000)

4шт.

22

36073

LINK - idler

4шт.

23

31146

SPACER - idler link

4шт.

24

14-1488

BOLT,Hex, 7/8" - 14 x 5-1/2", Gr 5

HHCS - 1-14 NF x 5-1/2

4шт.

25

131-370

LOCK NUT

NUT - lock (1-14 NF)

4шт.

26

36024

WHEEL GEAR

CYLINDER - bucket dump, hydraulic (L.H.) (See Figure 22 for breakdown)

1шт.

27

36025

CYLINDER - bucket dump, hydraulic (R.H.) (See Figure 22 for breakdown)

1шт.

28

D21235

PIN - bucket cylinder and loader, Serial Range: arm-bucket

4шт.

29

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1

4шт.

30

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

D23740

BUSHING

- lockhead pin bolt (If used)

4шт.

31

35907M

BUCKET - loader (13 cu. ft.) (Machinery item)

1шт.

32

35912

BLADE - cutting, 35907M bucket

1шт.

31

39711M

BUCKET - loader (21 cu. ft.) (Machinery item)

1шт.

32

39700

GASKET

BLADE - cutting, 39711M bucket

1шт.
