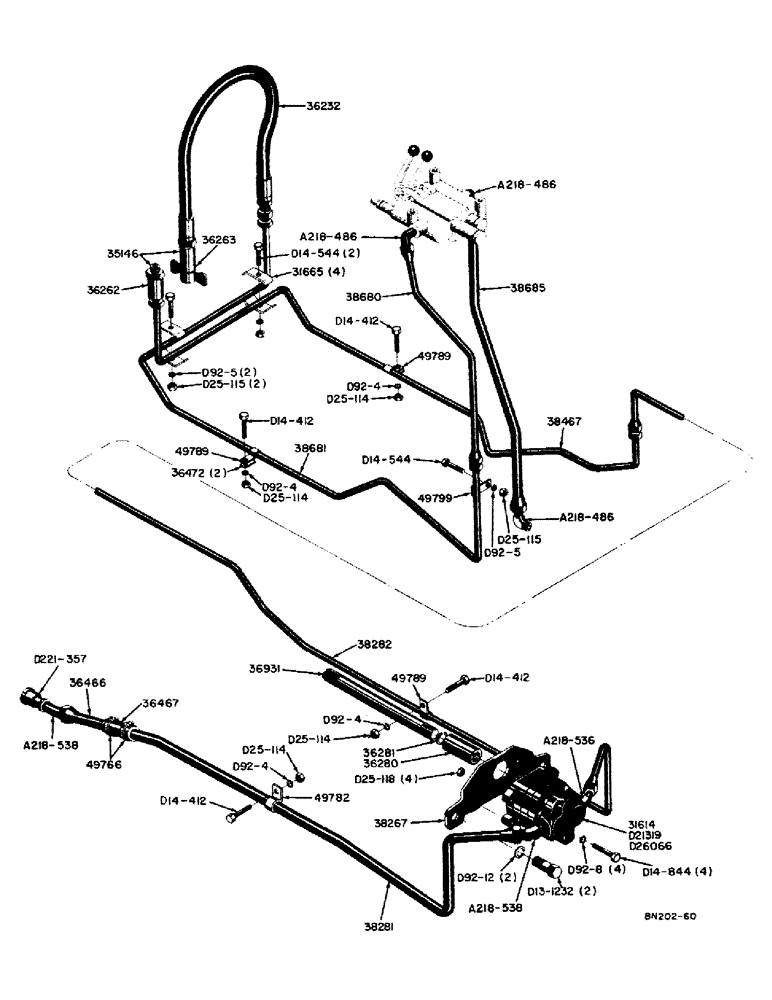

Запчасти Case 310 (16) - BASIC BACKHOE HYDRAULICS AND PUMP DRIVE

31614

PUMP - hydraulic, 19 G.P.M. (See Figure 64 for breakdown) Original equipment only - Use D21319 or D26066

1шт.

1/2" - 20 X 2-3/4" NF HEX. HD. CAP SCREW (D14-844)

4шт.

1/2" LOCKWASHER (D92-8)

4шт.

1/2" - 20NF HEX. NUT (D25-118)

4шт.

31665

COLLAR CLAMP

CLAMP - 38467 and 38681 tubes

4шт.

5/16" - 24 X 2-3/4" NF HEX. HD. CAP SCREW (D14-544)

2шт.

5/16" LOCKWASHER (D92-5)

2шт.

5/16" - 24NF HEX. NUT (D25-115)

2шт.

35146

DISCONNECT - quick (Includes 1 - 36262 and 1 - 36263 halves)

1шт.

36232

HOSE ASSY.

HOSE - valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 32" long)

1шт.

36262

DISCONNECT - quick, male half (See 35146)

1шт.

36263

DISCONNECT - quick, female half (See 35146)

1шт.

36280

COUPLING

- hydraulic pump to drive shaft

1шт.

36281

X

SNAP RING - pump drive shaft coupling

1шт.

36466

TUBE - pump to reservoir (Rear section)

1шт.

1" JIC X 1" NPT 45 DEGREE MALE ELBOW (A218-538)

1шт.

1-1/2" NPT X 1" NPT REDUCING BUSHING (D221-357)

1шт.

36467

HOSE - connects 36466 and 38281 tubes (1" I.D. x 1-1/2" O.D. x 3" long)

1шт.

36472

PLATE - mounting, 49782 and 49789 tube clamps

2шт.

36931

X

SHAFT - drive, pump

1шт.

38267

BRACKET - pump mounting

1шт.

7/16" - 14 X 1-3/8" NC HEX. HD. CAP SCREW (D13-722)

4шт.

7/16" LOCKWASHER (D92-7)

4шт.

15/32" I.D. X 59/64" O.D. WASHER (R195-29)

4шт.

3/4" - 10 X 2" NC HEX. HD CAP SCREW (D13-1232)

2шт.

3/4" LOCKWASHER (D92-12)

2шт.

38281

TUBE - pump to reservoir (Front section)

1шт.

1" JIC X 1" NPT 45 DEGREE MALE ELBOW (A218-538)

1шт.

38282

TUBE - pump to backhoe control valve, front section

1шт.

3/4" JIC X 3/4" NPT 45 DEGREE MALE ELBOW (A218-536)

1шт.

38467

TUBE - pump to backhoe control valve, rear section

1шт.

38680

WASHER

TUBE - backhoe control valve to loader control valve, front section

1шт.

3/4" JIC X 3/4" NPT 90 DEGREE MALE ELBOW (A218-486)

1шт.

38681

TUBE - backhoe control valve to loader control valve, rear section

1шт.

38685

HOSE - loader control valve to reservoir (3/4" I.D. x 1-1/4" O.D. x 27" long)

1шт.

3/4" JIC X 3/4" NPT 90 DEGREE MALE ELBOW (A218-486)

2шт.

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 36467 hose

2шт.

49782

CLAMP - 38281 tube

1шт.

1/4" - 28 X 3/4" NF HEX. HD. CAP SCREW (D14-412)

1шт.

1/4" LOCKWASHER (D92-4)

1шт.

1/4" - 28NF HEX. NUT (D25-114)

1шт.

49789

CLAMP

- 38282, 38467, and 38681 tubes

4шт.

1/4" - 28 X 3/4" NF HEX. HD. CAP SCREW (D14-412)

4шт.

1/4" LOCKWASHER (D92-4)

4шт.

1/4" - 28NF HEX. NUT (D25-114)

4шт.

51200329

CLIP

CLAMP - 38467 tube beneath backhoe control valve

1шт.

5/16" - 24 x 2-3/4" NF HEX. HD. CAP SCREW (D14-544)

1шт.

5/16" LOCKWASHER (D92-5)

1шт.

5/16" - 24NF HEX. NUT (D25-115)

1шт.

D21319

PUMP - hydraulic, 19 G.P.M. (See Figure 66 for breakdown) Replacment only - See 31614 and D26066

1шт.

D26066

PUMP - hydraulic, 19 G.P.M. (Heavy duty) (See Figure 68 for breakdown) Replacement only - See 31614 and D21319.

1шт.
