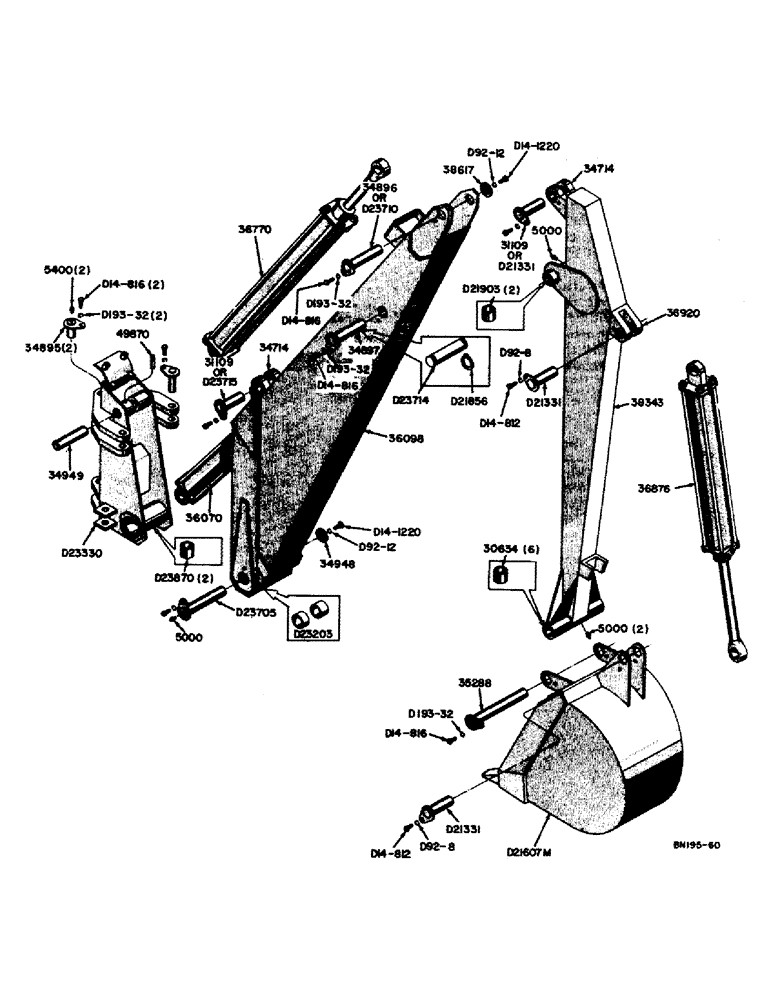

Запчасти Case 310 (10) - TOWER, BOOM, DIPPER ARM, AND BUCKETS, TOWER AND BOOM

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- boom, upper (Late production only) (See D20201)

2шт.

31109

PIN ASSY.

PIN - pivot, crowd cylinder to boom (Use D23715 and D21856)

1шт.

1/2" - 20 X 3/4" NF HEX. HD CAP SCREW (D14-812)

1шт.

1/2" LOCKWASHER (D92-8)

1шт.

31139

X

BUSHING - tower, boom pivot (Use D23870)

2шт.

34714

BRAKE SHOE

ANCHOR - crowd cylinder

1шт.

34895

PIN - pivot, mounting bracket to tower (See D23740)

2шт.

1/8" NPT GREASE FITTING, 90 degree (Lincoln #5400)

2шт.

1/2" - 20 X 1" NF HEX. HD. CAP SCREW (D14-816)

2шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32)

2шт.

34896

PIN - pivot, dipper arm to boom (Use D23710)

1шт.

1/2" - 20 X 1" NF HEX. HD. CAP SCREW (D14-816)

1шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32)

1шт.

34897

PIN - pivot, boom cylinder (Upper) (Use D23714 and D21856)

1шт.

1/2" - 20 X 1" NF HEX. HD. CAP SCREW (D14-816)

1шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32)

1шт.

34948

WASHER - boom pivot pin (3" O.D. x 13/16" I.D.)

1шт.

3/4" - 16 X 1-1/4" NF HEX. HD. CAP SCREW (D14-1220)

1шт.

3/4" LOCKWASHER (D92-12)

1шт.

34949

PIN - pivot, boom cylinder (Lower)

1шт.

36070

TOY

CYLINDER - boom, hydraulic (See Figure 30 for breakdown)

1шт.

36098

BOOM - (Includes 2 - D23203 and 2 - 30613 bushings; 1 - 34714 anchor)

1шт.

36113

TRACK ROD ASSY

TOWER - backhoe (Use D23330)

1шт.

36156

PIN - pivot, boom to tower (Use D23705)

1шт.

1/8" NPT STRAIGHT GREASE FITTING (Lincoln #5000)

1шт.

38617

WASHER - boom to dipper arm pivot pin (2-1/2" O.D. x 1-17/32" I.D.)

1шт.

3/4" - 16 X 1-1/4" NF HEX. HD. CAP SCREW (D14-1220)

1шт.

3/4" LOCKWASHER (D92-12)

1шт.

49870

BOLT

PIN - lock, boom cylinder lower pivot pin

1шт.

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D23714 and D23715 pins #X137, 1.268" Dia, E-Type

4шт.

D23203

BUSHING

- boom, lower

2шт.

D23330

TOWER - backhoe (Includes 2 - D23870 bushings)

1шт.

D23705

PIN - pivot, boom to tower (See D26500)

1шт.

D23710

PIN

- pivot, dipper arm to boom (See D26501)

1шт.

D23714

PIN - pivot, boom cylinder (Upper)

1шт.

D23715

PIN - pivot, crowd, Serial Range: cylinder-boom

1шт.

D23740

BUSHING

- lockhead pins (If used)

2шт.

D23870

BUSHING

- tower, boom pivot

2шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dipper arm

6шт.

31109

PIN ASSY.

PIN - pivot, crowd cylinder to dipper arm and bucket (Use D21331)

2шт.

31148

BUSHING - dipper arm to boom pivot (Use D21903)

2шт.

34714

BRAKE SHOE

ANCHOR - crowd cylinder on dipper arm (See 36920)

1шт.

35288

PIN - pivot, bucket to dipper arm

1шт.

1/2" - 20 X 1" NF HEX. HD. CAP SCREW (D14-816), dipper arm

1шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32), dipper arm

1шт.

36770

CYLINDER - crowd, hydraulic (See Figure 32 for breakdown), dipper arm

1шт.

36876

CYLINDER - bucket, hydraulic (See Figure 34 for breakdown), dipper arm

1шт.

36920

ANCHOR - bucket cylinder on dipper arm (See 34714)

1шт.

38343

HOSE

ARM - dipper (Includes 2 - D21903 and 6 - 30634 bushings; 1 - 34714 and 1 - 36920 anchors), arm

1шт.

1/8" NPT STRAIGHT GREASE FITTING (Lincoln #5000), dipper arm

2шт.

D21331

PIN - pivot, crowd cylinder to dipper arm and bucket, dipper arm

2шт.

1/2" - 20 X 3/4" NF HEX. HD. CAP SCREW (D14-812), dipper arm

2шт.

1/2" LOCKWASHER (D92-8), dipper arm

2шт.

D21607M

BUCKET - backhoe, 24" trenching (See Figure 14 for other buckets), dipper arm

1шт.

D21903

BUSHING

- dipper arm to boom pivot

2шт.

D23740

BUSHING

- lock head pin retaining bolt, dipper arm

2шт.

34948

WASHER - pivot pin (3" O.D. x 13/16" I.D.), parts for boom when equipped with D11011 reconditioning kit

1шт.

3/4" - 10 X 1-1/4" NC HEX. HD. CAP SCREW (R13-1220), parts for boom when equipped with D11011 reconditioning kit

1шт.

3/4" LOCKWASHER (D92-12), parts for boom when equipped with D11011 reconditioning kit

1шт.

38617

WASHER - to dipper arm pivot pin (2-1/2" O.D. x 1-17/32" I.D.), parts for boom when equipped with D11011 reconditioning kit

1шт.

3/4" - 10 X 1-1/4" NC HEX. HD. CAP SCREW (R13-1220), parts for boom when equipped with D11011 reconditioning kit

1шт.

3/4" lockwasher (D92-12), parts for boom when equipped with D11011 reconditioning kit

1шт.

D20201

BUSHING

- upper (Required in addition to 30613 bushing - if 30613 is used), parts for boom when equipped with D11011 reconditioning kit

2шт.

D23203

BUSHING

- lower (Required in addition to D23203 bushings listed above), parts for boom when equipped with D11011 reconditioning kit

2шт.

D26500

PIN - pivot, to tower (See D23705), parts for boom when equipped with D11011 reconditioning kit

1шт.

D26501

PIN - pivot, dipper arm to boom (See D23710), parts for boom when equipped with D11011 reconditioning kit

1шт.
