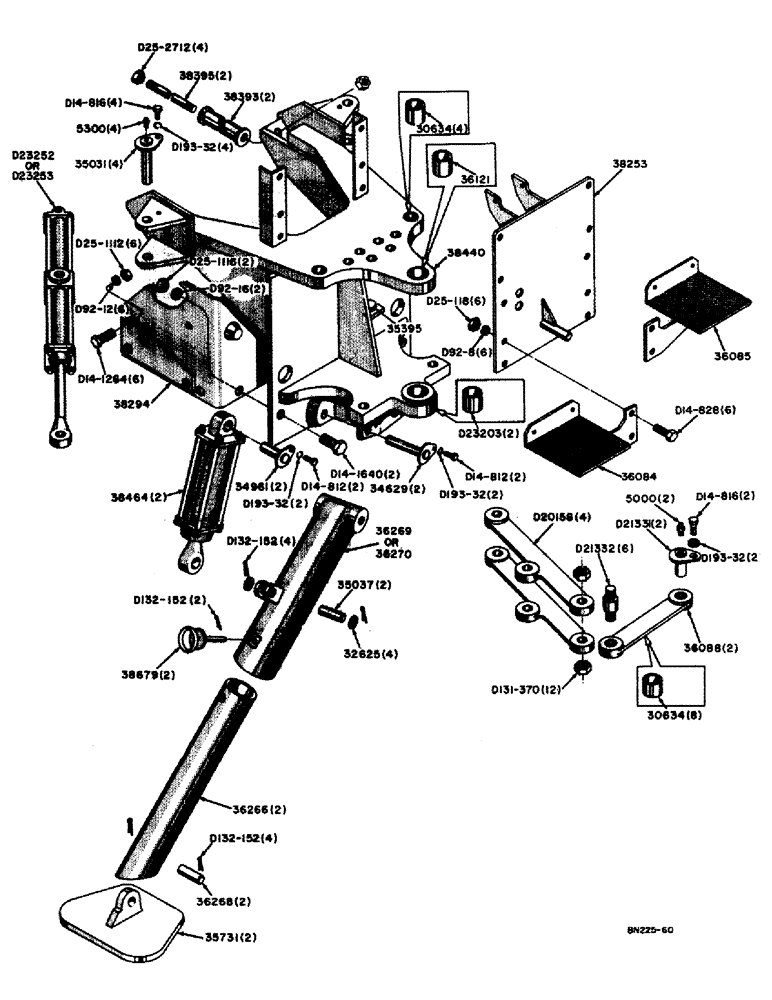

Запчасти Case 310 (06) - MOUNTING PARTS, SWING LINKAGE, AND STABILIZERS, MOUNTING PARTS

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- mounting bracket for swing link

4шт.

35395

PIN - transport locking (Includes chain)

1шт.

36084

SCREW

REST - foot, L.H.

1шт.

36085

O-RING

REST - foot, R.H.

1шт.

36121

BUSHING

- mounting bracket, Upper tower pivot

1шт.

38253

CLEVIS

PLATE - mounting, Control valve

1шт.

1/2" - 20 X 1-3/4" NF HEX HD. CAP SCREW (D14-828)

6шт.

1/2" - LOCKWASHER (D92-8)

6шт.

1/2" - 20NF HEX. NUT (D25-118)

6шт.

38294

PLATE - mounting

1шт.

3/4" - 16 X 4" NF HEX HD. CAP SCREW (D14-1264)

6шт.

3/4" LOCKWASHER (D92-12)

6шт.

3/4" - 16NF HEX. NUT (D25-1112)

6шт.

38393

TUBE - spacer, tie rod

2шт.

38395

ROD - tie, mounting bracket

2шт.

3/4" - 16NF HEX. LOCK NUT (D25-2712)

4шт.

38440

BRACKET - mounting (Includes 4-30634, 1-36121, and 2-D23203 bushings)

1шт.

1" - 14 X 2-1/2" NF HEX. HD. CAP SCREW (D14-1640)

2шт.

1" LOCKWASHER (D92-16)

2шт.

1" - 14NF HEX. NUT (D25-1116)

2шт.

70446

BUSHING - mounting bracket, lower tower pivot (Use D23203)

2шт.

D23203

BUSHING

- mounting bracket, lower tower pivot

2шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- for 36088 swing cylinders and links

8шт.

35031

PIN

- pivot, swing cylinders and links

4шт.

1/8" NPT GREASE FITTING, 67-1/2 degrees (Lincoln #5300), swing cylinders and links

4шт.

1/2" - 20 x 1" NF HEX. HD. CAP SCREW (D14-816), swing cylinders and links

4шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32), swings cylinders and links

4шт.

36088

(Includes 4 - 30634 bushings), swing cylinders and links

2шт.

36117

PIN - swing link to tower (Use D21331), swing cylinders

2шт.

36260

X

BOLT - swing links to cylinder (Use D21332), swing cylinders

2шт.

1" X 14NF HEX. LOCK NUT (D131-370), swing cylinders and links

4шт.

38374

WASHER

hydraulic (L.H.) (Use D23252) Has 3" O.D. tube - See Figure 27 for breakdown, swing cylinders and links

1шт.

38375

hydraulic (R.H.) (Use D23253) Has 3" O.D. tube - See Figure 27 for breakdown, swing cylinders and links

1шт.

D20158

swing cylinders and links

4шт.

D21331

PIN - tower, swing cylinders and links

2шт.

1/8" NPT STRAIGHT GREASE FITTING (Lincoln #5000), swing cylinders and links

2шт.

1/2" - 20 X 1" NF HEX. HD. CAP SCREW (D14-816), swing cylinders and links

2шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32), swing cylinders and links

2шт.

D21332

BOLT - swing, D20158 link, cylinders

4шт.

1" - 14NF HEX. LOCK NUT (D131-370), swing cylinders and links

8шт.

1/8" NPT STRAIGHT GREAST FITTING (Lincoln #5000), swing cylinders and links

4шт.

D23252

hydraulic (L.H.) Has 2-7/8" O.D. tube - See Figure 26 for breakdown, swing cylinders and links

1шт.

D23253

hydraulic (R.H.) Has 2-7/8" O.D. tube - See Figure 26 for breakdown, swing cylinders and links

1шт.

D23740

BUSHING

- lockhead pin retaining bolt (Used on 35031 and D21331 pins), swing cylinders and links

6шт.

32625

WASHER - stabilizer cylinder pin (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick), swing cylinders and links

4шт.

34629

PIN - pivot, stabilizer arm mounting, swing cylinders and links

2шт.

1/2" - 20 X 3/4 " NF HEX. HD. CAP SCREW (D14-812), swing cylinders and links

2шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32), swing cylinders and links

2шт.

34961

PIN - pivot, stabilizer cylinder (Upper), swing cylinders and links

2шт.

1/2" - 20 X 3/4" NF HEX. HD. CAP SCREW (D14-812), swing cylinders and links

2шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32), swing cylinders and links

2шт.

35037

PIN - pivot, stabilizer cylinder to arm, swing cylinders links

2шт.

1/4' X 1-3/4" COTTER PIN (D132-152), swing cylinders and links

4шт.

36266

LEG - stabilizer, swing cylinders and links

2шт.

36268

SPRING

PIN - pivot, foot to leg, swing cylinders and links

2шт.

1/4" X 1-3/4" COTTER PIN (D132-152), swing cylinders and links

4шт.

1/4" X 2" ROLL PIN (B138-142), swing cylinders and links

4шт.

35731

BUSHING

FOOT - stabilizer, swing cylinders and links

2шт.

36269

ARM - stabilizer, R.H., swing cylinders and links

1шт.

36270

ARM - stabilizer, L.H., swing cylinders and links

1шт.

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic (See Figure 28 for breakdown), swing cylinders and links

2шт.

38679

PIN - stabilizer arm to leg, swing cylinders and links

2шт.

1/4" X 1-3/4" COTTER PIN (D132-152) IF USED, swing cylinders and links

2шт.

D23740

BUSHING

- lockhead pin retaining bolt (Used on 34629 and 34961 pins), swing cylinders and links

4шт.
