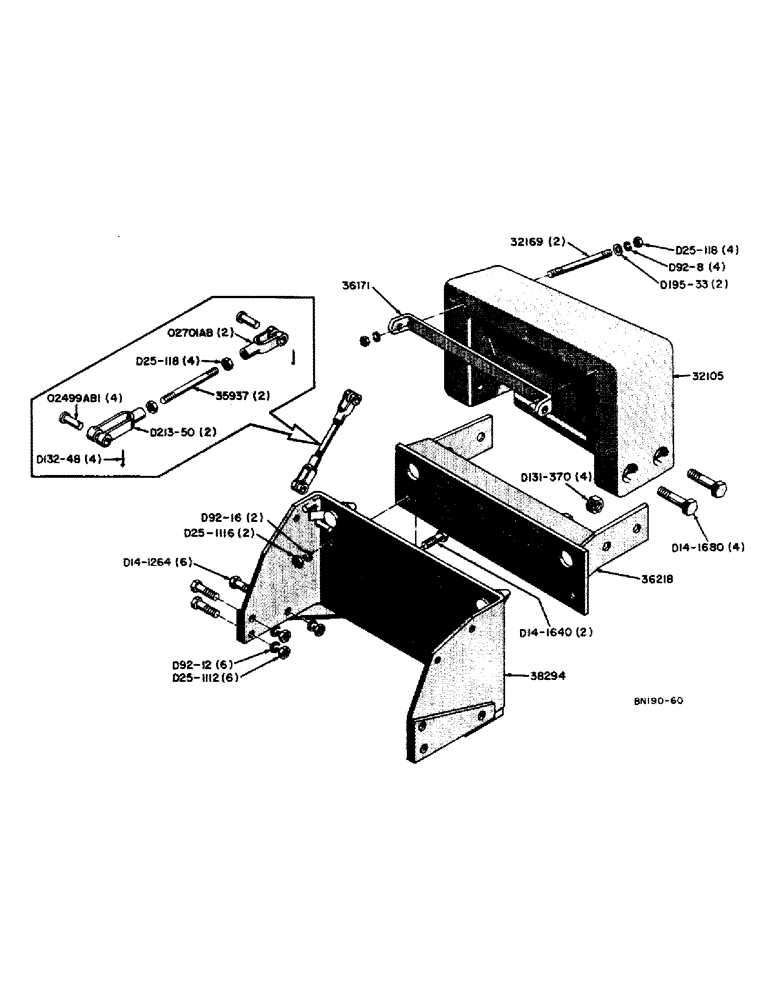

Запчасти Case 310 (72) - 900 LB. REAR COUNTER WEIGHT

O2499AB1

X

PIN - yoke

4шт.

1/8" X 1" COTTER PIN (D132-48)

4шт.

O2701AB

X

YOKE - stabilizer rod, upper

2шт.

D213-50

YOKE - stabilizer rod, lower

2шт.

32105

WEIGHT - counter (900 lb.)

1шт.

1" - 14 X 5" NF HEX. HD. CAP SCREW (D14-1680)

4шт.

1" - 14NF HEX. LOCK NUT (D131-370)

4шт.

32169

GEAR

BOLT - support, rod

2шт.

1/2" SAE WROT WASHER (D195-33)

2шт.

1/2" LOCKWASHER (D92-8)

4шт.

1/2" - 20NF HEX. NUT (D25-118)

4шт.

35937

HUB

ROD - stabilizer

2шт.

1/2" - 20NF HEX. NUT (D25-118)

4шт.

36171

BRACKET - yoke mounting

1шт.

36218

BRACKET - mounting

1шт.

1" - 14 X 2-1/2" NF HEX. HD. CAP SCREW (D14-1640)

2шт.

1" LOCKWASHER (D92-16)

2шт.

1" - 14NF HEX. NUT (D25-1116)

2шт.

38294

PLATE - mounting

1шт.

3/4" - 16 X 4" NF HEX. HD. CAP SCREW (D14-1264)

6шт.

3/4" LOCKWASHER (D92-12)

6шт.

3/4" - 16NF HEX. NUT (D25-1112)

6шт.
