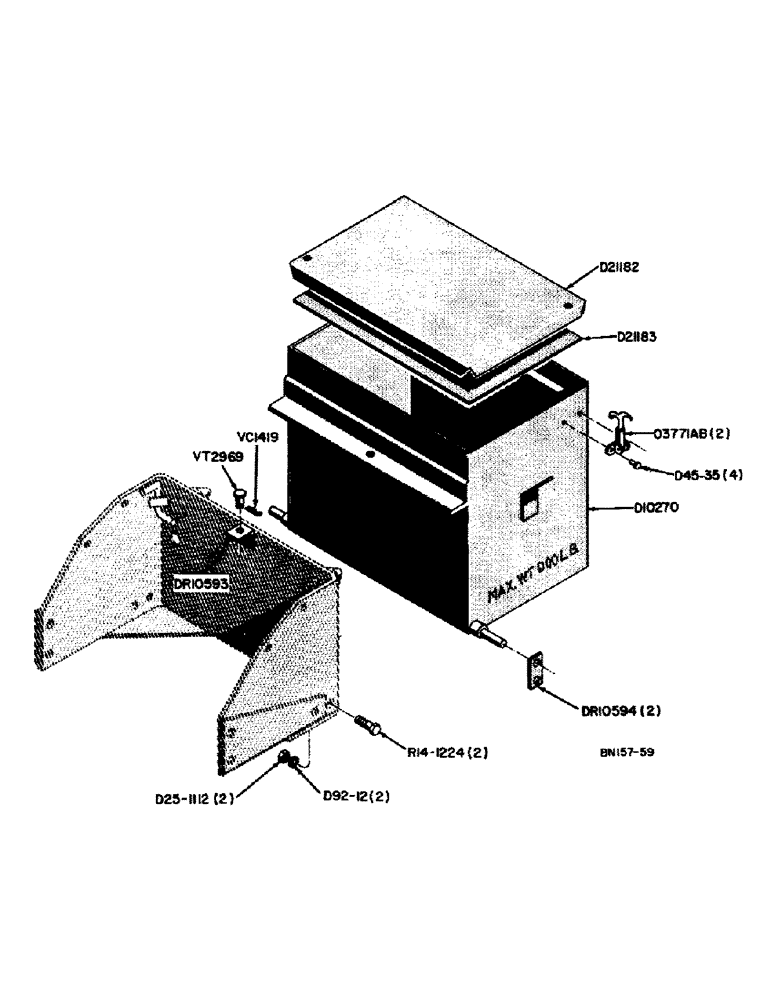

Запчасти Case 310 (71) - 900 LB. WEIGHT BOX (TRACTOR WITH BACKHOE REMOVED)

O3771AB

X

CATCH - lid

2шт.

3/16" X 5/16" BUTTON HEAD RIVET (D45-35)

4шт.

VT2969

X

PIN - upper bracket

1шт.

VC1419

X

PIN - hair

1шт.

D10270

BOX - weight (900 lb.) (Includes lid, shelf, and catches)

1шт.

D21182

LID - weight box

1шт.

D21183

SHELF - weight box

1шт.

DR10593

BRACKET - upper (Welded to mounting plate)

1шт.

DR10594

STRAP - support, lower

2шт.

3/4" - 16 X 1-1/2" NF HEX. HD. CAP SCREW (R14-1224)

2шт.

3/4" LOCKWASHER (D92-12)

2шт.

3/4" - 16NF HEX. NUT (D25-1112)

2шт.
