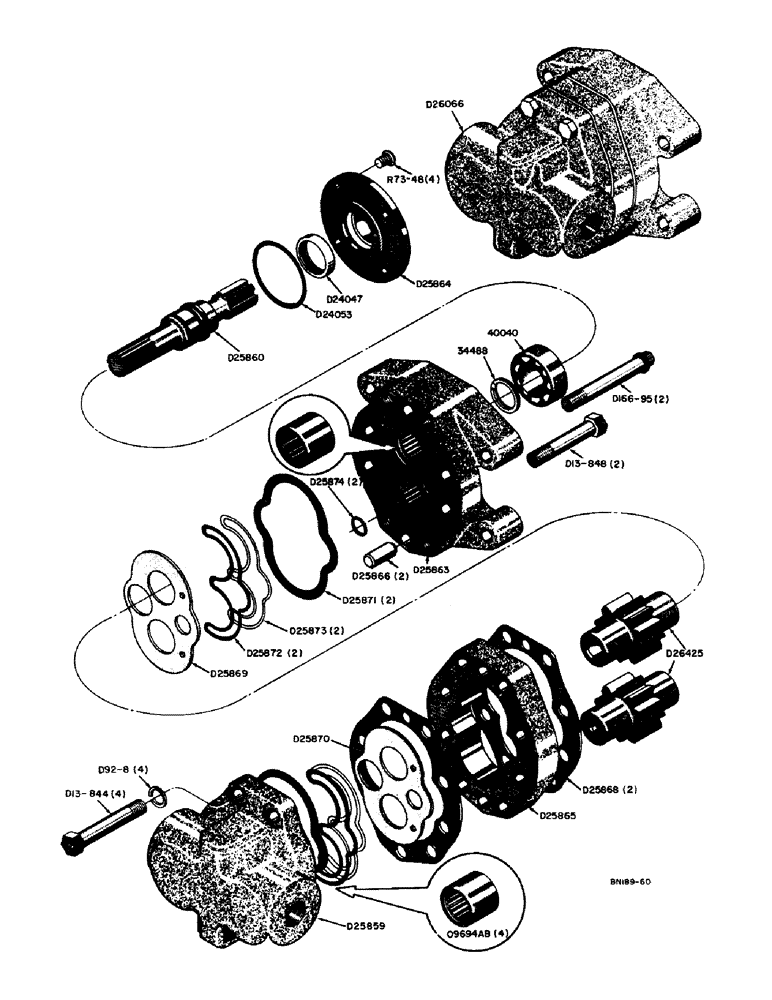

Запчасти Case 310 (68) - D26066 HEAVY DUTY HYDRAULIC PUMP (19 G.P.M.)

O9694AB

X

BEARING - needle (Pump cover and body) (Torrington #B2020)

4шт.

34488

RING, SNAP

SNAP RING - bearing retaining

1шт.

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

- ball, drive shaft (New Departure #3206)

1шт.

D24047

SEAL

- oil, drive shaft (Double lip)

1шт.

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

SEAL - "O" ring, pilot plate

1шт.

D25859

COVER - pump (Includes 2 - 09694AB bearings)

1шт.

1/2" - 13 X 2-3/4" NC HEX. HD. CAP SCREW (D13-844)

4шт.

1/2" LOCKWASHER (D92-8)

4шт.

D25860

SHAFT - pump drive

1шт.

D25863

BODY - pump (Includes 2 - 09694AB bearings)

1шт.

1/2" - 13 X 3" NC HEX. HD. CAP SCREW (D13-848)

2шт.

1/2" - 13 X 3-1/2" NC COUNTERBORE HEAD CAP SCREW (D166-95)

2шт.

D25864

PLATE - pilot (Includes 1 - D24047 seal)

1шт.

1/4" - 20 X 1/2" NF FLAT HD. MACHINE SCREW (R73-48)

4шт.

D25865

PLATE - gear

1шт.

D25866

PIN - dowel

2шт.

D25868

PLATE

- retaining

2шт.

D25869

PLATE

- wear (Smooth -, Serial Range: next-body)

1шт.

D25870

PLATE

- wear (Grooved -, Serial Range: next-cover)

1шт.

D25871

SEAL

- retaining plate

2шт.

D25872

RING

- sealing

2шт.

D25873

RING - backup, plastic

2шт.

D25874

X

SEAL - "O" ring

2шт.

D26066

PUMP - hydraulic, complete (Webster #2JES 1-L)

1шт.

D26425

GEARS - set of, drive and driven

1шт.
