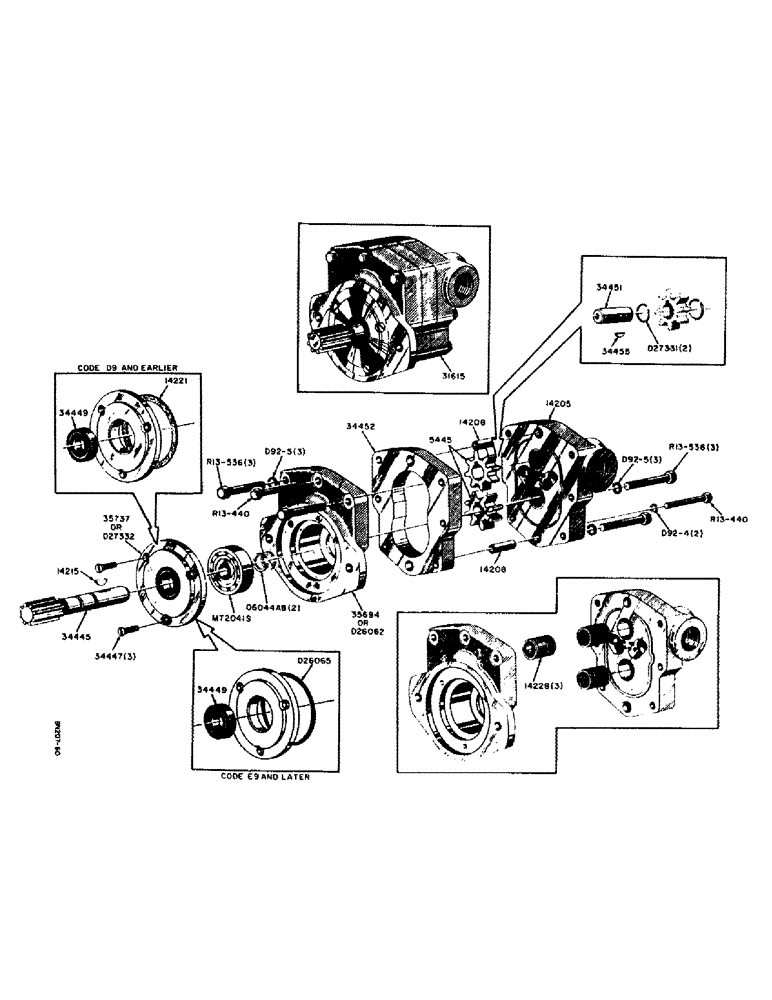

Запчасти Case 310 (62) - 31615 HYDRAULIC PUMP (15 G.P.M.)

O6044AB

X

SNAP RING - drive gear

2шт.

MT2041S

BEARING

- ball, drive shaft (N.D. #5204)

1шт.

5445

GEAR-SET

GEARS - set of, drive and driven

1шт.

14205

SCREWDRIVER

COVER - pump (Includes 2 - 14228 bearings)

1шт.

1/4" - 20 X 2-1/2" NC HEX. HD. CAP SCREW (R13-440)

2шт.

1/4" LOCKWASHER (D92-4)

2шт.

5/16" - 18 X 2-1/4" NC HEX. HD. CAP SCREW (R13-536)

3шт.

5/16" LOCKWASHER (D92-5)

3шт.

NLS

NO LONGER SERVICED

PIN - dowel

2шт.

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

gear to drive shaft #7, 1/8" x 3/4", HT

1шт.

14221

GASKET

- pilot plate (Code D9 and earlier pumps only) See D26065

1шт.

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle (Torrington #B1212)

3шт.

31615

CAP

PUMP - hydraulic, complete (Webster #3HCS-4L)

1шт.

34445

SHIELD

- drive, pump

1шт.

34447

X

SCREW - pilot plate

3шт.

34449

OIL SEAL

SEAL - oil, drive shaft

1шт.

34451

SHAFT - idler

1шт.

34452

PLATE - gear

1шт.

34455

HOOK

KEY - Woodruff, driven gear to idler shaft

1шт.

NLS

NO LONGER SERVICED

BODY - pump (Includes 1 - 14228 bearing) (Code D9 and earlier pumps only) Use D26062, D27332, and D26065

1шт.

35737

LEVER

PLATE - pilot (Includes 1 - 14221 gasket and 1 - 34449 seal) (Code D9 and earlier pumps only) See D27332

1шт.

D26062

SHIN

BODY - pump (Includes 1 - 14228 bearing) (Code E9 and later pumps only) See 35694

1шт.

5/16" - 18 X 2-1/4" NC HEX. HD. CAP SCREW (R13-536)

3шт.

5/16" LOCKWASHER (D92-5)

3шт.

D26065

X

SEAL - "O" ring, pilot plate (Code E9 and later pumps only) See 14221

1шт.

D27331

RING

SNAP RING - driven gear

2шт.

D27332

PLATE - pilot (Includes 1 - 34449 seal) (Code E9 and later pumps only) See 35737

1шт.
