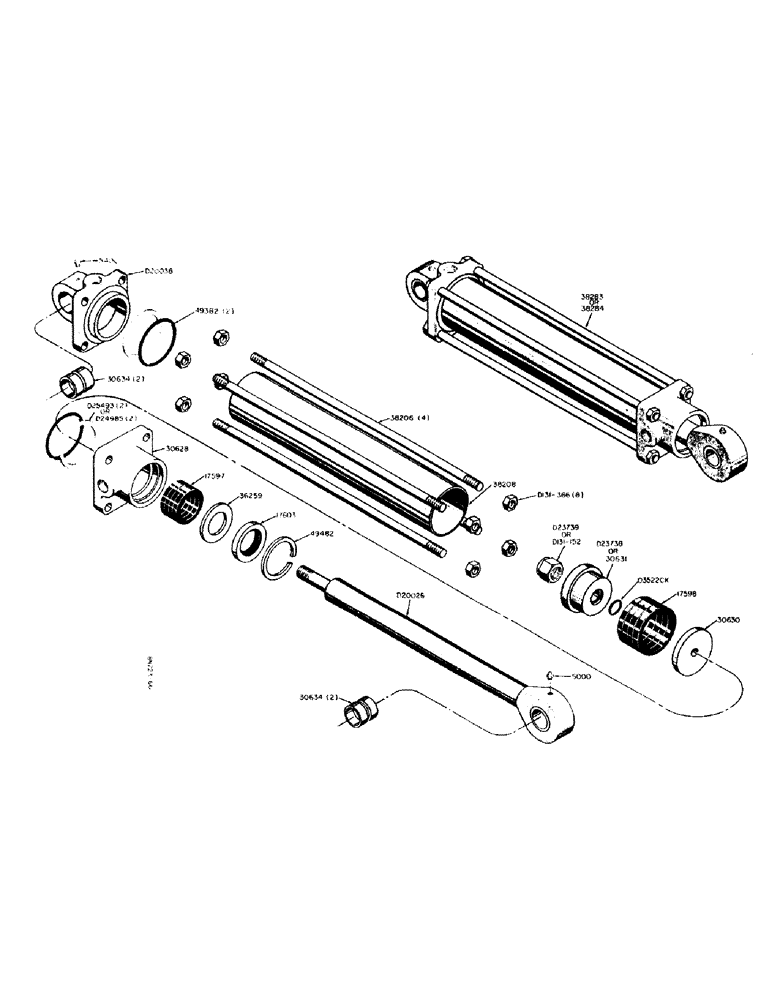

Запчасти Case 310 (56) - 38283 AND 38284 HYDRAULIC LOADER BUCKET CYLINDERS

O3522CK

X

SEAL - "O" ring, piston rod (Used with D23738 piston only)

1шт.

17597

PACKING

- piston rod

1шт.

17598

PACKING

- piston

1шт.

17603

WIPER SEAL

- wiper, piston rod

1шт.

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

30630

CARTRIDGE

WASHER - packing, piston

1шт.

30631

X

PISTON - cylinder (No "O" ring) (Use D23738, D23739, and 03522CK)

1шт.

3/4" - 16NF HEX. LOCK NUT (D131-152)

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke and cylinder end

4шт.

36259

WASHER

- piston rod packing

1шт.

38206

ROD - tie

4шт.

3/8" - 24NF HEX. LOCK NUT (D131-366)

8шт.

38208

TUBE - cylinder

1шт.

38283

LEVER

CYLINDER - loader bucket, hydraulic (R.H.)

1шт.

38284

CYLINDER - loader bucket, hydraulic (L.H.)

1шт.

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

D20026

ROD - piston (Includes 2 - 30634 bushings)

1шт.

1/8" NPT STRAIGHT GREASE FITTING (Lincoln #5000)

1шт.

D20038

END - cylinder (Includes 2 - 30634 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

1/8" NPT GREASE FITTING, 90 degree (Lincoln #5400)

1шт.

D23738

BLOCK

PISTON - cylinder (When replacing 30631 piston without "O" ring, Also order 1 - O3522CK "O" ring and 1 - D23739 lock nut)

1шт.

D23739

LOCK NUT

NUT - lock, D23738 piston only (3/4" - 16NF)

1шт.

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25493

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove) See D24985

2шт.
