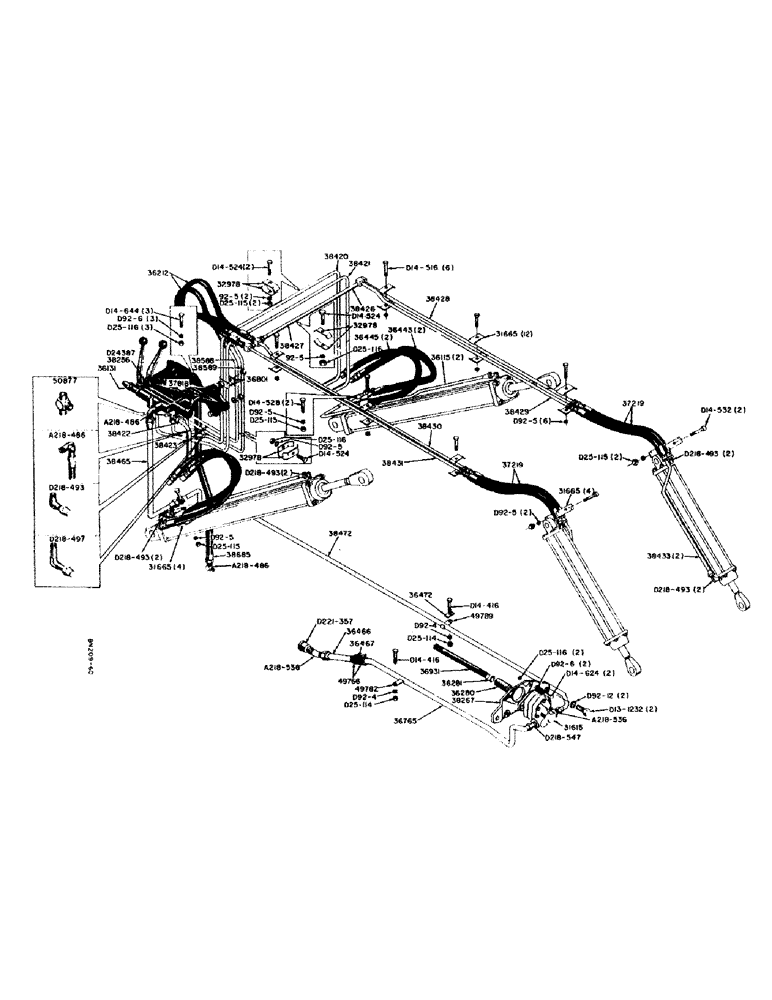

Запчасти Case 310 (48) - BASIC LOADER HYDRAULICS AND PUMP DRIVE, PUMP, CONTROL VALVE & ASSOC. HYD.

31615

CAP

PUMP - hydraulic, 15 G.P.M. (See Figure 62 for breakdown)

1шт.

3/8" - 24 X 1-1/2" NF HEX. HD. CAP SCREW (D14-624)

2шт.

3/8" LOCKWASHER (D92-6)

2шт.

3/8" - 24NF HEX. NUT (D25-116)

2шт.

36131

BRACKET - control valve mounting

1шт.

1/2" - 20 X 2" NF HEX. HD. CAP SCREW (D14-832)

1шт.

1/2" LOCKWASHER (D92-8)

1шт.

1/2" - 20NF HEX. NUT (D25-118)

1шт.

36280

COUPLING

- hydraulic pump to drive shaft

1шт.

36281

X

SNAP RING - pump drive shaft coupling

1шт.

36466

TUBE - pump to reservoir (Rear section)

1шт.

1" JIC X 1" NPT 45 DEGREE MALE ELBOW (A218-538)

1шт.

1-1/2" NPT X 1" NPT REDUCING BUSHING (D221-357)

1шт.

36467

HOSE - connects 36466 and 36765 tubes (1" I.D. x 1-1/2" O.D. x 3" long)

1шт.

36472

PLATE - mounting, 49782 and 49789 tube clamps

2шт.

36765

TUBE - pump to reservoir (Front section)

1шт.

1" JIC X 3/4" NPT 45 DEGREE MALE ELBOW (D218-547)

1шт.

36801

GEAR

CLAMP - L.H. lift cylinder tubes to control valve

2шт.

36931

X

SHAFT - drive, pump

1шт.

37818

HOSE

CAP SCREW - special, upper 36801 clamp mounting (1/2" - 20 x 3-1/2" NF)

1шт.

1/2" LOCKWASHER (D92-8)

1шт.

1/2" - 20NF HEX. JAM NUT (R25-159)

1шт.

NLS

NO LONGER SERVICED

VALVE - loader control, hydraulic (See Figure 58 for breakdown) Also see D24387

1шт.

3/8" - 24 X 2-3/4" NF HEX. HD. CAP SCREW (D14-644)

3шт.

3/8" LOCKWASHER (D92-6)

3шт.

3/8" - 24NF HEX. NUT (D25-116)

3шт.

38267

BRACKET - pump mounting

1шт.

7/16" - 14 X 1-3/8" NC HEX. HD. CAP SCREW (D13-722)

4шт.

7/16" LOCKWASHER (D92-7)

4шт.

15/32" I.D. X 59/64" O.D. WASHER (R195-29)

4шт.

3/4" - 10 X 2" NC HEX. HD. CAP SCREW (D13-1232)

2шт.

3/4" LOCKWASHER (D92-12)

2шт.

38465

DRIVEN SPROCKET

TUBE - pump to loader control valve (Rear section)

1шт.

3/4" JIC X 3/4" NPT 90 DEGREE MALE ELBOW (A218-486)

1шт.

38472

TUBE - pump to loader control valve (Front section)

1шт.

3/4" JIC X 3/4" NPT 45 DEGREE MALE ELBOW (A218-536)

1шт.

38685

HOSE - loader control valve to reservoir (3/4" I.D. x 1-1/4" O.D. x 27" long)

1шт.

3/4" JIC X 3/4" NPT 90 DEGREE MALE ELBOW (A218-486)

2шт.

49766

AUGER

CLAMP - 36467 hose

2шт.

49782

CLAMP - 36765 tube

1шт.

1/4" - 28 X 1" NF HEX. HD. CAP SCREW (D14-416)

1шт.

1/4" LOCKWASHER (D92-4)

1шт.

1/4" - 28NF HEX. NUT (D25-114)

1шт.

49789

CLAMP

- 38465 and 38472 tubes

2шт.

1/4" - 28 X 1" NF HEX. HD. CAP SCREW (D14-416)

2шт.

1/4" LOCKWASHER (D92-4)

2шт.

1/4" - 28NF HEX. NUT (D25-114)

2шт.

D24387

SPOOL

VALVE - loader control, hydraulic (See Figure 60 for breakdown) Also see 38256

1шт.

3/8" - 24 X 2-3/4" NF HEX. HD. CAP SCREW (D14-644)

3шт.

3/8" LOCKWASHER (D92-6)

3шт.

3/8" - 24NF HEX. NUT (D25-116)

3шт.

31665

COLLAR CLAMP

CLAMP - 36443 and 36445 hoses, lift cylinder hydraulics

4шт.

5/16" - 24 X 1-3/4" NF HEX. HD. CAP SCREW (D14-528), lift cylinder hydraulics

2шт.

5/16" LOCKWASHER (D92-5), lift cylinder hydraulics

2шт.

5/16" - 24NF HEX. NUT (D25-115), lift cylinder hydraulics

2шт.

32978

PLATE ASSY.

CLAMP - 38420 and 38421 manifold tubes, lift cylinder hydraulics

4шт.

5/16" - 24 X 1-1/2" NF HEX. HD. CAP SCREW (D14-524), lift cylinder hydraulics

2шт.

5/16" LOCKWASHER (D92-5), lift cylinder hydraulics

2шт.

5/16" - 24NF HEX. NUT (D25-115), lift cylinder hydraulics

2шт.

36115

TUBE - to front port lift cylinder, hydraulics

2шт.

1/2" NPT X 1/2" JIC 90 DEGREE MALE ELBOW (D218-493), lift cylinder hydraulics

2шт.

36443

HOSE

- to front port of lift cylinder (1/2" I.D. x 7/8" O.D. x 25" long), hydraulics

2шт.

36445

HOSE - to rear port of lift cylinder (1/2" I.D. x 7/8" O.D. x 27" long), hydraulics

2шт.

1/2" NPT X 1/2" JIC 90 DEGREE MALE ELBOW (D218-493), lift cylinder hydraulics

2шт.

38420

TUBE - front port control valve to rear port L.H. lift cylinder hydraulics

1шт.

38421

TUBE - rear port control valve to front port L.H. lift cylinder hydraulics

1шт.

38422

TUBE - front port control valve to rear port R.H. lift cylinder hydraulics

1шт.

38423

TRACK ASSY

TUBE - rear port control valve to front port R.H. lift cylinder hydraulics

1шт.

50877

TEE - male run, lift cylinder ports in control valve hydraulics

2шт.

31665

COLLAR CLAMP

CLAMP - 38430, 38431, 38428, 38429 tubes and 37219 hoses, bucket cylinder hydraulics

10шт.

5/16" - 24 X 1" NF HEX. HD. CAP SCREW (D14-516), bucket cylinder hydraulics

6шт.

5/16" - 24 X 2" NF HEX. HD. CAP SCREW (D14-532), bucket cylinder hydraulics

2шт.

5/16" LOCKWASHER (D92-5), bucket cylinder hydraulics

8шт.

5/16" - 24NF HEX. NUT (D25-115), bucket cylinder hydraulics

2шт.

32978

PLATE ASSY.

CLAMP - 38426, 38427, 38588, 38589 tubes, bucket cylinder hydraulics

4шт.

5/16" - 24 X 1-1/2" NF HEX. HD. CAP SCREW (D14-524), bucket cylinder hydraulics

3шт.

5/16" LOCKWASHER (D92-5), bucket cylinder hydraulics

3шт.

5/16" - 24NF HEX. NUT (D25-115), bucket cylinder hydraulics

3шт.

36212

HOSE

- valve to bucket cylinder, rear (1/2" I.D. x 7/8" O.D. x 23-1/2" long), hydraulics

2шт.

NLS

NO LONGER SERVICED

- valve to bucket cylinder, front (1/2" I.D. x 7/8" O.D. x 19" long), hydraulics

4шт.

1/2" NPT X 1/2" JIC 90 DEGREE MALE ELBOW (D218-493), bucket cylinder hydraulics

2шт.

38426

TUBE - manifold, rear, bucket cyl hydraulics

1шт.

38427

CLIP

TUBE - manifold, front, bucket cyl hydraulics

1шт.

38428

TUBE - to L.H. bucket cylinder, outer, hydraulics

1шт.

38429

RICE TOOTH

TUBE - to L.H. bucket cylinder, inner, hydraulics

1шт.

38430

TUBE - to R.H. bucket cylinder, inner, hydraulics

1шт.

38431

TUBE - to R.H. bucket cylinder, outer, hydraulics

1шт.

38433

TUBE - to front port bucket cylinder hydraulics

2шт.

1/2" NPT X 1/2" JIC 90 DEGREE MALE ELBOW (D218-493), bucket cylinder hydraulics

2шт.

38588

TUBE - control valve to hose, rear, bucket cyl hydraulics

1шт.

1/2" NPT X 1/2" JIC 90 DEGREE MALE ELBOW, extra long (D218-497), bucket cylinder hydraulics

1шт.

38589

TUBE - control valve to hose, front, bucket cyl hydraulics

1шт.

1/2" NPT X 1/2" JIC 90 DEGREE MALE ELBOW (D218-493), bucket cylinder hydraulics

1шт.
