Запчасти Case 310 (46) - LOADER FRAME, LIFT ARM, BUCKET, AND CYLINDERS

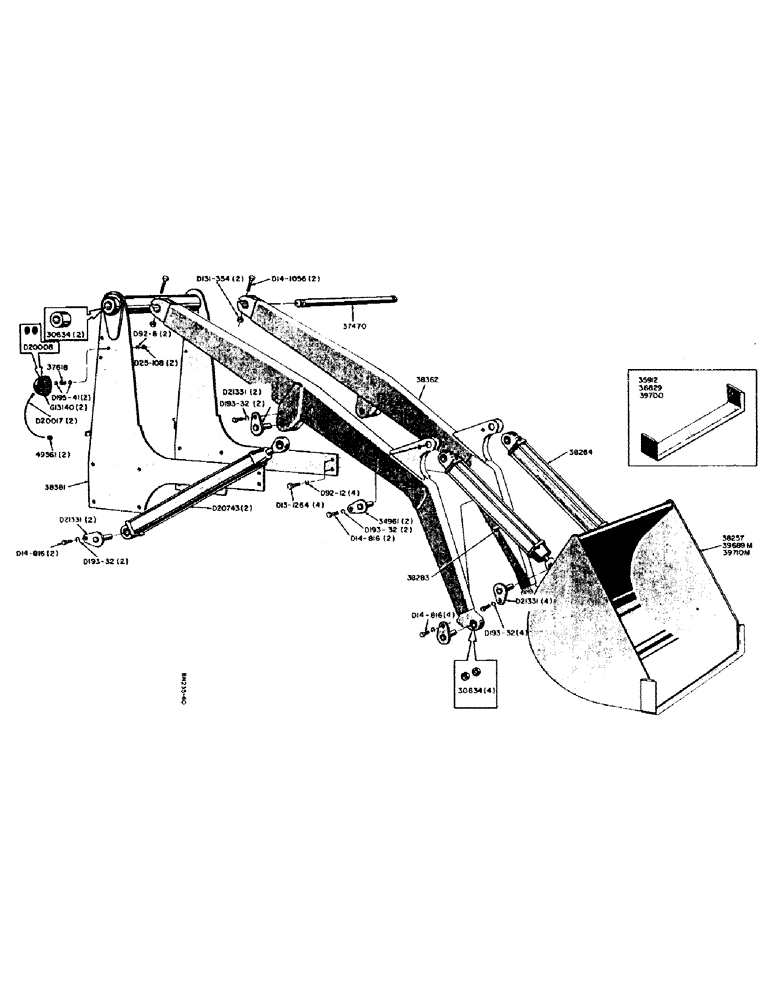

Схема запчастей Case 310 - (46) - LOADER FRAME, LIFT ARM, BUCKET, AND CYLINDERS

Артикул

Название

Примечание

Количество

G13140

HEADLIGHT

LIGHT - head, R.H. (6 volt)

1шт.

G13173

LIGHT - head, L.H. (6 volt) (Use G13140)

1шт.

1/2" - 13 NC HEX. NUT (D25-108)

2шт.

1/2" LOCKWASHER (D92-8)

2шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- pivot shaft and bucket pivot

6шт.

34961

PIN - pivot, bucket cylinder (Upper)

2шт.

1/2" - 20 X 1" NF HEX. HD. CAP SCREW (D14-816)

2шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (193-32)

2шт.

35912

EDGE - cutting, 39689M bucket

1шт.

35920

SCREW

CYLINDER - loader lift, hydraulic (1-1/4" dia. piston rod) (Use D20743) (See Figure 52)

2шт.

36117

PIN - pivot, loader lift cylinders - upper and lower; Also bucket cylinder - lower; Also bucket to arm (Use D21331)

8шт.

1/2" - 20 X 1" NF HEX. HD. CAP SCREW (D14-816)

8шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32)

8шт.

36829

SHACKLE

EDGE - cutting, 38257 buckets

1шт.

37470

PLATE

SHAFT - pivot

1шт.

5/8" - 18 X 3-1/2" NF HEX. HD. CAP SCREW (D14-1056)

2шт.

5/8" - 18 NF HEX. LOCK NUT (D131-354)

2шт.

37617

SPACER - headlight, L.H.

1шт.

37618

SPACER - headlight, R.H.

1шт.

21/32" I.D. X 1-5/16" O.D. WASHER (D195-41)

2шт.

38257

BUCKET - loader (9 cu. ft.) (Includes 1 - 36829 edge) (Repair Item)

1шт.

38283

LEVER

CYLINDER - loader bucket, hydraulic (R.H.) (See Figure 56 for breakdown)

1шт.

38284

CYLINDER - loader bucket, hydraulic (L.H.) (See Figure 56 for breakdown)

1шт.

38362

ARM - lift, main (Includes 4 - 30634 bushings)

1шт.

38381

FRAME - main (Includes 2 - 30634 bushings)

1шт.

3/4" - 10 X 4" NC HEX. HD. CAP SCREW (D13-1264)

4шт.

3/4" LOCKWASHER (D92-12)

4шт.

39689M

BUCKET - loader (11 cu. ft.) (Includes 1 - 35912 edge) (Machinery Item)

1шт.

39700

GASKET

EDGE - cutting, 39710M bucket

1шт.

39710M

BUCKET - loader (21 cu. ft.) (Includes 1 - 39700 cutting edge) (Machinery Item)

1шт.

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- light wire

2шт.

D20008

WASHER - spacer

1шт.

D20017

CABLE - headlight

2шт.

D20743

CYLINDER - loader lift hydraulic (1-1/2" dia. piston rod) See 35920 (See Figure 54)

2шт.

D21331

PIN - pivot, loader lift cylinders - upper and lower; also bucket cylinder - lower; also, Serial Range: bucket-arm

8шт.

1/2" - 20 X 1" NF HEX. HD. CAP SCREW (D14-816)

8шт.

1/2" INTERNAL TOOTH SHAKEPROOF LOCKWASHER (D193-32)

8шт.

D23740

BUSHING

SPACER - 34961, D21331, and 36117 lockhead pins (Not shown) (If used)

8шт.

Выбрано товаров: 38
