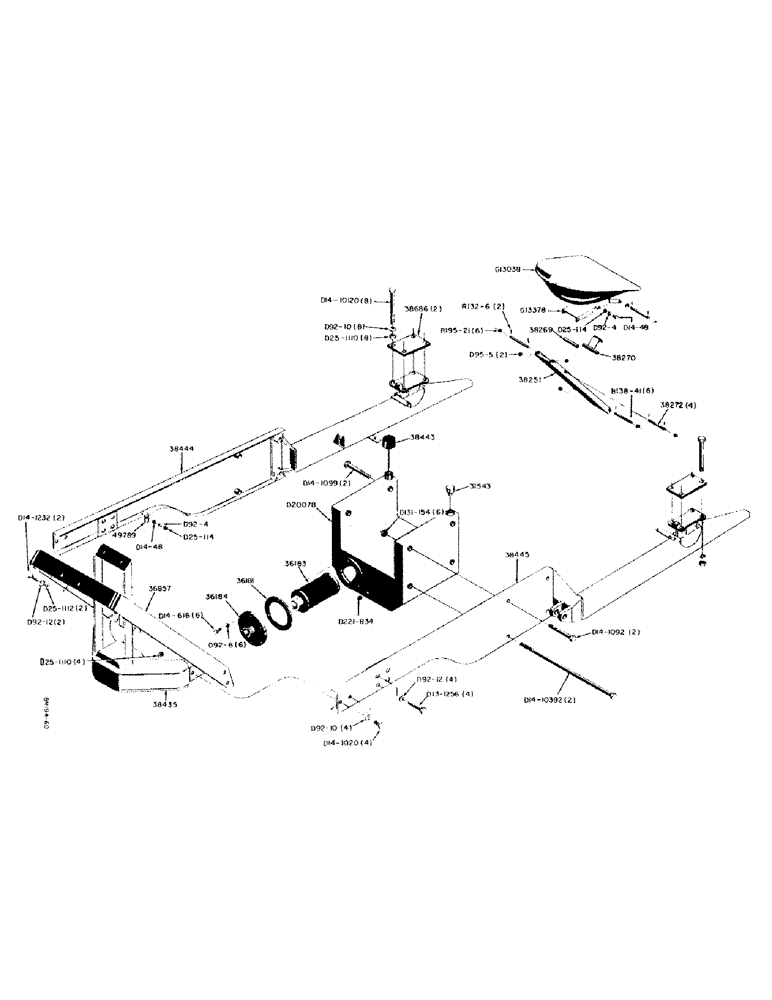

Запчасти Case 310 (44) - SEAT AND TRACTOR MODIFICATION PARTS, SEAT
№
Артикул
Название
Примечание
Количество
A20458
SEAT
- deluxe, optional (Includes guide and lock assembly) (See G13038) (See Figure 5 for breakdown)
1шт.
G13038
SEAT - standard (Includes guide and lock assembly) See A20458
1шт.
G13378
CHANNEL - mounting, seat
1шт.
1/4" - 28 X 1/2" NF HEX. HD. CAP SCREW (D14-48)
1шт.
1/4" LOCKWASHER (D92-4)
1шт.
1/4" - 28NF HEX. NUT (D25-114)
1шт.
38251
BRACE - seat
1шт.
38269
SPACER - seat brace
1шт.
38270
KNIFE
LOCK - seat
1шт.
38272
ROD - seat and brace
4шт.
3/32" X 3/4" ROLL PIN (B138-41)
6шт.
1/16" X 5/8" COTTER PIN (R132-6)
2шт.
11/32" I.D. X 11/16" O.D. PLAIN WASHER (R195-21)
6шт.
5/16" STD. WROT WASHER (D95-5)
2шт.
D25814
SPRING - seat lock (Not original equipment)
1шт.
31543
BREATHER
- reservoir, modification parts
1шт.
36181
GASKET
GASKET - filter cap, modification parts
1шт.
36183
SEALING RING COLLAR
FILTER - hydraulic oil, modification parts
1шт.
36184
SCREW
CAP - filter, hydraulic oil, modification parts
1шт.
3/8" - 24 X 1" NF HEX. HD. CAP SCREW (D14-616), modification parts
6шт.
3/8" LOCKWASHER (D92-6), modification parts
6шт.
NLS
NO LONGER SERVICED
PLATE - rub, modification parts
1шт.
3/4" - 16 X 2" NF HEX. HD. CAP SCREW (D14-1232), modification parts
2шт.
3/4" - 10 X 3-1/2" NC HEX. HD. CAP SCREW (D13-1256), modification parts
4шт.
3/4" LOCKWASHER (D92-12), modification parts
6шт.
3/4" - 16NF HEX. NUT (D25-1112), modification parts
2шт.
38435
SPACER
BUMPER AND GRILLE GUARD - front, modification parts
1шт.
5/8" - 18 X 1-1/4" NF HEX. HD. CAP SCREW (D14-1020), modification parts
4шт.
5/8" LOCKWASHER (D92-10), modification parts
4шт.
5/8" - 18NF HEX. NUT (D25-1110), modification parts
4шт.
38443
GAUGE - oil level, hydraulic, modification parts
1шт.
38444
LUBE NIPPLE
FRAME - mounting, R.H., modification parts
1шт.
38445
TROUGH
FRAME - mounting, L.H., modification parts
1шт.
38686
HANGER - frame, modification parts
2шт.
5/8" - 18 X 7-1/2" NF HEX. HD. CAP SCREW (D14-10120), modification parts
8шт.
5/8" LOCKWASHER (D92-10), modification parts
8шт.
5/8" - 18NF HEX. NUT (D25-1110), modification parts
8шт.
49789
CLAMP
- R.H. loader frame, modification parts
1шт.
1/4" - 28 X 1/2" NF HEX. HD. CAP SCREW (D14-48), modification parts
1шт.
1/4" LOCKWASHER (D92-4), modification parts
1шт.
1/4" - 28NF HEX. NUT (D25-114), modification parts
1шт.
D20078
RESERVOIR - hydraulic oil, modification parts
1шт.
5/8" - 18 X 6-3/16" NF HEX. HD. CAP SCREW (D14-1099), modification parts
2шт.
5/8" - 18 X 5-3/4" NF HEX. HD. CAP SCREW (D14-1092), modification parts
2шт.
5/8" - 18 X 24-1/2" NF HEX. HD. CAP SCREW (D14-10392), modification parts
2шт.
5/8" - 18NF HEX. LOCK NUT (D131-154), modification parts
6шт.
1/2" NPT EXTENDED SQ. HD. PIPE PLUG (D221-834), modification parts
1шт.
Выбрано товаров: 47
