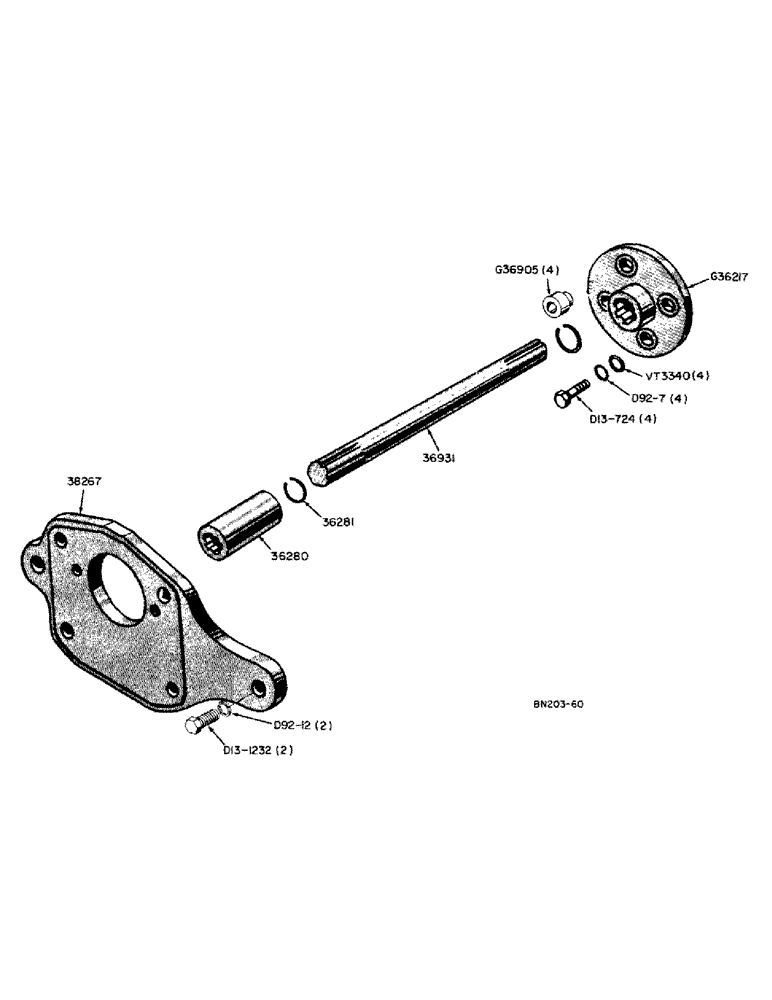

Запчасти Case 310 (43) - LOADER - BACKHOE HYDRAULIC PUMP DRIVE

G36217

HUB ASSY.

COUPLING - flexible, crankshaft pulley to pump drive shaft (Includes 4 - VT3340 washers)

1шт.

7/16" - 13NC X 1-1/2" HEX. HD. CAP SCREW (D13-724)

4шт.

7/16" LOCKWASHER (D92-7)

4шт.

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

VT3340

X

WASHER - bolt, flexible coupling

4шт.

NLS

NO LONGER SERVICED

- hydraulic pump to drive shaft

1шт.

36281

X

SNAP RING - coupling, pump drive shaft

1шт.

36931

X

SHAFT - hydraulic pump drive

1шт.

38267

BRACKET - mounting, pump

1шт.

7/16" - 14 X 1-3/8" NC HEX. HD. CAP SCREW (D13-722)

4шт.

7/16 LOCKWASHER (D92-7)

4шт.

15/32" I.D. X 59/64" O.D. WASHER (R195-29)

4шт.

3/4" - 10 x 2" NC HEX. HD. CAP SCREW (D13-1232)

2шт.

3/4" LOCKWASHER (D92-12)

2шт.
