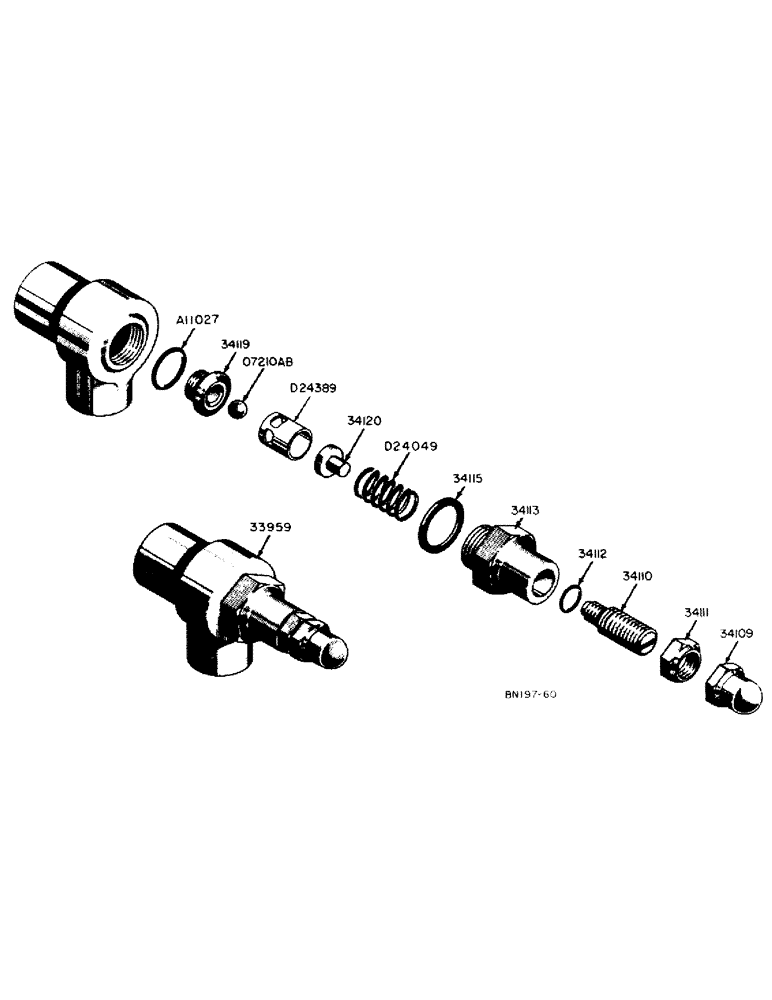

Запчасти Case 310 (40) - 33959 SPECIAL RELIEF VALVE

O7210AB

X

BALL - relief valve

1шт.

O8416AB

X

SEAL - "O" ring, valve seat (Use A11027)

1шт.

NLS

NO LONGER SERVICED

VALVE - relief, boom down pressure (Complete) (Use D24452)

1шт.

34109

NUT - cap, hex.

1шт.

34110

ADJUSTMENT SCREW

- adjusting

1шт.

34111

X

NUT - hex. jam

1шт.

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

SEAL - "O" ring, adjusting screw

1шт.

34113

BODY

CAP - body

1шт.

34114

VALVE, PRESSURE RELI

SPRING - relief valve (Use D24049)

1шт.

34115

GASKET

- body cap

1шт.

34117

X

BALL - relief valve (Use 07210AB)

1шт.

34118

X

SEAL - "O" ring, valve seat (Use A11027)

1шт.

34119

SEAT, VALVE

SEAT - valve

1шт.

CAS34120

BUSHING

SPACER - spring

1шт.

D24049

VALVE SPRING

SPRING - relief valve

1шт.

D24389

COLLAR - seat jam

1шт.

A11027

GASKET

SEAL - "O" ring, valve seat

1шт.
