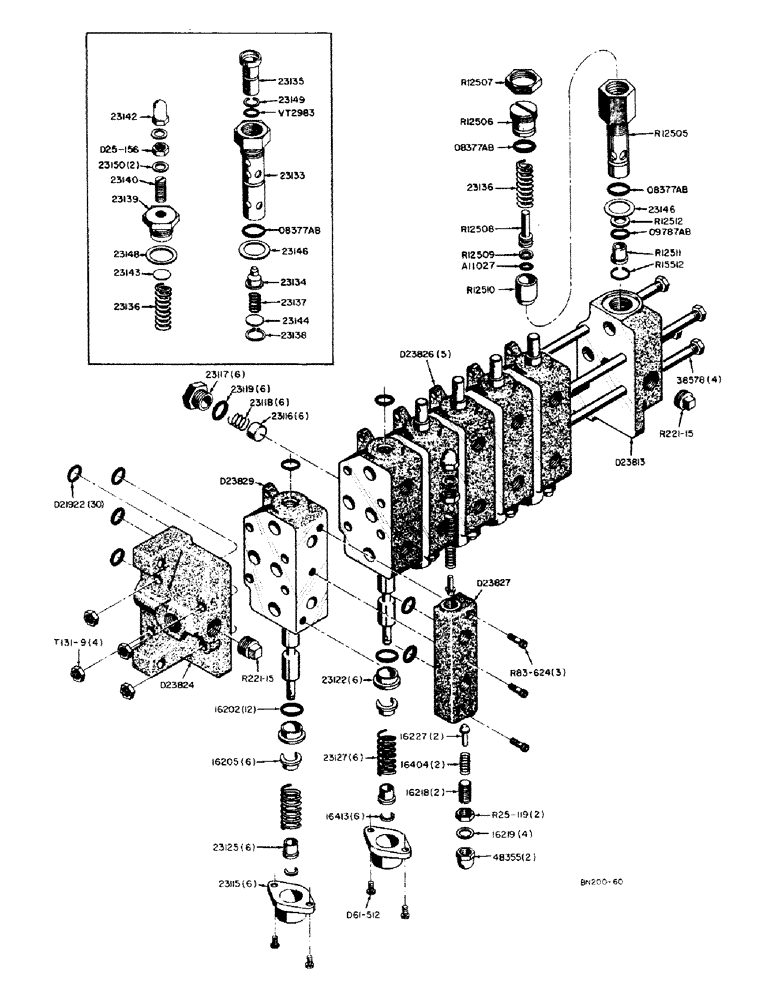

Запчасти Case 310 (36) - D23812 BACKHOE HYDRAULIC CONTROL VALVE

38578

SOCKET WRENCH

STUD - valve tie (1/2" - 20NF x 16-3/4")

4шт.

1/2" - 20NF LOCKNUT (T131-9)

4шт.

D21922

O-RING

SEAL - "O" ring, valve body

30шт.

D23812

VALVE

- control, hydraulic (Complete)

1шт.

D23813

SECTION - inlet, control valve (Includes 1 - R14175 main relief valve) (See below for breakdown)

1шт.

3/4" NPT PIPE PLUG, ext. sq. hd. (R221-15)

1шт.

D23824

SECTION - outlet, control valve

1шт.

3/4" NPT PIPE PLUG, ext. sq. hd. (R221-15)

1шт.

D23825

SECTION - swing cylinder (Includes 1 - D23827 swing cylinder relief valve and 1 - D23829 swing cylinder section) (See below for breakdown)

1шт.

D23826

SECTION - stabilizer (2), boom, crowd, and bucket cylinders, control valve (See below for breakdown)

5шт.

D23827

VALVE - relief, swing cylinders (See below for breakdown)

1шт.

D23829

SECTION - swing cylinders (See below for breakdown)

1шт.

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, valve spool, D23829 swing cylinder section

2шт.

16205

RETAINER - spring, spool centering, D23829 swing cylinder section

1шт.

NLS

NO LONGER SERVICED

- spring guide, spool centering, D23829 swing cylinder section

1шт.

23115

HYDRAULIC HOSE

CAP - valve spool, D23829 swing cylinder section

1шт.

5/16" - 18 X 3/4" NC SOCKET HD. CAP SCREW (D61-512), D23829 swing cylinder section

2шт.

23116

HYDRAULIC HOSE

POPPET - check valve, valve section, D23829 swing cylinder

1шт.

23117

HYDRAULIC HOSE

CAP - check valve, valve section, D23829 swing cylinder

1шт.

23118

HYDRAULIC HOSE

SPRING - poppet, check valve, D23829 swing cylinder section

1шт.

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring, check valve, D23829 swing cylinder section

1шт.

23122

HYDRAULIC HOSE

RETAINER - "O" ring seal, valve spool, D23829 swing cylinder section

1шт.

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering, D23829 swing cylinder section

1шт.

23127

SPRING

- spool centering, D23829 swing cylinder section

1шт.

D21922

O-RING

SEAL - "O" ring, valve body, D23829 swing cylinder section

4шт.

D23829

SECTION - D23829 swing cylinder section

1шт.

NLS

NO LONGER SERVICED

SCREW - adjusting, swing cylinder relief valve, D23827

2шт.

9/16" - 18NF HEX. NUT (R25-119), D23827 swing cylinder relief valve

2шт.

16219

GASKET

- jam nut and cap nut (Copper and lead), D23827 swing cylinder relief valve

4шт.

16227

HOSE

POPPET - relief valve, D23827 swing cylinder

2шт.

NLS

NO LONGER SERVICED

SPRING - poppet, relief valve, D23827 swing cylinder

2шт.

48355

NUT - acorn, hex. (9/16" - 18NF), D23827 swing cylinder relief valve

2шт.

D21922

O-RING

SEAL - "O" ring, valve body, D23827 swing cylinder relief

2шт.

D23827

SECTION - relief valve, swing cylinder, D23827

1шт.

3/8" - 16 X 1-1/2" NC SOCKET HD. CAP SCREW (R83-624), D23827 swing cylinder relief valve

3шт.

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, spool, D23826 stabilizer (2), boom, crowd, and bucket cylinder control valve sections

2шт.

16205

RETAINER - spring, spool centering, D23826 stabilizer (2), boom, crowd, and bucket cylinder control valve sections

1шт.

16413

HOSE

- spring guide, spool centering, D23826 stabilizer (2), boom, crowd, and bucket cylinder control valve sections

1шт.

23115

HYDRAULIC HOSE

CAP - valve spool, D23826 stabilizer (2), boom, crowd, and bucket cylinder control sections

1шт.

5/16" - 18 X 3/4" NC SOCKET HD. CAP SCREW (D61-512), D23826 stabilizer (2), boom, crowd, and bucket cylinder control valve sections

2шт.

23116

HYDRAULIC HOSE

POPPET - check, D23826 stabilizer (2), boom, crowd, and bucket cylinder control valve sections

1шт.

23117

HYDRAULIC HOSE

CAP - check valve, valve section, D23826 stabilizer (2), boom, crowd, and bucket cylinder control valve sections

1шт.

23118

HYDRAULIC HOSE

SPRING - poppet, check valve, D23826 stabilizer (2), boom, crowd, and bucket cylinder control sections

1шт.

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring, check valve cap, D23826 stabilizer (2), boom, crowd, and bucket cylinder control sections

1шт.

23122

HYDRAULIC HOSE

RETAINER - "O" ring seal, valve spool, D23826 stabilizer (2), boom, crowd, and bucket cylinder control sections

1шт.

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering, D23826 stabilizer (2), boom, crowd, and bucket cylinder control valve sections

1шт.

23127

SPRING

- spool centering, D23826 stabilizer (2), boom, crowd, and bucket cylinder control valve sections

1шт.

D21922

O-RING

SEAL - "O" ring, valve body, D23826 stabilizer (2), boom, crowd, and bucket cylinder control sections

4шт.

D23826

SECTION - stabilizer (2), boom, crowd, and bucket cylinders, control valve (Complete)

5шт.

A11027

GASKET

SEAL - "O" ring, floating seat, R14175 main relief valve cartridge (other than original equipment)

1шт.

O8377AB

X

SEAL - "O" ring, R14175 main relief valve cartridge (other than original equipment)

2шт.

O8416AB

X

SEAL - "O" ring, floating seat (Use A11027), R14175 main relief valve cartridge (other than original equipment)

1шт.

O9787AB

X

SEAL - "O" ring, backup ring, R14175 main relief valve cartridge (other than original equipment)

1шт.

23136

SPRING

- compression, plunger, R14175 main relief valve cartridge (other than original equipment)

1шт.

23146

WASHER

- fibre, valve shell, R14175 relief valve cartridge (other than original equipment)

1шт.

R12505

SHELL - R14175 main relief valve cartridge (other than original equipment)

1шт.

R12506

SCREW - spring adjusting, R14175 main relief valve cartridge (other than original equipment)

1шт.

R12507

LOCK NUT

- lock, spring adjusting screw, R14175 main relief valve cartridge (other than original equipment)

1шт.

R12508

PLUNGER - displacement, floating seat, R14175 main relief valve cartridge (other than original equipment)

1шт.

R12509

RING

- backup, displacement plunger, R14175 main relief valve cartridge (other than original equipment)

1шт.

R12510

SEAT

- floating, R14175 main relief valve cartridge (other than original equipment)

1шт.

R12511

POPPET

- R14175 main relief valve cartridge (other than original equipment)

1шт.

R12512

OIL SEAL

RING - backup, poppet, R14175 main relief valve cartridge (other than original equipment)

1шт.

R14175

complete, R14175 main relief valve cartridge (other than original equipment)

1шт.

R15512

SNAP RING,#87, .929", Int, Spiral

- poppet retaining, R14175 main relief valve cartridge (other than original equipment)

1шт.

O8377AB

X

SEAL - "O" ring, 23130 main relief valve cartridge (original equipment)

1шт.

VT2983

X

SEAL - "O" ring, valve seat, 23130 main relief valve cartridge (original equipment)

1шт.

23130

complete (Use R14175), 23130 main relief valve cartridge (original equipment)

1шт.

23133

HYDRAULIC HOSE

SHELL - 23130 main relief valve cartridge (original equipment)

1шт.

23134

HYDRAULIC HOSE

POPPET - valve, 23130 main relief cartridge (original equipment)

1шт.

23135

HYDRAULIC HOSE

SEAT - floating valve, 23130 main relief cartridge (original equipment)

1шт.

23136

SPRING

- seat, 23130 main relief valve cartridge (original equipment)

1шт.

23137

VALVE SPRING

SPRING - poppet, 23130 main relief valve cartridge (original equipment)

1шт.

23138

O-RING

SNAP RING - poppet retaining, 23130 main relief valve cartridge (original equipment)

1шт.

23139

GASKET

CAP - valve, 23130 main relief cartridge (original equipment)

1шт.

23140

STUD

SCREW - spring adjusting, relief valve, 23130 main relief cartridge (original equipment)

1шт.

3/8" - 24NF JAM NUT (D25-156), 23130 main relief valve cartridge (original equipment)

1шт.

NLS

NO LONGER SERVICED

ACORN NUT - adjusting screw cap, 23130 main relief valve cartridge (original equipment)

1шт.

23143

WASHER

- valve spring, 23130 main relief cartridge (original equipment)

1шт.

23144

THREADED TIE-ROD

WASHER - poppet spring, 23130 main relief valve cartridge (original equipment)

1шт.

23146

WASHER

- fibre, valve shell, 23130 main relief cartridge (original equipment)

1шт.

23148

SEAL

WASHER - fibre, valve cap, 23130 main relief cartridge (original equipment)

1шт.

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup, "O" ring, 23130 main relief valve cartridge (original equipment)

1шт.

23150

WASHER

- adjusting screw nuts (Copper), 23130 main relief valve cartridge (original equipment)

2шт.
