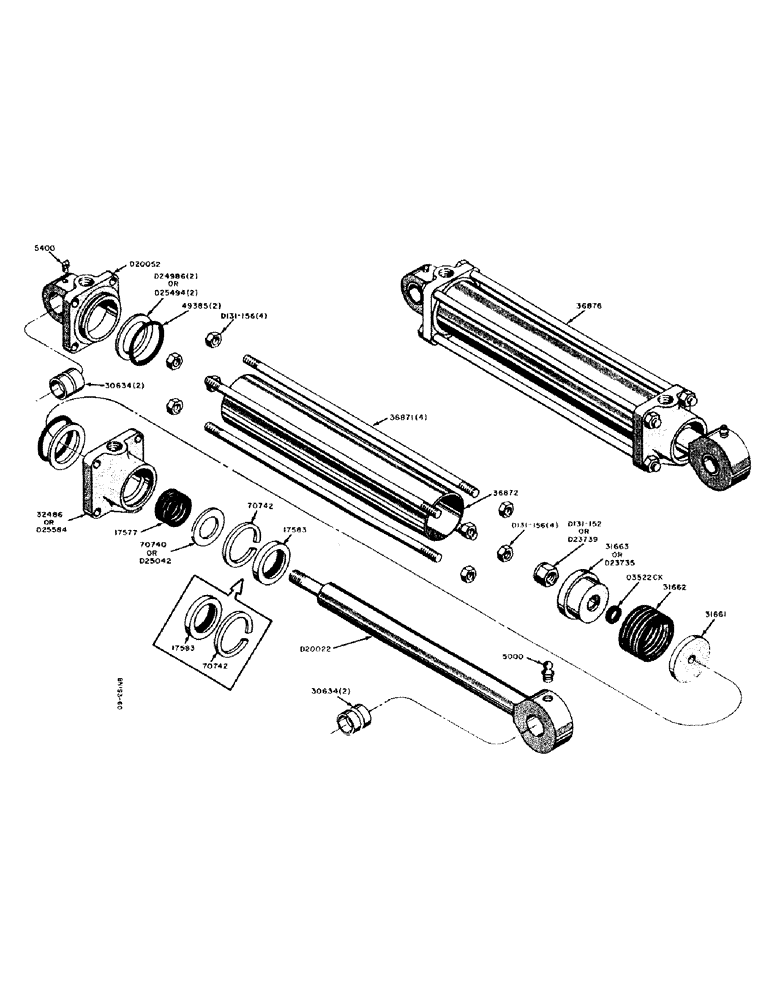

Запчасти Case 310 (34) - 36876 HYDRAULIC BACKHOE BUCKET CYLINDER

O3522CK

X

SEAL - "O" ring (Used with D23735 piston only)

1шт.

17577

PACKING

- piston rod

1шт.

17583

WIPER SEAL

- wiper, piston rod

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end and piston rod yoke

4шт.

31661

WASHER

- packing, piston

1шт.

31662

PACKING

- piston

1шт.

31663

X

PISTON - cylinder (No O-ring) (Use D23735, D23739, and 03522CK)

1шт.

3/4" - 16NF HEX. LOCK NUT (D131-152)

1шт.

32486

RATCHET

CAP - end, cylinder (Has no. 32486 on casting) (Use D25042 and D25584)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

36871

THRUST WASHER

ROD - tie

4шт.

1/2" - 20NF HEX. LOCK NUT (D131-156)

8шт.

36872

TUBE - cylinder

1шт.

36876

CYLINDER - bucket, hydraulic (Complete)

1шт.

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, cylinder tube

2шт.

70740

WASHER

- piston rod packing (Used with 32486 cylinder end cap only) See D25042

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

D20022

ROD - piston (Includes 2 - 30634 bushings)

1шт.

1/8" NPT STRAIGHT GREASE FITTING (Lincoln #5000)

1шт.

D20052

END - cylinder (Includes 2 - 30634 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

1/8" NPT, 90 degree grease fitting (Lincoln #5400)

1шт.

D23735

PISTON

- cylinder (When replacing 31663 piston without O-ring, also order 1 - 03522CK O-ring and 1 - D23739 lock nut)

1шт.

D23739

LOCK NUT

NUT - lock, D23735 piston only (3/4" - 16NF)

1шт.

D24986

RING

- leather backup (Used only with cylinder end or cap that has .210" wide O-ring groove) See D25494

2шт.

D25042

WASHER

- packing, piston rod (Used with D25584 cylinder end cap only) See 70742

1шт.

D25494

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide O-ring groove)

2шт.

D25584

CAP

- cylinder end (Has no. D25584 on casting) (See 32486)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.
