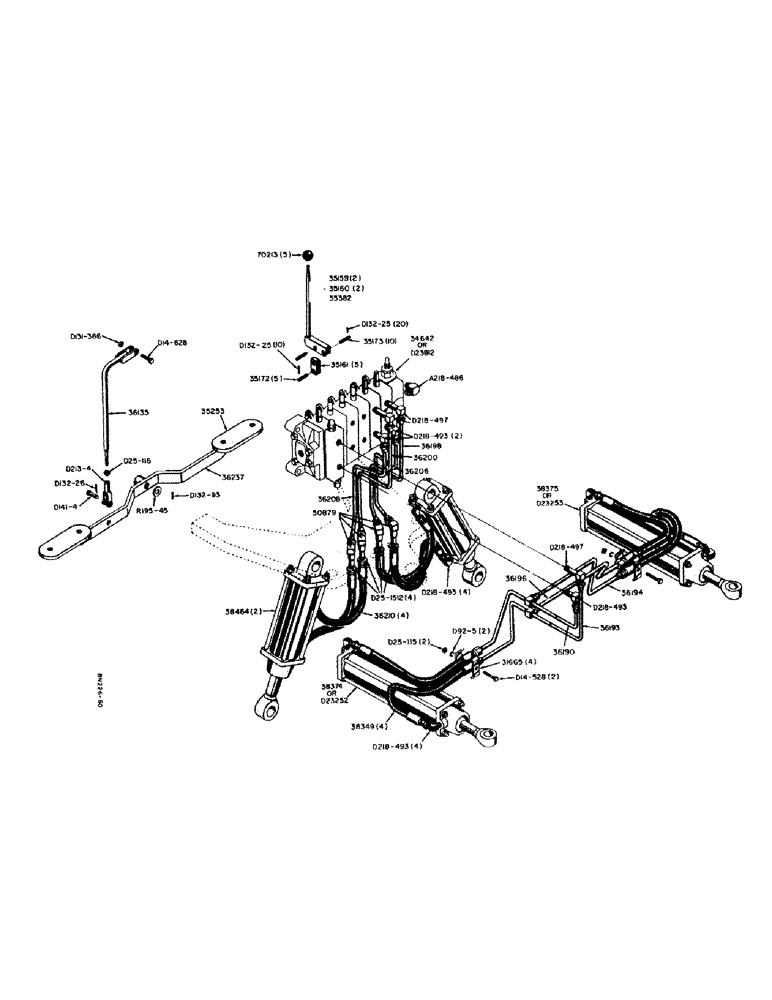

Запчасти Case 310 (22) - SWING CYLINDER AND STABILIZER CYLINDER HYDRAULICS

34642

X

VALVE - hydraulic control, backhoe (Use D23812)

1шт.

35159

LEVER - valve, dipper arm and bucket control (9-3/4" long)

2шт.

35160

WASHER

LEVER - valve, stabilizer control (8-1/2" long)

2шт.

35161

LINK - valve levers

5шт.

35172

PIN - valve to lever link (3/8" x 1-1/8" long)

5шт.

3/32" X 5/8" COTTER PIN (D132-25)

10шт.

35173

PIN

- valve lever to link (3/8" x 1-7/16" long)

10шт.

3/32" X 5/8" COTTER PIN (D132-25)

20шт.

35253

NUT

PEDAL - rubber, swing control bar (See 36237)

2шт.

1/4" - 28 X 3/4" NF FLAT HD. MACHINE SCREW (D74-412)

4шт.

1/4" - 28NF HEX. NUT (D25-114)

4шт.

35382

LEVER - valve, boom control (11-1/4" long)

1шт.

36135

SUPPORT

ROD - control, swing cylinders

1шт.

3/8" - 24NF HEX. NUT (D25-116)

1шт.

3/8" - 24 X 1-3/4" NF HEX. HD. CAP SCREW (D14-628)

1шт.

3/8" - 24NF LOCK NUT (D131-366)

1шт.

3/8" - 24NF YOKE, swing cylinders control rod (D213-4)

1шт.

3/8" X 1-7/32" PIN, swing cylinders control rod adjusting yoke (D141-4)

1шт.

3/32" X 3/4" COTTER PIN (D132-26)

1шт.

36237

BAR - control, swing cylinder (Includes 2 - 35253 pedals)

1шт.

3/4" SAE WROT WASHER (R195-45)

1шт.

3/16" X 1-1/4" COTTER PIN (D132-93)

1шт.

70213

KNOB

- control lever

5шт.

D23812

VALVE

- hydraulic control, backhoe (Note: D23812 and 34642 Valves are identical insofar as field service is concerned) (See Figure 36 for breakdown)

1шт.

3/4" JIC X 3/4" NPT MALE ELBOW (A218-486)

1шт.

31665

COLLAR CLAMP

CLAMP - hose, swing cylinders, hydraulics

4шт.

5/16" - 24 X 1-3/4" NF HEX. HD. CAP SCREW (D14-528), swing cylinder hydraulics

2шт.

5/16" LOCKWASHER (D92-5), swing cylinder hydraulics

2шт.

5/16" - 24NF HEX. NUT (D25-115), swing cylinder hydraulics

2шт.

36190

HYD TUBE

TUBE - valve to L.H. swing cylinder front hose, hydraulics

1шт.

1/2" JIC X 1/2" NPT 90 DEGREE MALE ELBOW, valve to swing cylinder tubes (D218-493), hydraulics

1шт.

36193

TUBE - valve to L.H. swing cylinder rear hose, hydraulics

1шт.

1/2" JIC X 1/2" NPT 90 DEGREE EXTRA LONG MALE ELBOW, valve to swing cylinder tube (D218-497), hydraulics

1шт.

36194

LOCK WASHER

TUBE - to R.H. swing cylinder, rear hose, hydraulics

1шт.

36196

SEAL

TUBE - to R.H. swing cylinder, front hose, hydraulics

1шт.

38349

HOSE - to swing cylinder ports (1/2" I.D. x 7/8" O.D. x 25-1/2" long), hydraulics

4шт.

1/2" JIC X 1/2" NPT 90 DEGREE MALE ELBOW, swing cylinder ports (D218-493), hydraulics

4шт.

38374

WASHER

CYLINDER - swing, L.H. (Complete) (See Figure 26 for breakdown) Use D23252, hydraulics

1шт.

38375

CYLINDER - swing, R.H. (Complete) (See Figure 26 for breakdown) Use D23253, hydraulics

1шт.

D23252

CYLINDER - swing, L.H. (Complete) (See Figure 26 for breakdown), hydraulics

1шт.

D23253

CYLINDER - swing, R.H. (Complete) (See Figure 26 for breakdown), hydraulics

1шт.

36198

TUBE - valve to R.H. stabilizer cylinder upper hose, hydraulics

1шт.

1/2" JIC X 1/2" NPT EXTRA LONG 90 DEGREE MALE ELBOW, valve to stabilizer cylinder tube (D218-497), hydraulics

1шт.

36200

SCREW

TUBE - valve to L.H. stabilizer cylinder upper hose, hydraulics

1шт.

1/2" JIC X 1/2" NPT EXTRA LONG 90 DEGREE MALE ELBOW, valve to stabilizer cylinder tube (D218-497), hydraulics

1шт.

36206

FLEXIBLE HOSE

TUBE - valve to R.H. stabilizer cylinder lower hose, hydraulics

1шт.

1/2" JIC X 1/2" NPT 90 DEGREE MALE ELBOW (D218-493), stabilizer cylinder hydraulics

1шт.

36208

TUBE - valve to L.H. stabilizer cylinder lower hose, hydraulics

1шт.

1/2" JIC X 1/2" NPT 90 DEGREE MALE ELBOW (D218-493), stabilizer cylinder hydraulics

1шт.

36210

HOSE

- stabilizer cylinder (1/2" I.D. x 7/8" O.D. x 21-1/2" long), hydraulics

4шт.

1/2" JIC X 1/2" NPT 90 DEGREE MALE ELBOW, hose to stabilizer cylinder (D218-493), hydraulics

4шт.

38464

SEPARATOR

CYLINDER - stabilizer (Complete) (See Figure 29 for breakdown), hydraulics

2шт.

50879

PROFILE

ELBOW - 90 degree special, Tubes to stabilizer cylinder hoses, hydraulics

4шт.

1-3/16" - 16NF HEX. JAM NUT (D25-1512), stabilizer cylinder hydraulics

4шт.
