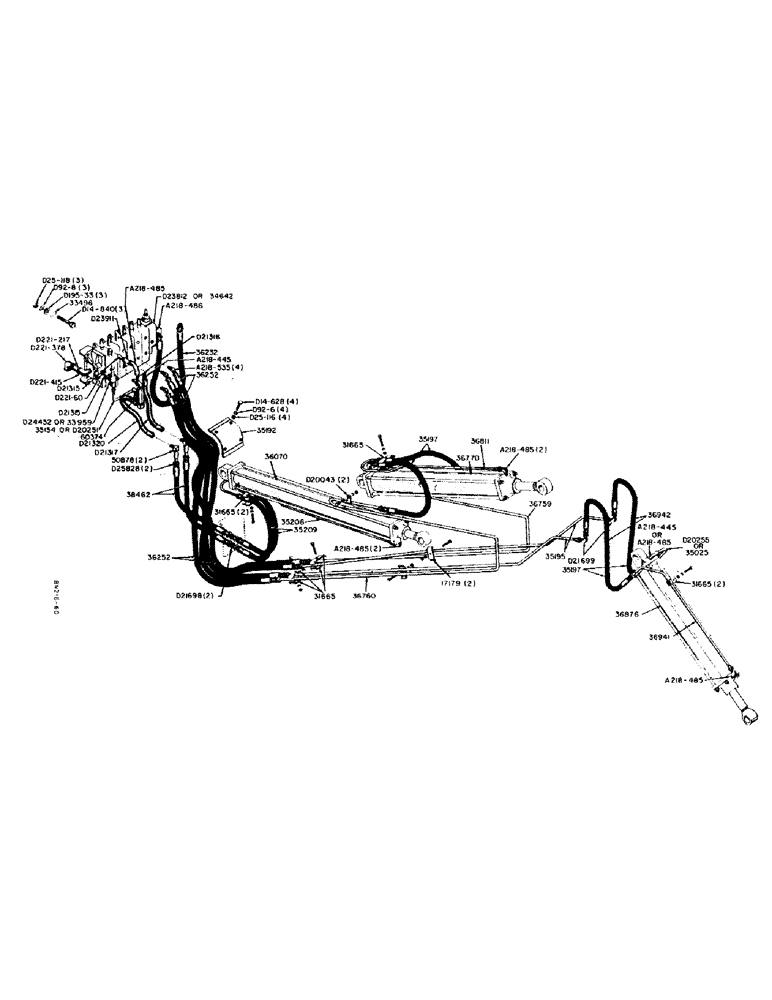

Запчасти Case 310 (18) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, VALVE

33496

BRAKE LINING

SHIM - valve mounting

1шт.

1/2" - 20 X 2-1/2" NF HEX. HD. CAP SCREW (D14-840)

3шт.

1/2" PLAIN WASHER (D195-33)

3шт.

1/2" LOCKWASHER (D92-8)

3шт.

1/2" - 20NF HEX. NUT (D25-118)

3шт.

33959

PIPE FITTING

VALVE - relief, boom down pressure (Has no. "985" on casting) See Figure 40 for breakdown: also see D24452

1шт.

1/2" NPT X 3-1/2" PIPE NIPPLE (R221-193) Use D21315

1шт.

1/2" NPT X 3/4" NPT REDUCING BUSHING (D221-60)

1шт.

34642

X

VALVE - hydraulic control, backhoe (Use D23812)

1шт.

35146

DISCONNECT - quick (includes 1 - 36262 and 1 - 36263 halves)

1шт.

35154

TUBE - valve to top side of relief valve (See D20251)

1шт.

1/2" NPT X 5/8" JIC MALE CONNECTOR (A218-445)

2шт.

1/2" NPT PIPE TEE (D221-424)

1шт.

35192

BRACKET - hose mounting

1шт.

3/8" - 24 X 1-3/4" NF HEX. HD. CAP SCREW (D14-628)

4шт.

3/8" LOCKWASHER (D92-6)

4шт.

3/8" - 24NF HEX. NUT (D25-116)

4шт.

36232

HOSE ASSY.

HOSE - valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 32")

1шт.

3/4" JIC X 3/4" NPT, 90 DEGREE MALE ELBOW, VALVE TO PUMP PRESSURE LINE HOSE (A218-486)

1шт.

36262

DISCONNECT - quick, male half (See 35146)

1шт.

90 DEGREE STREET ELBOW, 3/4" NPT (D221-415)

1шт.

36263

DISCONNECT - quick, female half (See 35146)

1шт.

3/4" JIC X 3/4" NPT, 90 degree male elbow, Valve to quick disconnect (A218-486)

1шт.

D20251

TUBE - valve to bottom side of relief valve (See 35154)

1шт.

1/2" NPT X 5/8" JIC, 90 Degree male elbow (A218-485)

1шт.

D21315

NIPPLE - pipe tee and relief valve (1/2" NPT x 3-1/2" EH pipe)

2шт.

1/2" NPT X 3/4" NPT REDUCING BUSHING (D221-60)

1шт.

D23812

VALVE

- hydraulic control, backhoe (Note: D23812 and 34642 Valves are identical insofar as field service is concerned) (See Figure 36 for breakdown)

1шт.

3/4" NPT, 90 degree street elbow (D221-415)

1шт.

3/4" NPT X 3" PIPE NIPPLE (D221-217)

1шт.

3/4" NPT ELBOW (D221-378)

1шт.

D23911

FITTING

TEE - female, boom down pressure return line (1/2" NPT)

1шт.

D24452

VALVE

- relief, boom down pressure (Has no. "2716" on casting) See Figure 41 for breakdown; Also see 33959

1шт.

1/2" NPT X 3-1/2" PIPE NIPPLE (R221-193) Use D21315

1шт.

31665

COLLAR CLAMP

CLAMP - hose, boom cylinder hydraulic system

2шт.

5/16" - 24 X 1-3/4" NF HEX. HD. CAP SCREW (D14-528), boom cylinder hydraulic system

1шт.

5/16" LOCKWASHER (D92-5), boom cylinder hydraulic system

1шт.

5/16" - 24NF hex. nut (D25-115), boom cylinder hydraulic system

1шт.

35206

TUBE - boom cylinder rear port, hydraulic system

1шт.

5/8" JIC X 1/2" NPT, 90 degree male elbow, Boom cylinder parts (A218-485), hydraulic system

2шт.

35209

HOSE ASSY.

HOSE - tower to boom cylinder (5/8" I.D. x 1" O.D. x 32"), hydraulic system

2шт.

36070

TOY

CYLINDER - boom, complete (See Figure 30 for breakdown), hydraulic system

1шт.

36202

HOSE

TUBE - pipe tee to R.H. male elbow (Before backhoe serial number 4009763) Use D21317 hose, boom cylinder hydraulic system

1шт.

1/2" NPT X 5/8" JIC MALE CONNECTOR (A218-445), boom cylinder hydraulic system

1шт.

36204

HOSE

TUBE - flow control valve to L.H. male elbow (Before backhoe serial number 4009763) Use D21320 hose, boom cylinder hydraulic system

1шт.

38462

HOSE ASSY.

HOSE - bulkhead elbow to tower (1/2" I.D. x 7/8" O.D. x 26-1/4" long), boom cylinder hydraulic system

2шт.

50878

ROLLER

ELBOW - 90 degree special, Tubes to boom cylinder hoses, hydraulic system

2шт.

7/8" - 14NF HEX. JAM NUT (D25-1514) Use D25828, boom cylinder hydraulic system

2шт.

60374

VALVE

- flow control (See Figure 42 for breakdown), boom cylinder hydraulic system

1шт.

5/8" JIC X 1/2" NPT 90 DEGREE MALE ELBOW (A218-485), boom cylinder hydraulic system

1шт.

1/2" NPT X 2" PIPE NIPPLE (D221-190) USE D21316, boom cylinder hydraulic system

1шт.

D21316

NIPPLE - pipe, flow control valve to backhoe valve (1/2" NPT x 2" EH pipe), boom cylinder hydraulic system

1шт.

1/2" NPT 90 DEGREE STREET ELBOW (D221-414), boom cylinder hydraulic system

1шт.

D21317

HOSE - pipe tee to R.H. male elbow (1/2" I.D. x 7/8" O.D. x 22-1/2" long) (Original equipment - backhoe serial number 4009763 and after), boom cylinder hydraulic system

1шт.

D21320

HOSE - flow control valve to L.H. male elbow (1/2" I.D. X 7/8" O.D. x 15" long) (Original equipment - backhoe serial number 4009763 and after), boom cylinder hydraulic system

1шт.

D21698

UNION

- bulkhead tower, boom cylinder hoses, boom cylinder hydraulic system

2шт.

D25828

NUT - hex. jam, special (50878 Elbow) (7/8" - 14NF), boom cylinder hydraulic system

2шт.

31665

COLLAR CLAMP

CLAMP - crowd and bucket cylinder tubes, hydraulic system

8шт.

5/16" - 24 X 1-3/4" NF HEX. HD. CAP SCREW (D14-528), crowd cylinder hydraulic system

5шт.

5/16" LOCKWASHER (D92-5), crowd cylinder hydraulic system

5шт.

5/16" - 24NF HEX. NUT (D25-115), crowd cylinder hydraulic system

5шт.

35197

SHEAVE

HOSE - crowd cylinder (1/2" I.D. x 7/8" O.D. x 22" long), hydraulic system

2шт.

NLS

NO LONGER SERVICED

HOSE - valve to crowd cylinder (1/2" I.D. x 7/8" O.D. x 65" long), hydraulic system

2шт.

5/8" JIC X 1/2" NPT, 45 degree male elbow (A218-535), crowd cylinder hydraulic system

2шт.

36759

PIN

TUBE - R.H. valve hose to crowd cylinder hose, hydraulic system

1шт.

36760

PIN

TUBE - L.H. valve hose to crowd cylinder hose, hydraulic system

1шт.

36770

CYLINDER - crowd, complete (See Figure 32 for breakdown), hydraulic system

1шт.

36811

ELECTRIC CABLE

TUBE - crowd cylinder rear port, hydraulic system

1шт.

5/8" JIC X 1/2" NPT, 90 degree male elbow (A218-485), crowd cylinder hydraulic system

2шт.

D20043

CLAMP - crowd cylinder tubes, hydraulic system

2шт.

1/4" - 28 X 1" NF HEX. HD. CAP SCREW (D14-416), crowd cylinder hydraulic system

2шт.

1/4" LOCKWASHER (D92-4), crowd cylinder hydraulic system

2шт.

1/4" - 28NF HEX. NUT (D25-114), crowd cylinder hydraulic system

2шт.

17179

CLAMP - bucket cylinder tubes, hydraulic system

3шт.

5/16" - 24 X 1-3/4" NF HEX. HD. CAP SCREW (D14-528), bucket cylinder hydraulic system

3шт.

5/16" LOCKWASHER (D92-5), bucket cylinder hydraulic system

3шт.

5/16" - 24NF HEX. NUT (D25-115), bucket cylinder hydraulic system

3шт.

31665

COLLAR CLAMP

CLAMP - bucket cylinder tubes, hydraulic system

2шт.

5/16" - 24 X 1-1/4" NF HEX. HD. CAP SCREW (D14-520), bucket cylinder hydraulic system

1шт.

5/16" - 24 x 1-3/4" NF HEX. HD. CAP SCREW (D14-528), bucket cylinder hydraulic system

2шт.

5/16" LOCKWASHER (D92-5), bucket cylinder hydraulic system

1шт.

5/16" - 24NF HEX. NUT (D25-115), bucket cylinder hydraulic system

1шт.

35025

TUBE - bucket cylinder front port (Used in conjunction with male connector in cylinder port), hydraulic system

1шт.

5/8" JIC X 1/2" NPT MALE CONNECTOR (A218-445), bucket cylinder hydraulic system

1шт.

35195

TUBE - valve hose to bucket cylinder, hydraulic system

2шт.

36252

BEARING ASSY

HOSE - valve to bucket cylinder tubes (1/2" I.D. x 7/8" O.D. x 65" long), hydraulic system

2шт.

38676

CYLINDER - bucket, complete (See Figure 34 for breakdown), hydraulic system

1шт.

36941

TUBE - bucket cylinder rear port, hydraulic system

1шт.

1/2" NPT X 5/8" JIC MALE ELBOW (A218-485), bucket cylinder hydraulic system

1шт.

36942

HOSE

- bucket cylinder (1/2" I.D. x 7/8" O.D. x 44" long), hydraulic system

2шт.

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- 36942 hose, bucket cylinder hydraulic system

2шт.

5/16" - 24 X 5/8" NF HEX. HD. CAP SCREW (D14-510), bucket cylinder hydraulic system

2шт.

5/16" LOCKWASHER (D92-5), bucket cylinder hydraulic system

2шт.

D20255

TUBE - bucket cylinder front port (Used with 90 degree male elbow in cylinder port), hydraulic system

1шт.

1/2" NPT X 5/8" JIC, 90 degree male elbow (A218-485), bucket cylinder hydraulic system

1шт.

D21699

ELBOW - 90 degree bulkhead (5/8" JIC), bucket cylinder hydraulic system

2шт.
