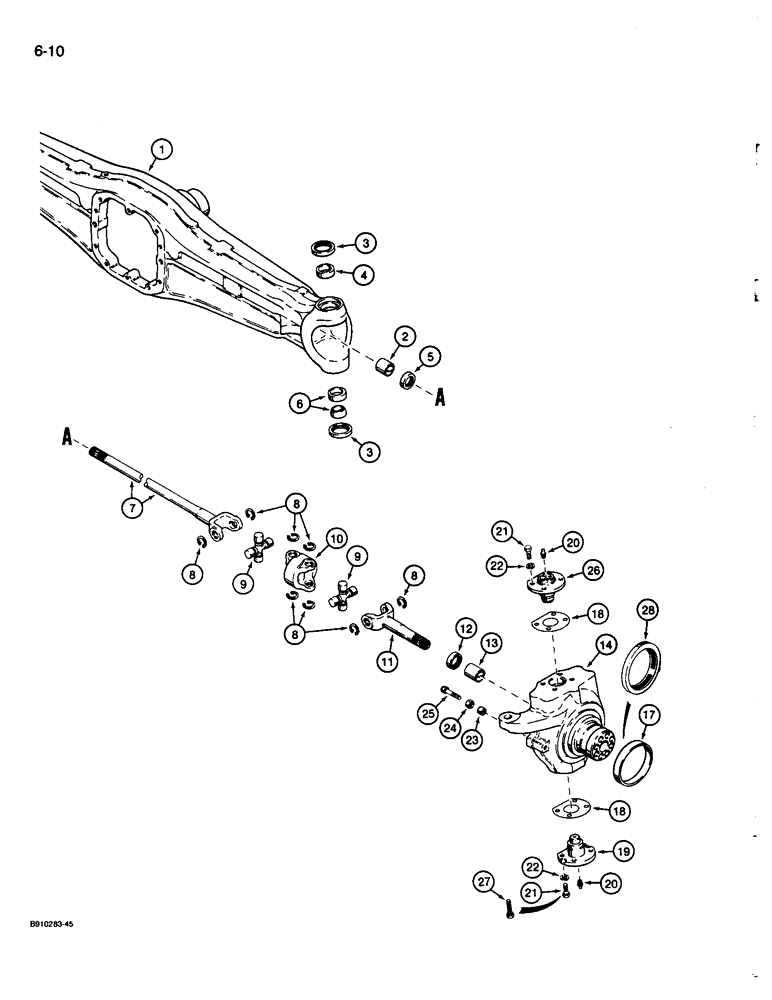

Запчасти Case 680L (6-10) - FOUR WHEEL DRIVE FRONT AXLE, SWIVEL HOUSING AND AXLE SHAFTS (06) - POWER TRAIN

A186454

CENTER AXLE

AXLE ASSEMBLY - Carraro 716-21 front four-wheel drive, Carraro No. 123072, parts list Figures 6-08 through 6-18, Includes: Ref. 1 - 28 on this figure

1шт.

D142884

HOUSING

ASSEMBLY - axle, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

D142950

BUSHING

- axle housing

2шт.

3

D142885

SEAL

- axle housing

4шт.

4

D142886

NYLON BEARING

BEARING - upper king, Serial Range: pin-housing

2шт.

5

N8897

OIL SEAL

SEAL - oil, axle housing

2шт.

6

D142888

SPHERICAL BEARING

BEARING - lower king, Serial Range: pin-housing

2шт.

7

D143003

FORK

SHAFT - axle, differential side, long

2шт.

8

D143165

RING

- snap, universal joint

16шт.

9

D143004

SPIDER ASSY.

JOINT - universal, axle shaft, cross

4шт.

10

D143002

BODY

- connecting

2шт.

11

D143005

FORK

SHAFT - axle, wheel side, short

2шт.

12

N8897

OIL SEAL

SEAL - oil, swivel housing

2шт.

D142904

HOUSING

ASSEMBLY - swivel, right-hand, Includes: Ref. 13 and 14

1шт.

13

D142906

BUSHING

- swivel housing

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - swivel, right-hand

1шт.

D142905

HOUSING

ASSEMBLY - swivel, left-hand, not shown, Includes: Ref. 15 and 16

1шт.

15

D142906

BUSHING

- swivel housing, not shown

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - swivel, left-hand, not shown

1шт.

17

K395138

WEAR RING

SLEEVE - wear, no longer available, order 1349265C1 seal, Ref. 28

2шт.

18

D142912

SHIM,58mm ID x 130mm OD x 0.1mm Thk

Swivel cap 0.10mm Thk

1шт.

18

D142913

SHIM,58mm ID x 130mm OD x 0.19mm Thk

Swivel cap 0.19mm Thk

1шт.

18

D142914

SHIM,0.35mm Thk

Swivel cap 0.35mm Thk

1шт.

19

D142911

PIN

- king, swivel housing, lower

2шт.

20

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease

4шт.

21

D142915

BOLT,Hex, M16 x 40, 8.8

replaced by ref. 27, D150627 bolt Hex, M16 x 40, 8.8

16шт.

22

K260268

LOCK WASHER,M16

WASHER - lock, 16 mm, use with Ref. 21, bolt

16шт.

23

D142909

BUSHING,15mm ID x 24.5mm OD x 10.5mm L

SPACER - steering stop bolt

4шт.

24

D142908

NUT

- hex, 10 mm

4шт.

25

D142907

SCREW

BOLT - special, steering stop

4шт.

26

D142910

PIN

- king, swivel housing, upper

2шт.

27

D150627

SCREW

BOLT - self-locking, special

16шт.

28

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, 149 x 176 x 16

2шт.
