Запчасти Case 680L (6-08) - FOUR WHEEL DRIVE FRONT AXLE, CARRIER AND SUPPORTS (06) - POWER TRAIN

A186454

CENTER AXLE

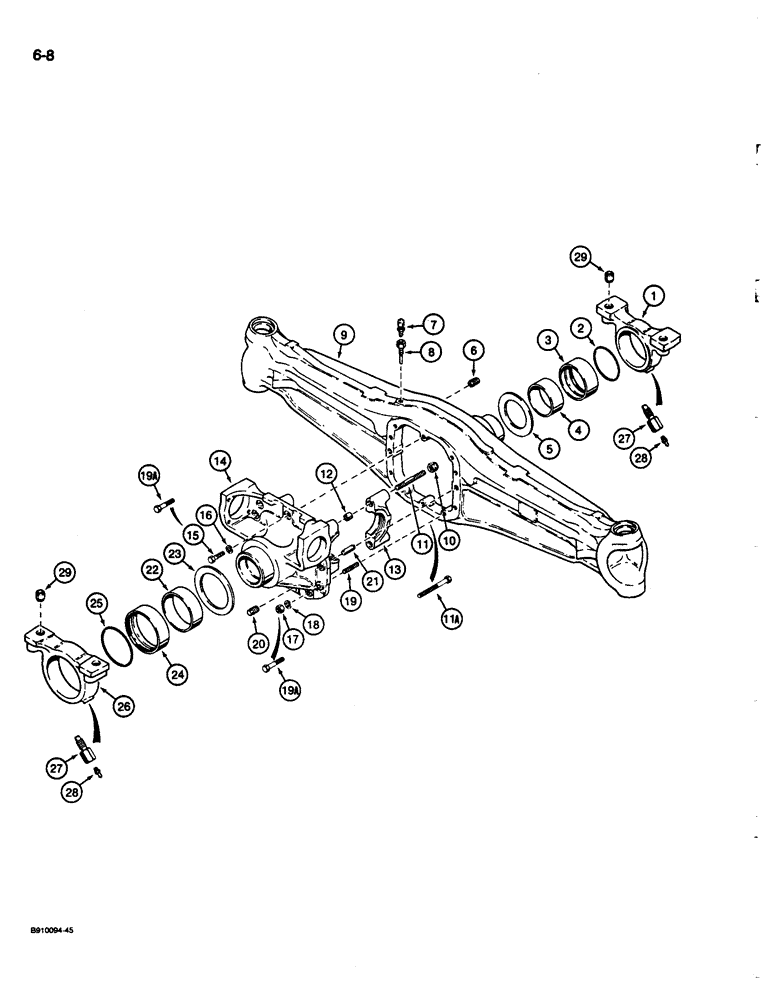

AXLE ASSEMBLY - Carraro 716-21 front four-wheel drive, Carraro No. 123072, parts list Figures 6-08 through 6-18, Includes: Ref. 1 - 29 on this figure

1шт.

1

D142882

SUPPORT

- front

1шт.

2

K965267

O-RING,0.07" Thk x 4.489" ID

- front support

1шт.

3

K965265

BUSHING

- front support, outer

1шт.

4

K965266

BUSHING

- front support, inner

1шт.

5

K395022

WASHER

- thrust, front support

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

Housing, Front M22 x 1.5

1шт.

7

K965231

BREATHER

- housing

1шт.

8

D142949

EXTENSION

TUBE - breather

1шт.

9

D142884

HOUSING

ASSEMBLY - axle, see Figure 6-10 for bushings

1шт.

D142951

SUPPORT

CARRIER ASSEMBLY - steering cylinder, Includes: Ref. 10 - 14

1шт.

10

K260157

NUT

- hex, special, use with Ref. 11, stud

4шт.

11

D143001

STUD

- special, no longer available, order Ref. 11A, S301065 bolt

4шт.

11a

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Self-locking, Special Hex Flg, M14 x 75, 12.9

4шт.

Ref #11A - S301065 bolt-m14 - Effective with axle S/N CA/0929, replaced by D150111 bolt-m16. 11/27/95

1шт.

12

K260153

RING

PIN - dowel, hollow

4шт.

13

NSS

NOT SOLD SEPARAT

CAP - carrier

2шт.

14

NSS

NOT SOLD SEPARAT

CARRIER - steering cylinder

1шт.

15

D142889

BOLT

- hex head, 12 mm x 40 mm, no longer available, order Ref. 19A, S301064 bolt

5шт.

16

K965425

WASHER

- lock, 12 mm, use with Ref. 15, bolt

5шт.

17

905834R1

THIN NUT,M12 x 1.25, Thin

Hex, use with Ref. 19, stud M12 x 1.25, Thin

5шт.

18

K965425

WASHER

- lock, 12 mm, use with Ref. 19, stud

5шт.

19

K262139

STUD

- carrier mounting, no longer available, order Ref. 19A, S301064 bolt

5шт.

19a

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, , Self-locking, Special Hex Flg, M12 x 33, 12.9

10шт.

20

A156873

PLUG, DRAIN,M22 x 1.5

Carrier M22 x 1.5

1шт.

21

D142890

DOWEL

PIN - dowel, carrier

2шт.

22

D142895

BUSHING

- rear support, inner

1шт.

23

D142891

WASHER

- thrust, rear support

1шт.

24

D142892

BUSHING

- rear support, outer

1шт.

25

D142893

O-RING

- rear support

1шт.

26

D142894

SUPPORT

- rear

1шт.

27

D142897

SCREW

- hollow, grease extender

2шт.

28

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease

2шт.

29

D142896

DOWEL

PIN - dowel, hollow, axle mounting

4шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, carrier to axle housing, not shown

1шт.
