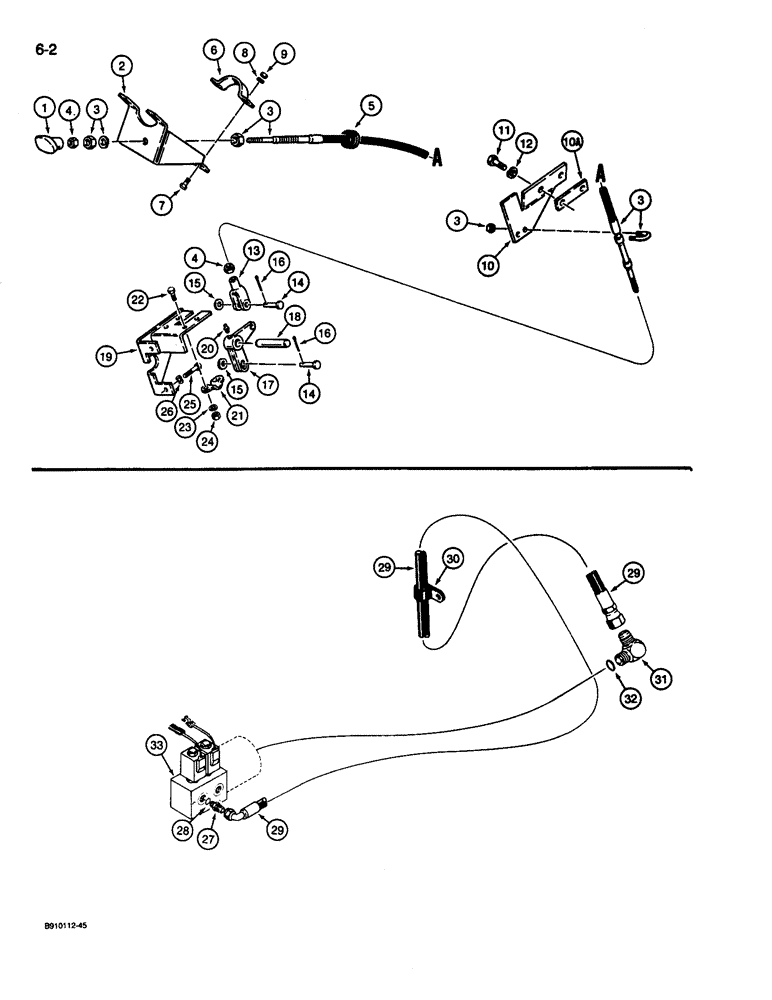

Запчасти Case 680L (6-02) - FOUR WHEEL DRIVE FRONT AXLE CONTROL, MECHANICAL ENGAGEMENT/DISENGAGEMENT, PRIOR TO P.I.N. JJG0070953 (06) - POWER TRAIN

1

D143571

HANDLE

- T-grip

1шт.

2

D139043

HOUSING

BRACKET - mounting, four-wheel drive cable

1шт.

3

D143563

CABLE

- four-wheel drive control, includes hardware

1шт.

4

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8"-24 NF, plated

2шт.

5

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- cable, mounts in firewall

1шт.

6

D66049

CLAMP

- cable bracket to steering column

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

D143597

BRACKET

- mounting, cable, lower, attaches to engine flywheel housing

1шт.

10a

D143596

SPACER

PLATE - spacer

1шт.

11

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex head, 12 mm-1.75 x 25 mm, plated

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8", cable end

1шт.

14

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

2шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

17

D139011

LEVER

- control

1шт.

18

D139007

PIN

- lever pivot

1шт.

19

D139008

BRACKET

- pivot, Serial Range: mounts-transmission

1шт.

20

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4"-28 NF taper

1шт.

21

D121608

CLAMP

- pivot

2шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 28, electrical engagement/disengagement, Start Serial: JJG0070953

1шт.

29

D147160

HOSE

- 1285 mm long, electrical engagement/disengagement, Start Serial: JJG0070953

1шт.

30

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter, uses flywheel housing mounting hardware, electrical engagement/disengagement, Start Serial: JJG0070953

1шт.

31

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring, Includes: Ref. 32, electrical engagement/disengagement, Start Serial: JJG0070953

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Electrical engagement/disengagement, Start Serial: JJG0070953

1шт.

33

D147091

VALVE

ASSEMBLY - dual solenoid, four wheel drive engagement/disengagement and clutch cutout, parts list Figure 6-58, attaches to rear harness, electrical engagement/disengagement, Start Serial: JJG0070953

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Electrical engagement/disengagement, Start Serial: JJG0070953

1шт.
