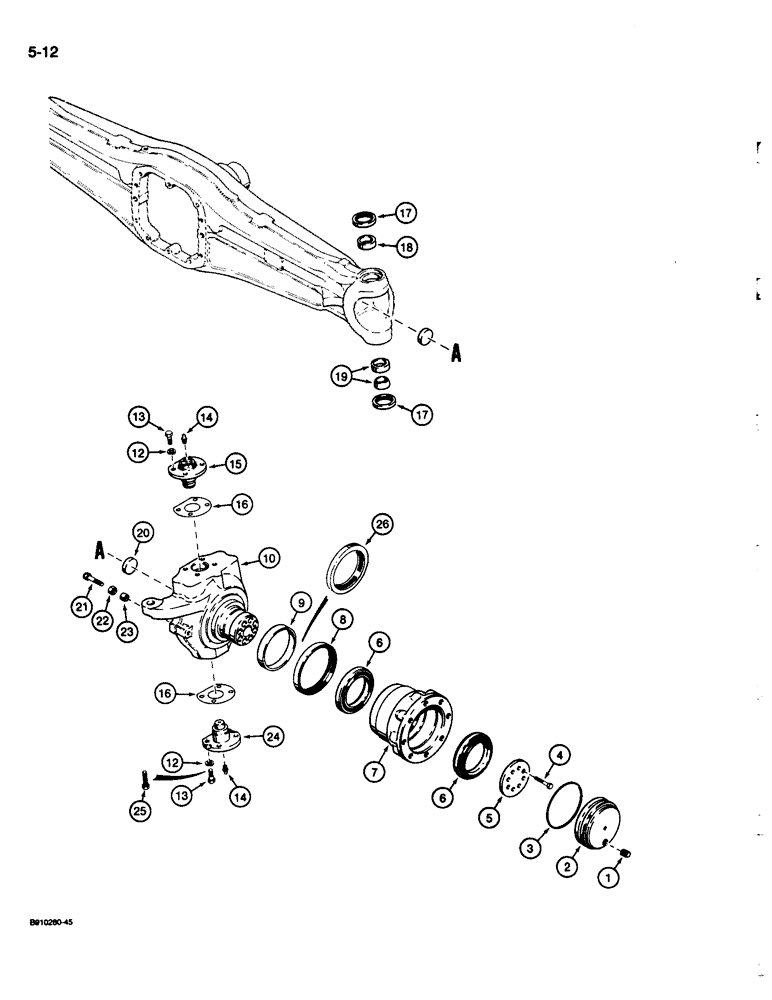

Запчасти Case 680L (5-12) - TWO WHEEL DRIVE FRONT AXLE, HUB AND SWIVEL HOUSING (05) - STEERING
№
Артикул
Название
Примечание
Количество
D139046
AXLE
ASSEMBLY - Carraro 716-21 front two wheel drive, Carraro No. 123784, parts list Figures 5-10 through 5-14, Includes: Ref. 1 - 26 on this figure
1шт.
1
A156873
PLUG, DRAIN,M22 x 1.5
Cover, Fill M22 x 1.5
2шт.
2
D142919
COVER
- hub bearing
2шт.
3
D142900
O-RING
- cover
2шт.
4
D142901
BOLT
- hex head, 14 mm x 55 mm
16шт.
5
D142903
SEAT ASSY.
PLATE - bearing retaining
2шт.
7
D142902
HUB
- wheel
2шт.
8
K395102
OIL SEAL
- oil, used with Ref. 9 wear sleeve, no longer available, order 1349265C1 seal, Ref. 26
2шт.
9
K395138
WEAR RING
SLEEVE - wear, no longer available, order 1349265C1 seal, Ref. 26
2шт.
10
D142904
HOUSING
- swivel, right-hand
1шт.
11
D142905
HOUSING
- swivel, left-hand, not shown
1шт.
12
K260268
LOCK WASHER,M16
WASHER - lock, 16 mm, use with Ref. 13 bolt
16шт.
13
D142915
BOLT,Hex, M16 x 40, 8.8
replaced by ref. 25, D150627 bolt Hex, M16 x 40, 8.8
16шт.
14
5194260
LUBE NIPPLE,M6 x 1, 16mm lg
FITTING - grease
4шт.
15
D142910
PIN
- king, swivel housing, upper
2шт.
16
D142912
SHIM,58mm ID x 130mm OD x 0.1mm Thk
Swivel cap 0.10mm Thk
1шт.
16
D142913
SHIM,58mm ID x 130mm OD x 0.19mm Thk
Swivel cap 0.19mm Thk
1шт.
16
D142914
SHIM,0.35mm Thk
Swivel cap 0.35mm Thk
1шт.
17
D142885
SEAL
- axle housing
4шт.
18
D142886
NYLON BEARING
BEARING - upper king, Serial Range: pin-housing
2шт.
20
D142887
PLUG
- axle and swivel housing
4шт.
21
D142907
SCREW
BOLT - special, steering stop
4шт.
22
D142908
NUT
- hex, 10 mm
4шт.
23
D142909
BUSHING,15mm ID x 24.5mm OD x 10.5mm L
SPACER - steering stop bolt
4шт.
24
D142911
PIN
- king, swivel housing, lower
2шт.
25
D150627
SCREW
BOLT - self-locking, special
16шт.
26
OIL SEAL,149mm ID x 176mm OD x 16mm Thk
- oil, 149 x 176 x 16, replaces Ref. 8 and 9
2шт.
Выбрано товаров: 29
