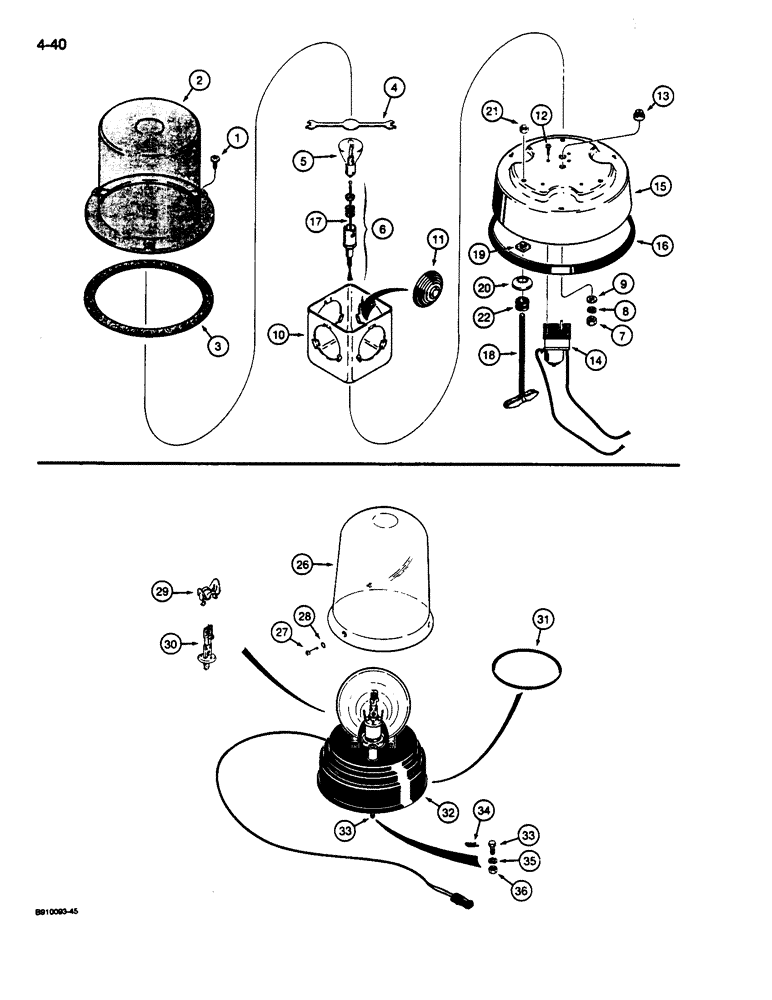

Запчасти Case 680L (4-40) - ROTATING BEACONS (04) - ELECTRICAL SYSTEMS

D137275

LIGHT, WARNING

BEACON ASSEMBLY - rotating, Signal Stat, 360 degree, 12 volt, amber lens, Includes: Ref. 1 - 25, no longer available, order D147114 beacon, see below (Ref. 26-36)

1шт.

1

187-39

SELF-TAP SCREW,Rd Hd, #12 x 5/8"

SCREW - round head, self-tapping, No. 12 x 5/8"

3шт.

2

N8426

LENS

DOME - rotating beacon

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - dome

1шт.

4

NSS

NOT SOLD SEPARAT

STRAP - basket

1шт.

5

193096

TUBE ASSY.

- 12 volt, No. 1195

1шт.

6

N8430

SOCKET

ASSEMBLY - beacon, component parts not serviced separately

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

10

NSS

NOT SOLD SEPARAT

BASKET - less lenses

1шт.

11

N8423

GASKET

LENS - beacon

4шт.

12

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

- machine, pan head slotted, No. 6-32 NC x 5/8"

3шт.

13

NSS

NOT SOLD SEPARAT

GEAR - beacon

1шт.

14

N14442

MOTOR

ASSEMBLY - beacon, 12 volt, includes connector which is not serviced separately

1шт.

15

NSS

NOT SOLD SEPARAT

BASE - beacon

1шт.

16

N8422

GASKET

- base

1шт.

17

NSS

NOT SOLD SEPARAT

WIRE - jumper, Serial Range: bulb-motor

1шт.

L35092

KIT

- mounting, includes instruction sheet, Includes: Ref. 18 - 25

1шт.

18

L35148

BOLT

- toggle, No. 10-24 NC x 4"

3шт.

19

129-47

NUT

- square, No. 10-24 NC, if used

3шт.

20

L35146

LOCK WASHER

WASHER - lock, No. 10

3шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

22

F13115

GROMMET

- rubber, mounting

3шт.

23

T29401

NUT

- twist-on, wire, not shown, not required

1шт.

24

A43211

GROMMET

- rubber, wire, if used, not shown

1шт.

25

L35145

HARNESS

WIRE - 8 foot block, not shown

1шт.

D147114

LIGHT, WARNING

BEACON ASSEMBLY - rotating, Britax, 360 degree, 12 volt, amber lens, Includes: Ref. 26 - 36

1шт.

26

A187542

LENS

- beacon, amber

1шт.

27

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, No. 8 x 1/2 inch, Lens mounting

3шт.

28

S5598

O-RING,0.106" ID x 0.218" OD x 0.73"

SEAL - lens mounting screw

3шт.

29

NSS

NOT SOLD SEPARAT

CLIP - bulb

1шт.

30

3217312R1

BULB,H1, 12V, 55W

12V - 55W, Halogen, Rotating beacon

1шт.

31

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

32

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - with drive motor, rotating beacon

1шт.

33

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm-1.0 x 20 mm

3шт.

34

136-54

PIN

- cotter, retains bolt, Serial Range: head-base

3шт.

35

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm

3шт.

36

NSS

NOT SOLD SEPARAT

NUT - hex, 6 mm-1

3шт.
