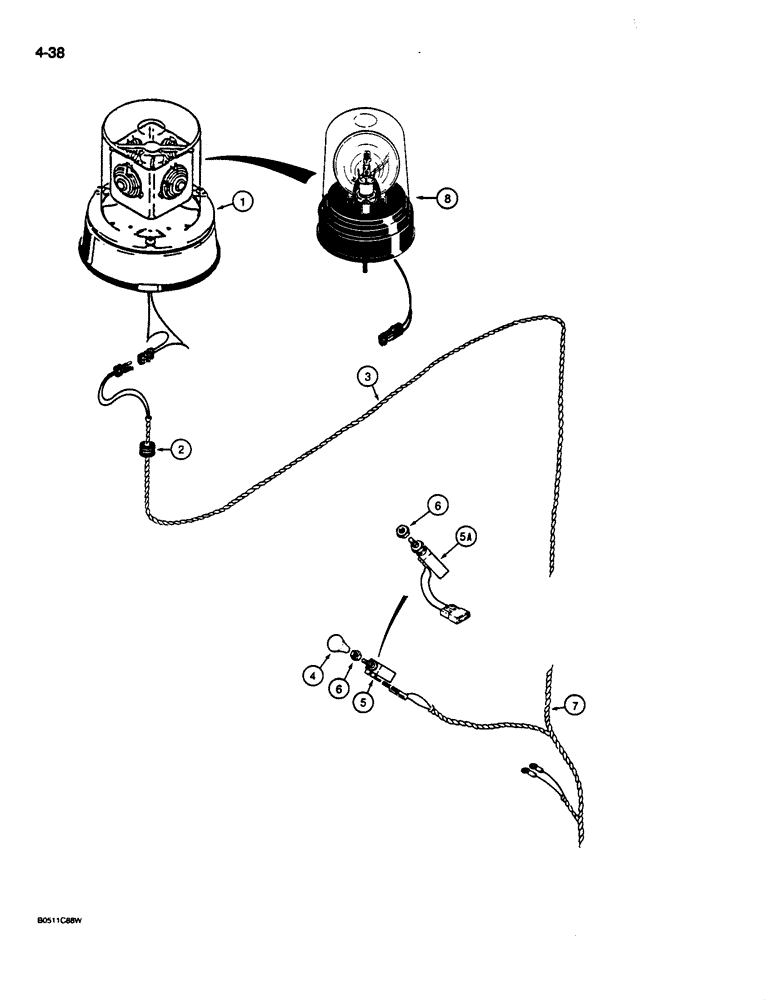

Запчасти Case 680L (4-38) - ROTATING BEACON AND CIRCUIT, CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

1

D137275

LIGHT, WARNING

BEACON ASSEMBLY - rotating, Signal Stat, 12 volt, amber lens, parts list Figure 4-40, no longer available, order D147114 beacon, Ref. 8

1шт.

2

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- wire

1шт.

3

REF

INSTRUCTION

HARNESS - cab or canopy, see Figure 4-28 for canopy and Figure 4-30 or 9-134 for cab

1шт.

4

D92573

BUTTON

- switch

1шт.

5

D74330

SWITCH

- rotating beacon, no longer used, order D145075 switch, Ref. 5A

1шт.

5a

D145075

SWITCH

- rotating beacon, Includes: Ref. 6

1шт.

6

N7557

NUT

- special, 3/8"-24 NF, switch retaining

1шт.

7

D145590

HARNESS

- instrument, see Figure 4-20 for instrument panel harness and Figure 4-28 or 4-30 for canopy or cab flasher switches

1шт.

8

D147114

LIGHT, WARNING

BEACON ASSEMBLY - rotating, Britax, 12 volt, amber lens, parts list Figure 4-40

1шт.
