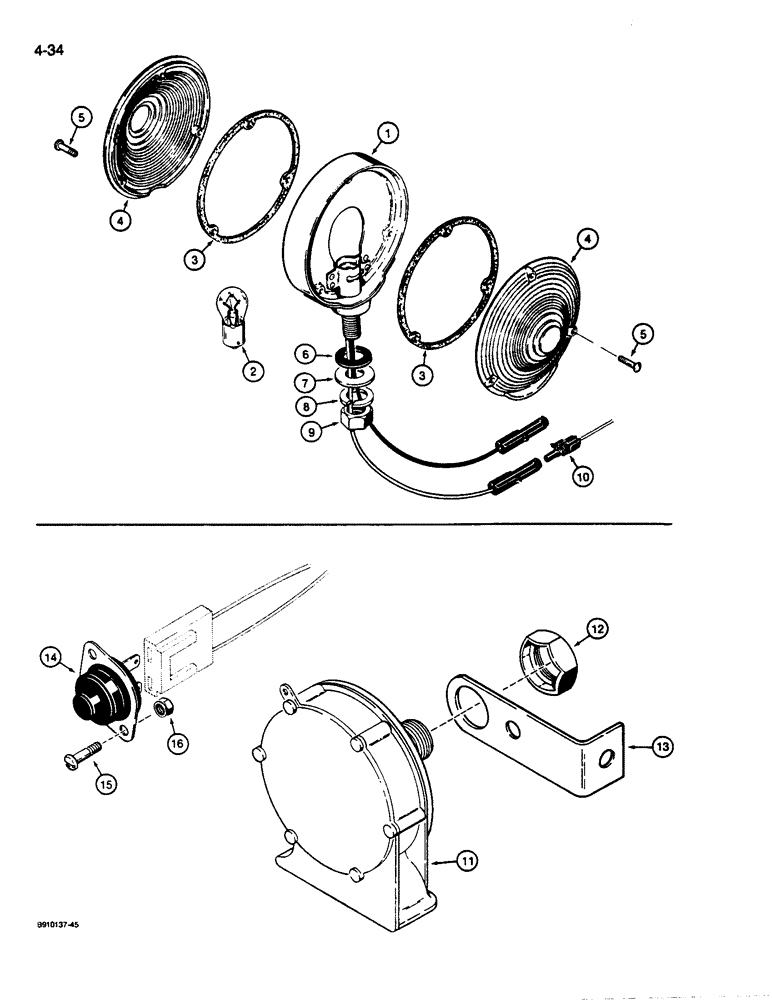

Запчасти Case 680L (4-34) - TURN SIGNAL, FLASHER, AND HORN (04) - ELECTRICAL SYSTEMS

D137290

LAMP

ASSEMBLY - turn signal and flasher, used on cab or canopy models, Includes: Ref. 1 - 10

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - signal and flasher lamp

1шт.

2

A41264

BULB,#1156, 12V

1шт.

L32214

LENS

KIT - lens replacement, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

4

NSS

NOT SOLD SEPARAT

LENS - amber

1шт.

5

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, round head slotted, No. 6-32 NC x 5/8"

3шт.

6

L32256

WASHER

BUSHING - rubber

1шт.

7

195-106

WASHER,1/2"

- flat, , plated 1/2"

1шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

129-125

NUT,1/2"-20, G5

1шт.

10

NSS

NOT SOLD SEPARAT

CONNECTOR - body, connects to white ground wire

1шт.

11

D123205

HORN

- 12 volt

1шт.

12

L30866

LOCK NUT

- horn mounting

1шт.

13

D136410

BRACKET

- horn mounting

1шт.

14

D67872

SWITCH

- push button, horn

1шт.

15

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head slotted, No. 10-32 NF x 1/2", horn

2шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- with lock washer, No. 10-32 NF, plated, horn

2шт.
