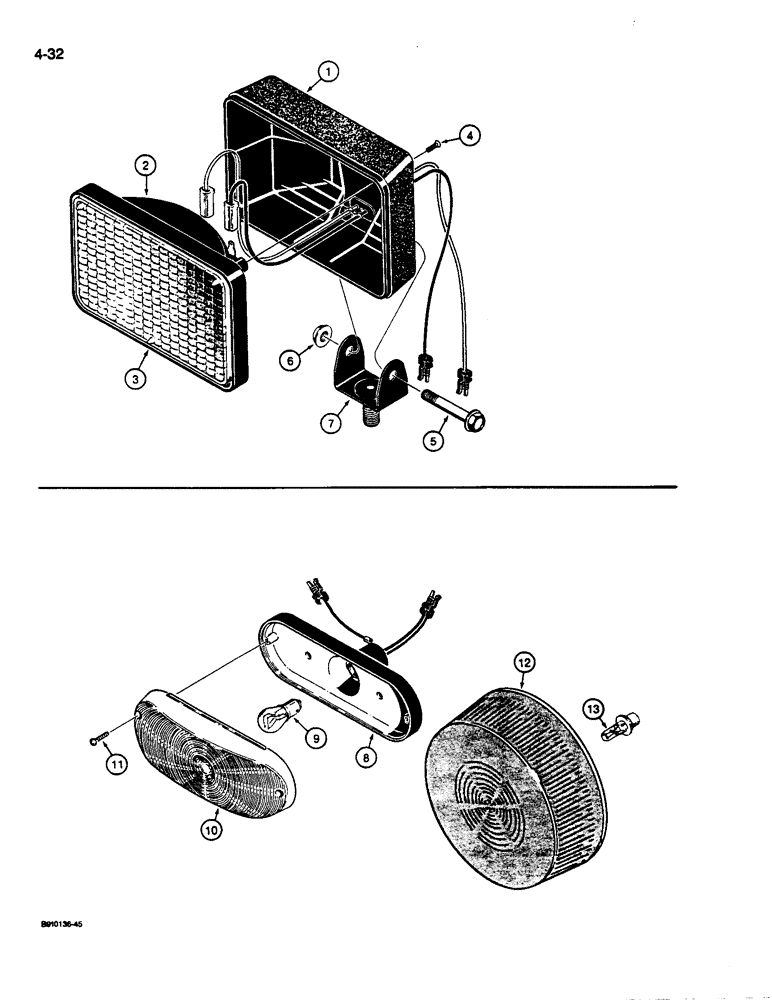

Запчасти Case 680L (4-32) - TRACTOR LAMPS, FRONT DRIVING AND REAR FLOOD LAMPS, USED ON MODELS WITH CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

D137294

LIGHT ASSY.

LAMP ASSEMBLY - front driving and rear flood, on cab models Ref. 7 bracket is not used on front lamps, Includes: Ref. 1 - 7

3-4шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER - shell

1шт.

3

F45230

HEADLIGHT

BULB - halogen

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - pan head, self-tapping, No. 8 x 1/2"

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

7

N14626

SUPPORT

BRACKET - lamp

1шт.

D137293

LAMP

ASSEMBLY - stop and tail, used on cab or canopy models, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp, complete

1шт.

9

T34857

BULB,C6, #1157, 12.8V

- No. 1157, stop and tail

1шт.

10

N6836

LENS

- red, lamp

1шт.

11

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - round head, self-tapping, No. 6 - 32 NC x 5/8", plated

2шт.

A187704

LAMP

ASSEMBLY - tail, used on canopy models without flashers, if used, Includes: Ref. 12 and 13, stop and tail lamps

1шт.

12

NSS

NOT SOLD SEPARAT

LENS AND BODY - lamp, complete

1шт.

13

D71346

TAIL LAMP,12V

BULB - No. 168, lamp

1шт.
