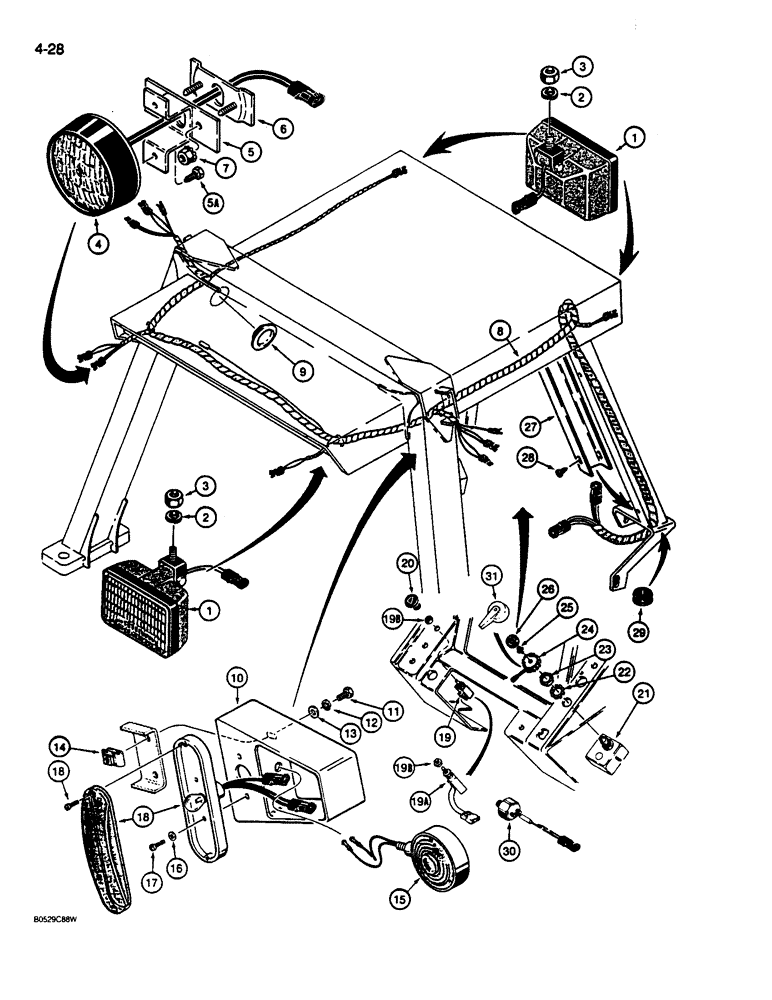

Запчасти Case 680L (4-28) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

D137294

LIGHT ASSY.

LAMP ASSEMBLY - front driving and rear flood, 3 used on models without flashers, 4 used on models with flashers, parts list Figure 4-32

3-4шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3-4шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

3-4шт.

4

A187704

LAMP

ASSEMBLY - tail, left rear, used on models without flasher lamps only, parts list Figure 4-32, see Ref. 15 and 18 below

1шт.

5

D140734

BRACKET

- lamp mounting

1шт.

5a

187-574

SELF-TAP SCREW,Hex Hd, #10 x 3/4"

SCREW - hex head, self-tapping, No. 10-24 NC x 3/4", plated

2шт.

6

D138098

BREAKER

PLATE - bracket retaining

1шт.

7

193-1006

NUT,Keps, w/LW, 1/4"-20

- with lock washer, 1/4"-20 NC, plated

2шт.

8

D138052

HARNESS

- ROPS canopy

1шт.

9

205-72

HOLE PLUG BUTTON,3"

PLUG - button, , access 3"

2шт.

10

D120124

BRACKET

- side lamps, if used

2шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

13

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

14

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16"-18 NC

4шт.

15

D137290

LAMP

ASSEMBLY - turn signal and flasher, if used, parts list Figure 4-34

2шт.

16

195-510

WASHER,#8

- flat, No. 8, plated

4шт.

17

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW - pan head, self-tapping, No. 8 x 5/8", plated

4шт.

18

D137293

LAMP

ASSEMBLY - stop and tail, if used, see Ref. 4 above, parts list Figure 4-32

2шт.

19

D74330

SWITCH

- flasher, no longer used, order D145075 switch, Ref. 19A see Figure 4-20 for front and rear lamp switches

1шт.

19a

D145075

SWITCH

- flasher, see Figure 4-20 for front and rear lamp switches, Includes: Ref. 19B

1шт.

19b

N7557

NUT

- special, 3/8"-24 NF, switch retaining

1шт.

20

D88134

KNOB

- flasher switch

1шт.

21

A77184

SWITCH

- turn signal

1шт.

22

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

23

D91352

JAM NUT

- special

1шт.

24

A141736

KNOB

- turn signal switch, no longer available, order A177140 knob

1шт.

25

193-556

SCREW,SEMS, Pan Hd, #5-40 x 1/2"

- with lock washer, No. 5-40 NC x 1/2", black

1шт.

26

A160035

PLATE

- knob, turn signal switch insert, used with A141736 knob, Ref. 24

1шт.

27

D138576

COVER

- post, harness

1шт.

28

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, 1/4"-20 NC x 1/2", plated

4шт.

29

D138935

GROMMET,11/16" ID x 1" Groove Dia, Str Cut

- harness

1шт.

30

D138955

SWITCH

- pressure, stop lamp, mounts in tee at brake master cylinder, see Figure 7-06 Ref. 18 for tee

2шт.

31

A177140

KNOB

- turn signal switch

1шт.
