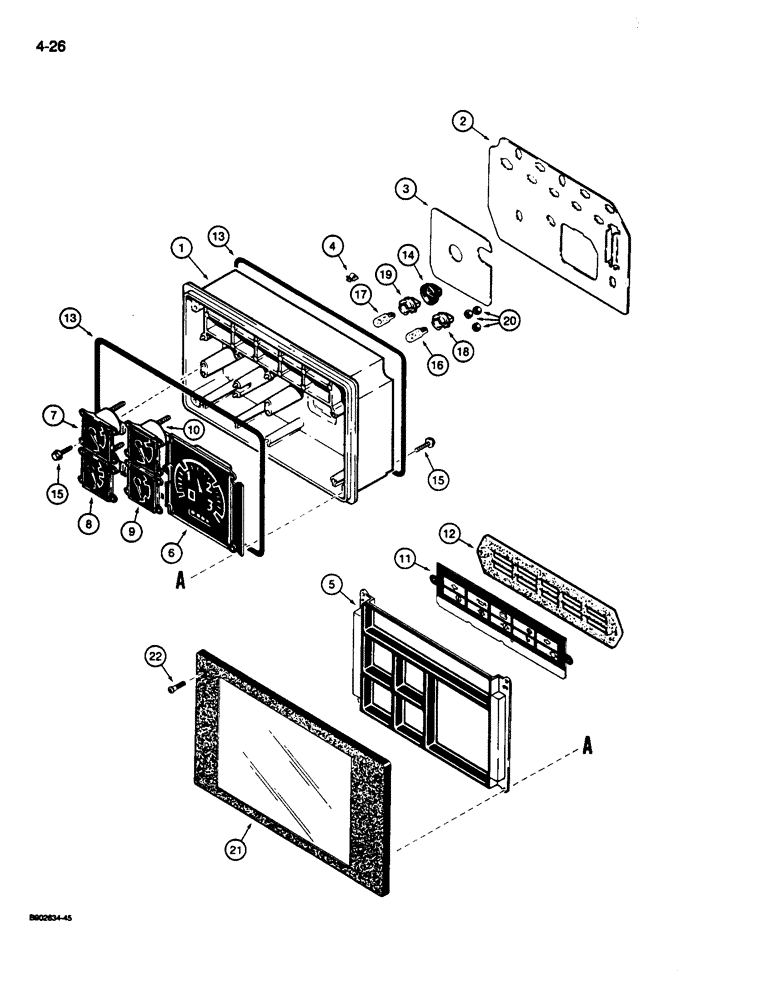

Запчасти Case 680L (4-26) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

A187965

CLUSTER

ASSEMBLY - instrument, tractor (replaces D144970), Includes: Ref. 1 - 21

1шт.

A187965R

REMAN-INSTR CLUSTER

680L

1шт.

A187965C

CORE-CLUSTER, INSTR

Return Number

1шт.

A191114

HOUSING

ASSEMBLY - instrument cluster, Includes: Ref. 1 - 4

1шт.

1

N13545

INSTRUMENT PANEL

- instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

BOARD - printed circuit, instrument cluster

1шт.

3

H422758

GASKET,1.52mm Thk

- housing

1шт.

4

H422766

CLIP, SPRING

CLIP - gauges

12шт.

5

N14227

COVER

- instrument cluster

1шт.

6

N13543

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

7

N13542

GAUGE

- water temperature

1шт.

8

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

9

N6807

ELECTRICAL GAUGE

GAUGE - voltmeter

1шт.

10

N13546

GAUGE

- oil temperature

1шт.

11

D146335

BAND

LENS - identification, warning lamps

1шт.

12

D71342

GASKET,3.05mm Thk

- lens

1шт.

13

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

14

D71344

COVER

BOOT - lamp socket, rubber

3шт.

15

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

16

D71346

TAIL LAMP,12V

BULB - warning, No. 168

8шт.

17

W10478

LAMP

BULB - illumination, No. 194

3шт.

18

A47123

SOCKET/RECEPTACLE

SOCKET - lamp

8шт.

19

A47125

PEDESTAL

SOCKET - lamp, green

3шт.

20

225-14106

NUT,#6-32

3шт.

21

N14225

SHIELD

- instrument cluster

1шт.

22

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

4шт.
