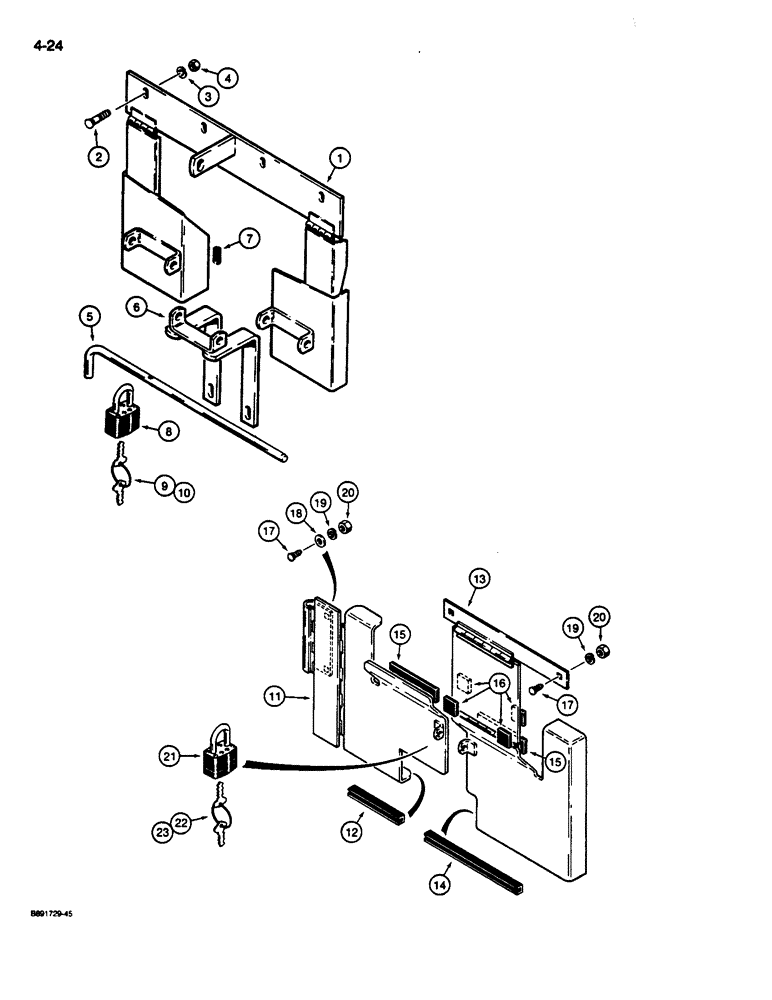

Запчасти Case 680L (4-24) - OPTIONAL INSTRUMENT PANEL ANTIVANDALISM COVERS (04) - ELECTRICAL SYSTEMS

1

L106333

COVER ASSY

COVER - instrument panel, anti-vandalism

1шт.

2

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

L106334

HANDLE

- instrument panel cover, anti-vandalism

1шт.

6

L106905

BRACKET

- instrument panel cover lock, uses existing steering column clamp hardware

1шт.

7

D36180

LINING

TRIM - edge, 2-1/4" (57 mm) long, cut to required length from D52812, see below

2шт.

8

D93753

PADLOCK

- Includes: Ref. 9 and 10 keys

1шт.

9

R29555

KEY

- for Master padlock only

2шт.

10

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

11

D144995

COVER

- instrument panel, left-hand, anti-vandalism

1шт.

12

D83237

MOLDING

TRIM - edge, 4-5/16", left-hand cover

1шт.

13

D143861

COVER ASSY

COVER - instrument panel, right-hand, anti-vandalism

1шт.

14

H434709

TERMINAL STRIP

TRIM - edge, 7-7/8", right-hand cover

1шт.

15

D66072

SEALING STRIP

- seal, 4", insulation

2шт.

16

D83236

PAD

- 1" square, insulation

4шт.

17

111-135

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - carriage, 1/4 NC x 3/4 inch

4шт.

18

495-21031

WASHER,1/4"

- flat, 1/4 inch

2шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

21

D93753

PADLOCK

- Includes: Ref. 22 and 23 keys

1шт.

22

R29555

KEY

- for Master padlock only

2шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long, bulk

1шт.
