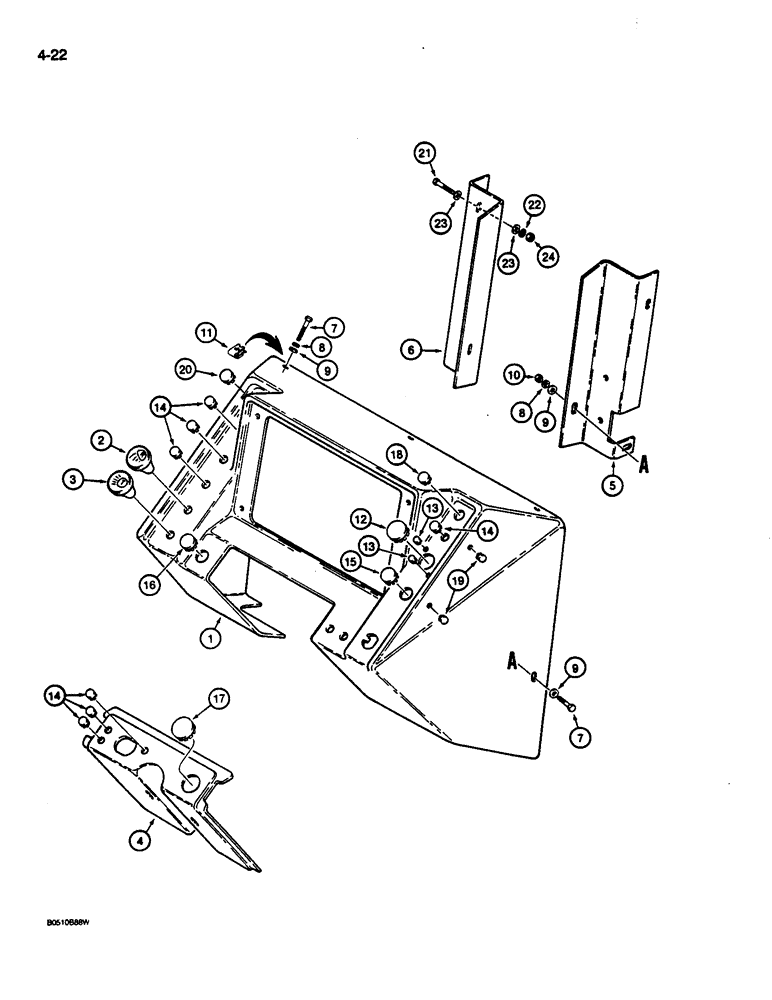

Запчасти Case 680L (4-22) - INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D123199

PANEL

- instrument, tractor

1шт.

2

D70448

KNOB

- switch, flood lamp

1шт.

3

D70446

KNOB

- switch, lamp

1шт.

4

D123198

PANEL, INSTRUMENTS

BRACKET - instrument panel

1шт.

5

D143750

BRACKET

- instrument panel mounting, right-hand

1шт.

6

L108800

BRACKET

- instrument panel mounting, left-hand

1шт.

7

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

9

195-102

WASHER,1/4"

- flat, , plated 1/4"

7шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

11

131-630

SPRING NUT,Tinn, U, 1/4"-20

- U-type, 1/4"-20 NC

3шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

13

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

14

353-402

PLUG,Dome, .375" hole, Nylon

7шт.

15

353-408

PLUG,Dome, .750" hole, Nylon

- nylon, 3/4"

1шт.

16

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16"

1шт.

17

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/32"

1шт.

18

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

19

353-401

PLUG,Dome, .312" hole, Nylon

- nylon, 5/16", both sides

4шт.

20

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

8шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
