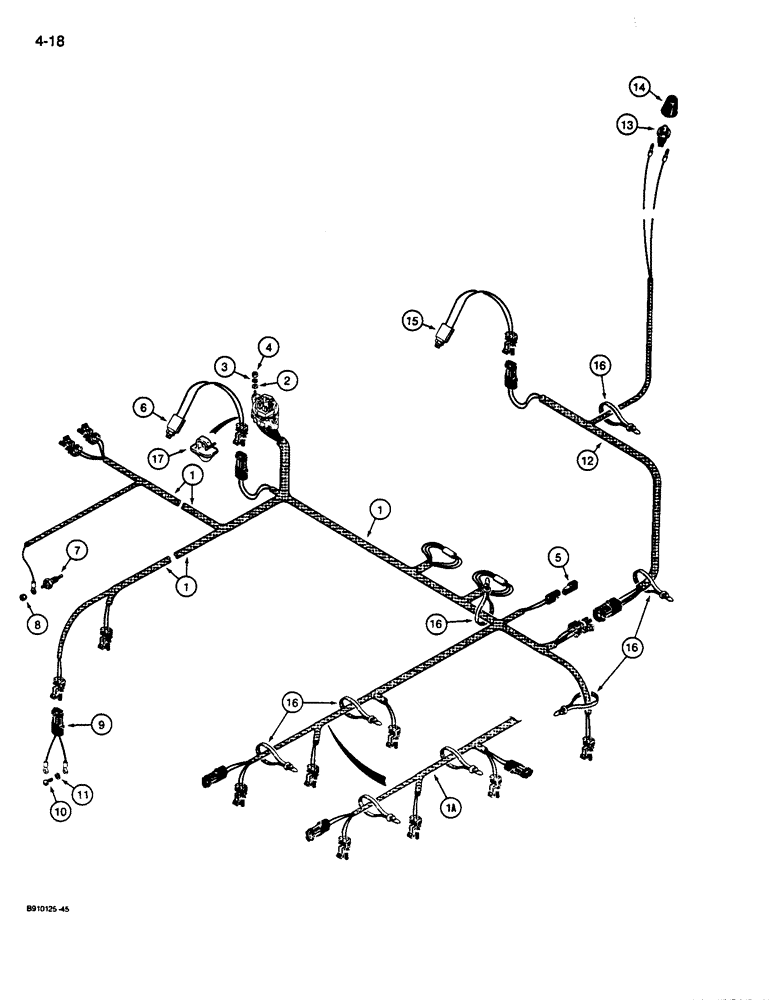

Запчасти Case 680L (4-18) - ELECTRICAL CIRCUIT, REAR HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D143689

HARNESS

- rear, no longer available, order item 1A, D147730 harness

1шт.

1a

D147730

HARNESS

- rear

1шт.

This harness includes a connector for the four wheel drive engagement/disengagement solenoid valve. This connection is not used on models prior to P.I.N. JJG0070953.

1шт.

2

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

5

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

1шт.

6

L116711

SWITCH

- clutch pressure, attaches to tee, item 2 on Figure 6-56

1шт.

7

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - converter oil temperature

1шт.

8

193-1000

NUT,Keps, w/LW,#10-32

- with lock washer, No. 10-32 NF, plated

1шт.

9

D139175

HARNESS

WIRE - rear harness to neutral start switch

1шт.

10

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- machine, pan head slotted, No. 8-32 NC x 1/4", replaces existing studs on neutral start switch

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

12

D143690

HARNESS

- park brake and declutch, attaches to rear harness

1шт.

13

D141486

SWITCH

- hydraulic declutch Verbiage

1шт.

14

D138252

BOOT

- switch

1шт.

15

L116711

SWITCH

- park brake, attaches to tee, item 12 on Figure 7-12

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

17

L100659

CLIP

- clutch pressure switch

1шт.
