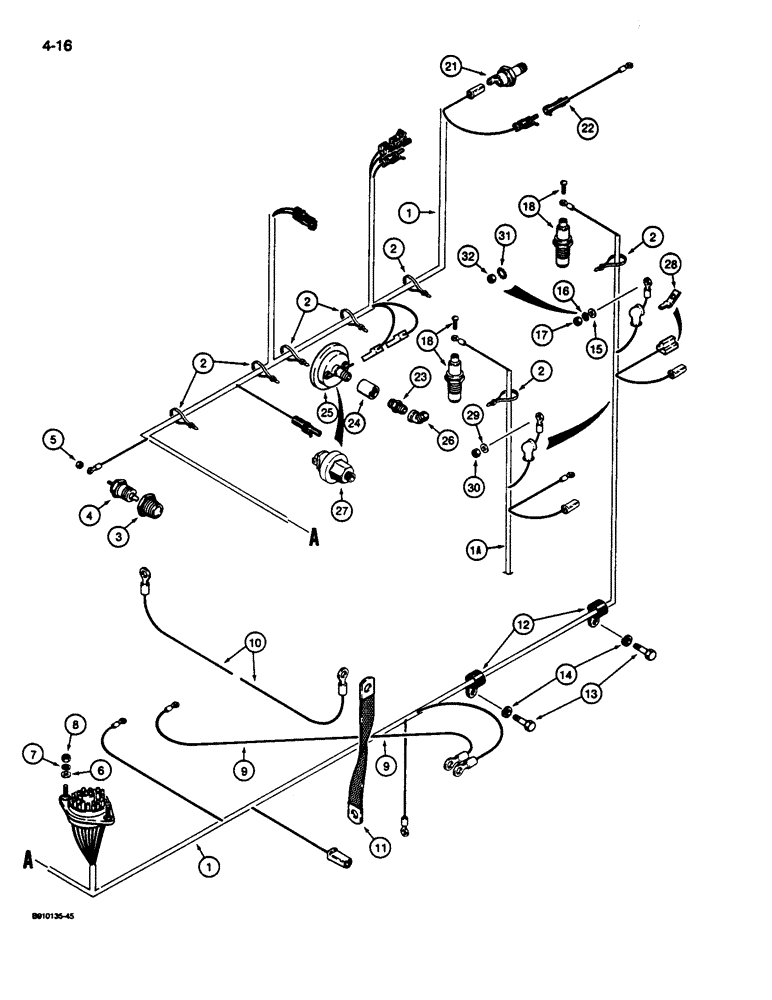

Запчасти Case 680L (4-16) - ELECTRICAL CIRCUIT, FRONT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D145591

HARNESS

- front, has contact lock-type connector to connect to alternator D+ terminal

1шт.

1a

D148447

HARNESS

- front, has eyelet connector to connect to alternator D+ terminal

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

3

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" x 1/2" NPT, water temperature sender

1шт.

4

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - water temperature

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

- with lock washer, No. 10-32 NF, plated

1шт.

6

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

9

D137651

CABLE

WIRE - battery circuit, Serial Range: breaker-starter

1шт.

10

D137670

CABLE

WIRE - ground

1шт.

11

D127018

STRAP

- ground

1шт.

12

49836

CLAMP

- harness

2шт.

13

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex head, 12 mm-1.75 x 25 mm, plated

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, A186125 alternator

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , A186125 alternator 1/4"

1шт.

17

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm-1, plated, A186125 alternator

1шт.

18

L107257

SWITCH

SENDER - temperature

1шт.

21

A162297

SWITCH

SENDER - engine oil pressure

1шт.

22

D138756

ELECTRICAL WIRE

WIRE - fuel shutoff

1шт.

23

D36264

FITTING

- filter, air restriction indicator, if used

1шт.

24

221-1335

COUPLING,Pipe, 1/8" NPT

if used Pipe, 1/8" NPT

1шт.

25

L103131

INDICATOR

SENDER - air filter restriction indicator, if used

1шт.

26

221-365

ELBOW,45 Degree, 1/8" NPT

- 45 degree, at air cleaner

1шт.

27

1983233C1

RESTRICTION SWITCH

SENDER - air filter restriction indicator switch, replaces items 23, 24, and 25 shown above

1шт.

28

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - blade, alternator, if used, use with A187873 alternator on models with D145591 harness

1шт.

29

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), A187873 alternator Int Tooth, #10

1шт.

30

825-1105

NUT,M5, Cl 8

- hex, 5 mm-.8, A187873 alternator

1шт.

31

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - external tooth lock, 5/16 inch, A187873 alternator

1шт.

32

825-1108

NUT,Hex, M8, Cl 8

A187873 alternator Hex, M8, Cl 8

1шт.
